The Evaluation Framework is a set of open source software libraries and tools in C# , implemented in .NET, and Python for efficiently evaluating simulation models of mechatronic systems, in particular by using the game engine Unity as simulation environment, and visualizing the evaluation results in an interactive GUI.

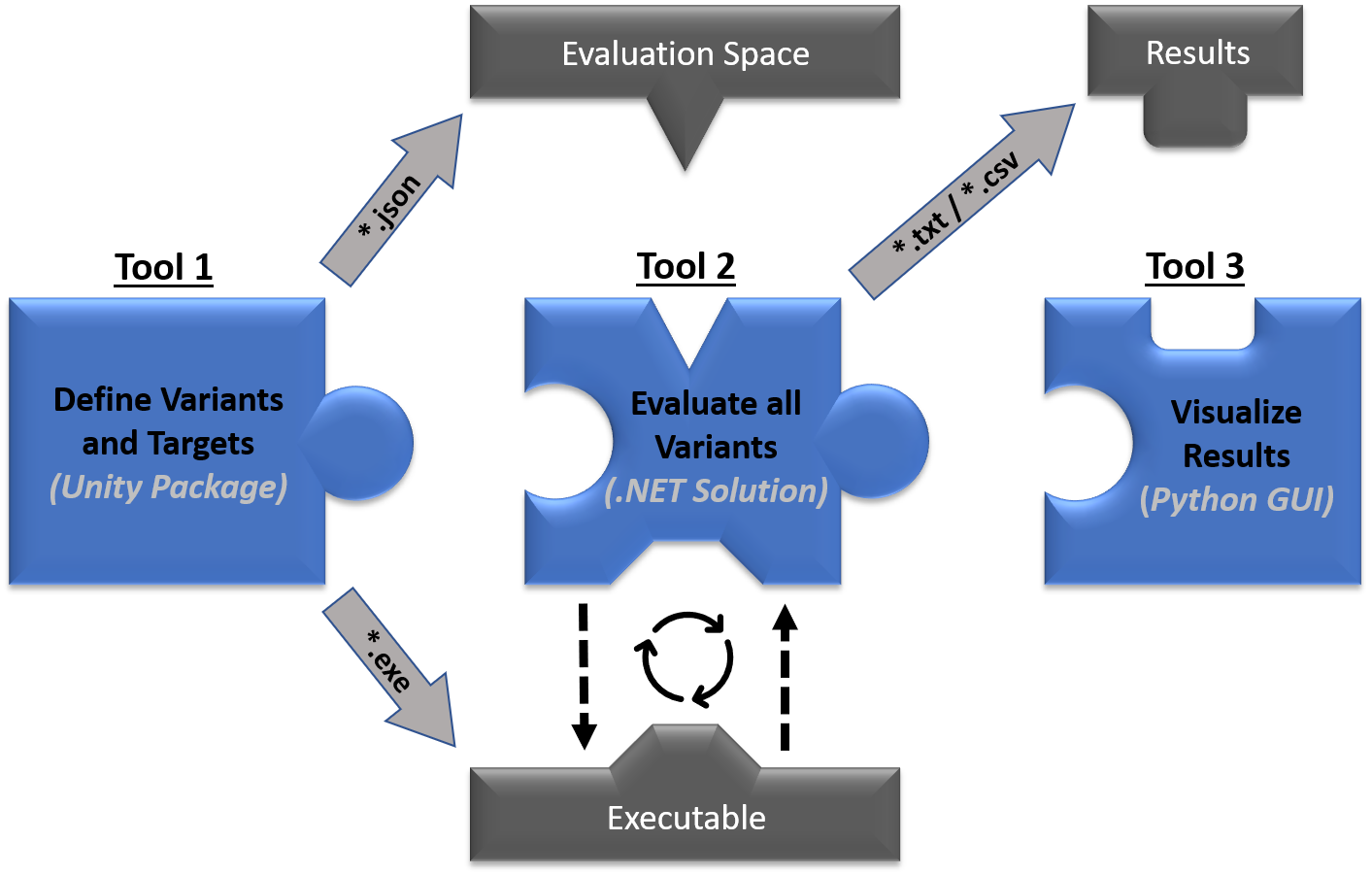

This project consists of 3 tools to evaluate many variants of (Unity) simulations and visualize the results. The tools can be used independently, or in a sequence.
Tool 1: Define Variants and Targets in Unity
- Include EvaluationFrameworkUnity into the Asset folder of your Unity project.
- Define the parameters you want to vary and the target values you want to evaluate.
- Generate the resulting
.jsonfiles and compile your Unity project as a standalone
Tool 2: Evaluate all Variants
Execute the C# console application EvaluationFramework to evaluate all variants.
Tool 3: Visualize the Results

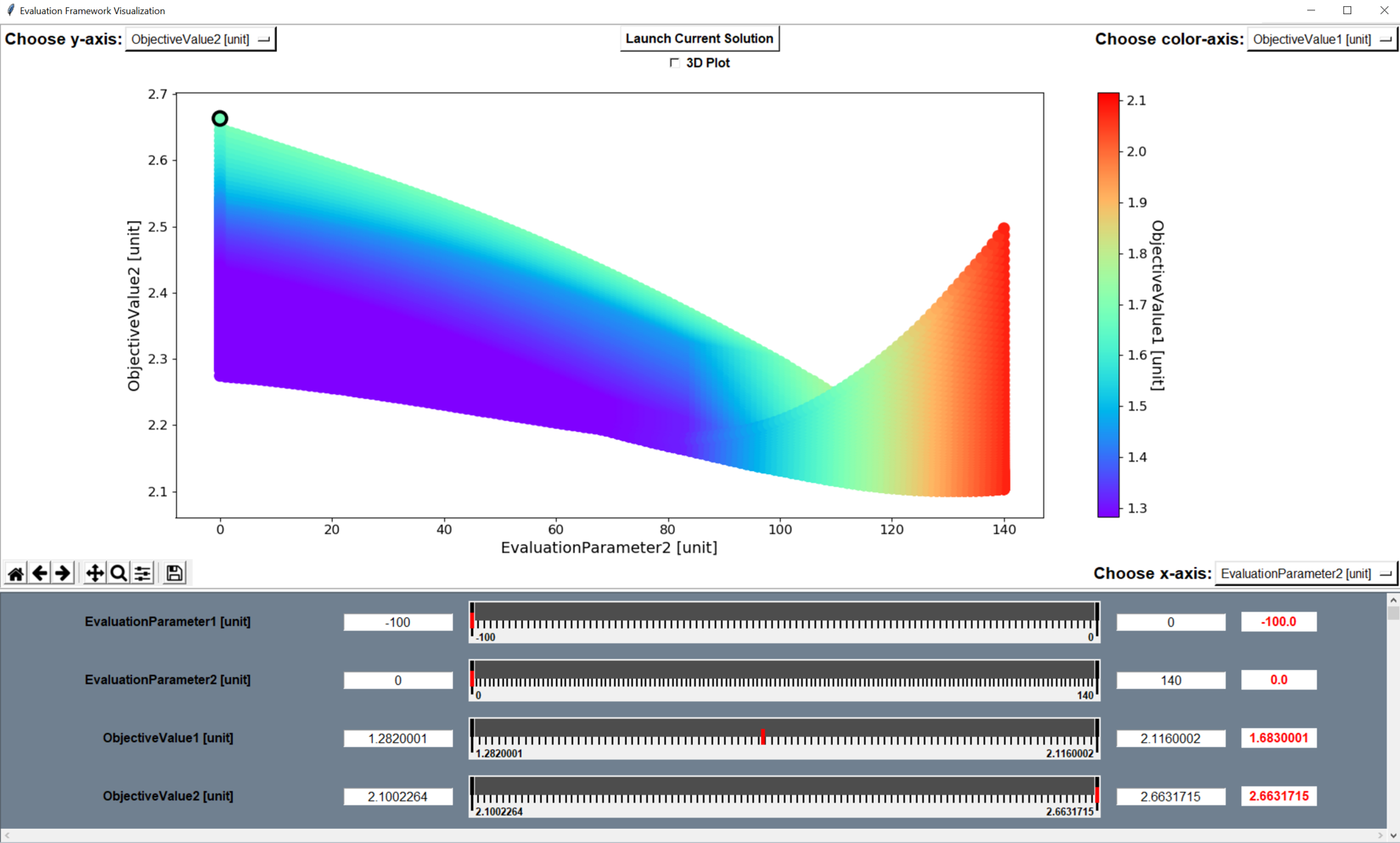

Visualize the evaluation results in a special UI using the python application VisualizationGUI.
- Unity3D: Source code of the Evaluation Framework connected to the game engine Unity (Tool 1)
- EvaluationFramework: .NET solution of the Evaluation Framework (Tool 2)
- EvaluationFrameworkROS: .NET solution of the Evaluation Framework with the extension of communicating with a ROS system via ROS# (Tool 2)
- VisualizationGUI: Python code of the GUI visualizing the evaluation results (Tool 3)
Here is an application example illustrating what can be done with the Evaluation Framework.
Each release contains:
EvaluationFrameworkUnity.zip: Zip file containing the Unity package EvaluationFrameworkUnity (Tool 1).
EvaluationFrameworkROSUnity.zip: Zip file containing the Unity package EvaluationFrameworkROSUnity (Tool 1).
EvaluationFramework.zip: Zipped binaries, i.e. the build of EvaluationFramework (Tool 2)
EvaluationFrameworkROS.zip: Zipped binaries, i.e. the build of EvaluationFrameworkROS (Tool 2)
VisualizationGUI.zip: Zip file containing the VisualizationGUI python application (Tool 3)
