NodeGraphProcessor

Node graph editor framework focused on data processing using Unity UIElements, GraphView and C# 4.7

Codacy Badge openupm

This node based solution provides a great C# API allowing you to implement conditional graphs, dependencies graphs, processing graphs and more.

Based on Unity’s GraphView technology, NodeGraphProcessor is also very fast and works well with large graphs.

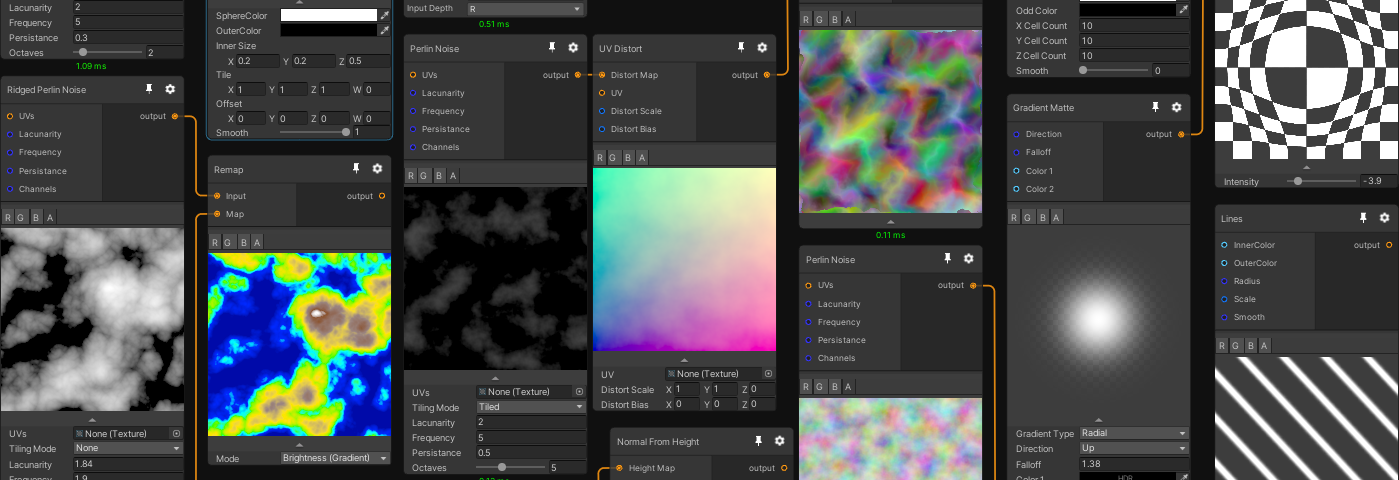

Performance

Simple and powerful C# node API to create new nodes and custom views.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using GraphProcessor;
using System.Linq;

[System.Serializable, NodeMenuItem("Operations/Sub")] // Add the node in the node creation context menu
public class SubNode : BaseNode
{
    [Input(name = "A")]
    public float                inputA;
    [Input(name = "B")]
    public float                inputB;

    [Output(name = "Out")]
    public float				output;

    public override string		name => "Sub";

    // Called when the graph is process, process inputs and assign the result in output.
    protected override void Process()
    {
        output = inputA - inputB;
    }
}

Unity Compatible versions

This project requires at least Unity 2019.3 with a scripting runtime version of 4.x in player settings. The current Unity version used for the project is 2019.3.12f1

Installation

Install Manually

There are two ways to install this asset: you can use the Unity package manager or move the entire repo inside your Assets folder. To install using the package manager:

  • download this repo
  • inside the package manager click the ‘+’ button at the bottom to add a package from disk
  • then select the package.json file located in Assets/NodeGraphProcessor
  • package is installed 😃

Install via OpenUPM

The package is available on the openupm registry. It’s recommended to install it via openupm-cli.

openupm add com.alelievr.node-graph-processor

Install via Git

Alternatively, you can use the git address feature in the package manager on the branch #upm, it only contains the package but it may be out of sync compared to master.

Note that you’ll not have access to the examples provided in this repo because the package only include the core of NodeGraphProcessor.

Features

  • Node and Graph property serialization (as json)
  • Scriptable Object to store graph as a Unity asset.
  • Highly customizable and simple node and links API
  • Support multi-input into a container (multiple float into a list of float for example)
  • Graph processor which execute node’s logic with a dependency order
  • Documented C# API to add new nodes / graphs
  • Exposed parameters that can be set per-asset to customize the graph processing from scripts or the inspector
  • Parameter set mode, you can now output data from thegraph using exposed parameters. Their values will be updated when the graph is processed
  • Search window to create new nodes
  • Colored groups
  • Node messages (small message with it’s icon beside the node)
  • Stack Nodes
  • Relay nodes
  • Display additional settings in the inspector
  • Node creation menu on edge drop
  • Simplified edge connection compared to default GraphView (ShaderGraph and VFX Graph)
  • Multiple graph window workflow (copy/paste)

More details are available in the Changelog

Documentation

API doc is available here: alelievr.github.io/NodeGraphProcessor

The user manual is hosted using Github Wiki.

Remaining to do

  • Investigate for ECS/Jobs integration
  • API to create the graph in C#
  • Subgraphs
  • Use SerializedReference instead of Json (faster serialization + smaller assets)

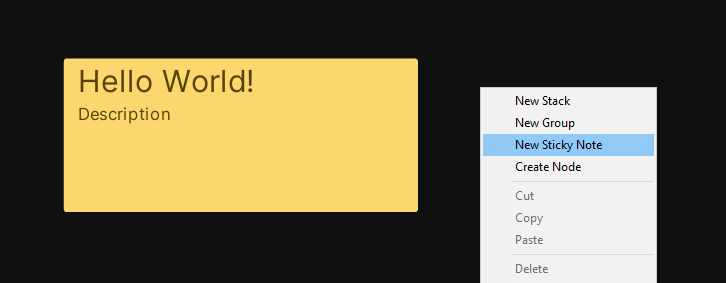

  • Sticky notes (requires Unity 2020.1)

For more details consult our Github Project page.

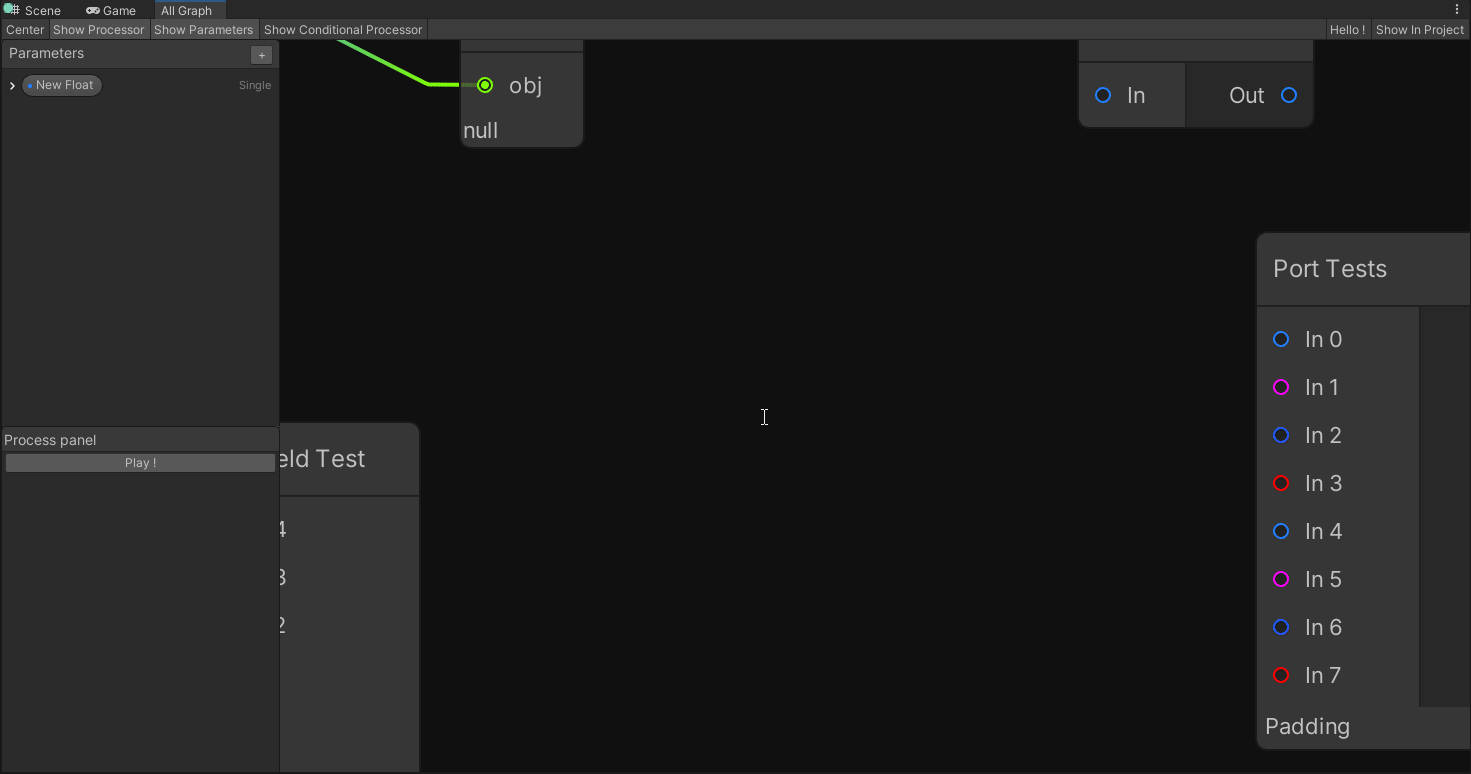

Minimap

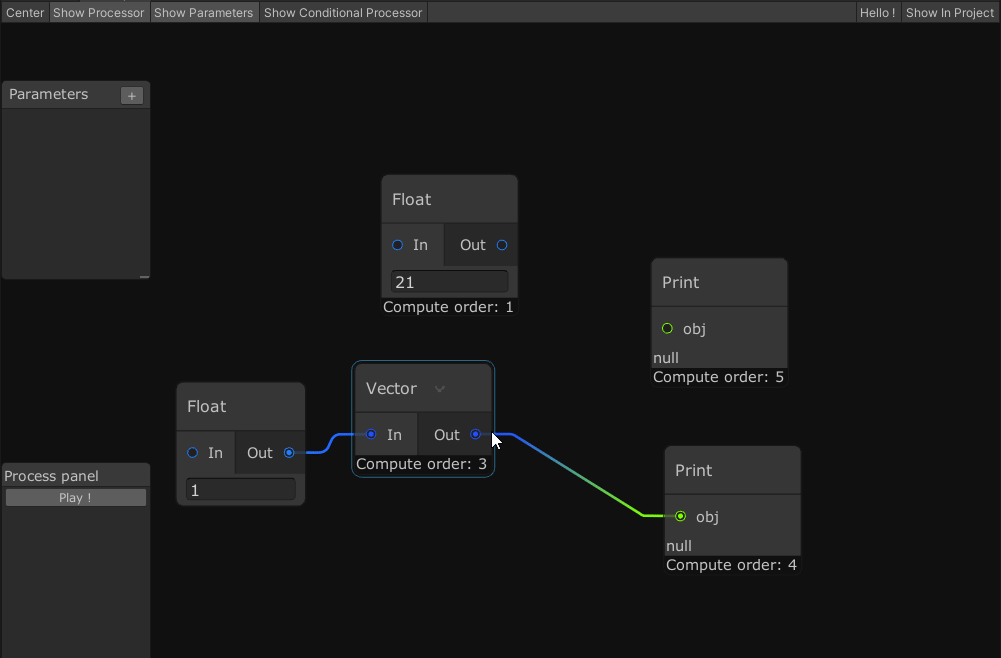

Relay nodes

Node connection menu

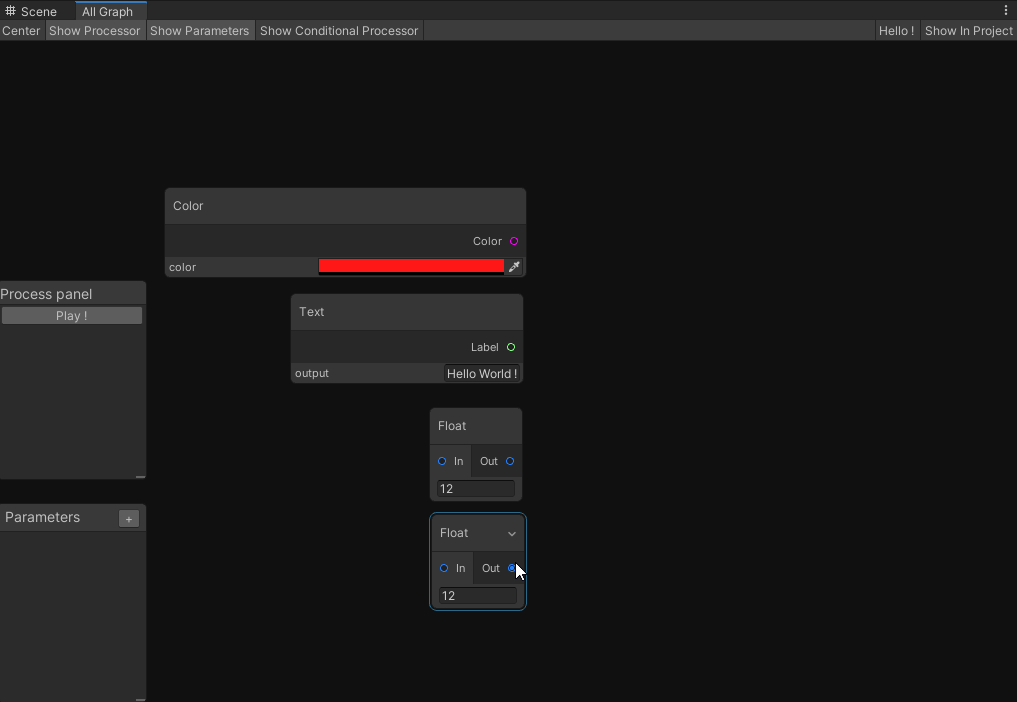

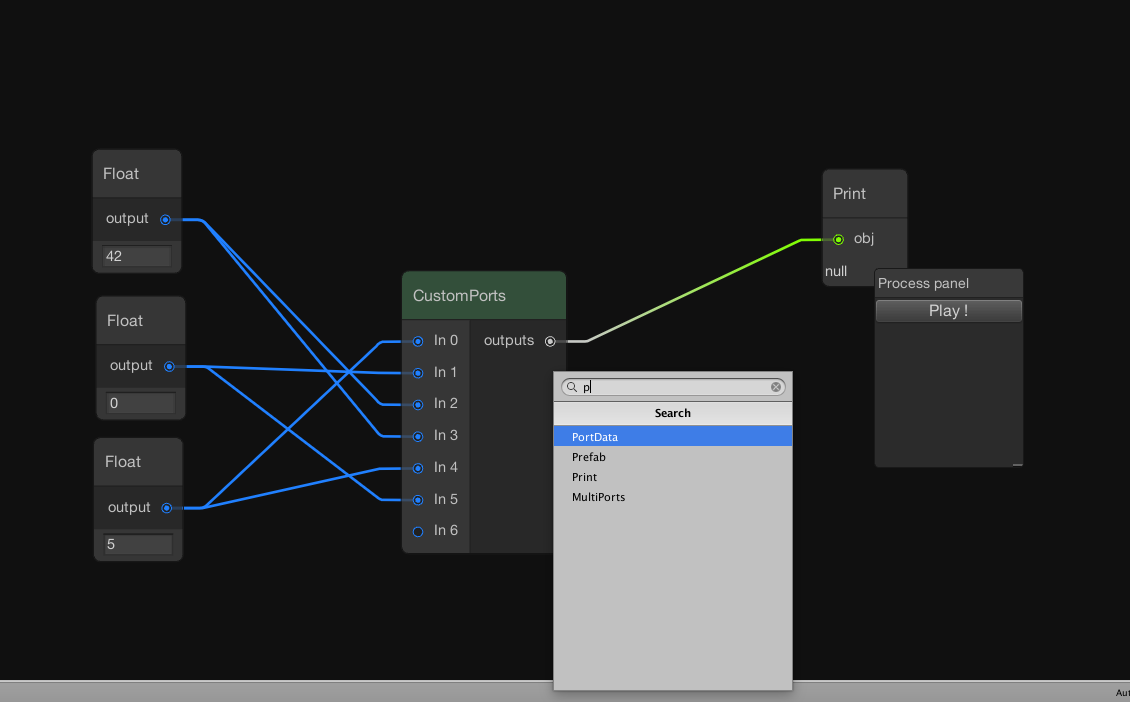

Node creation menu

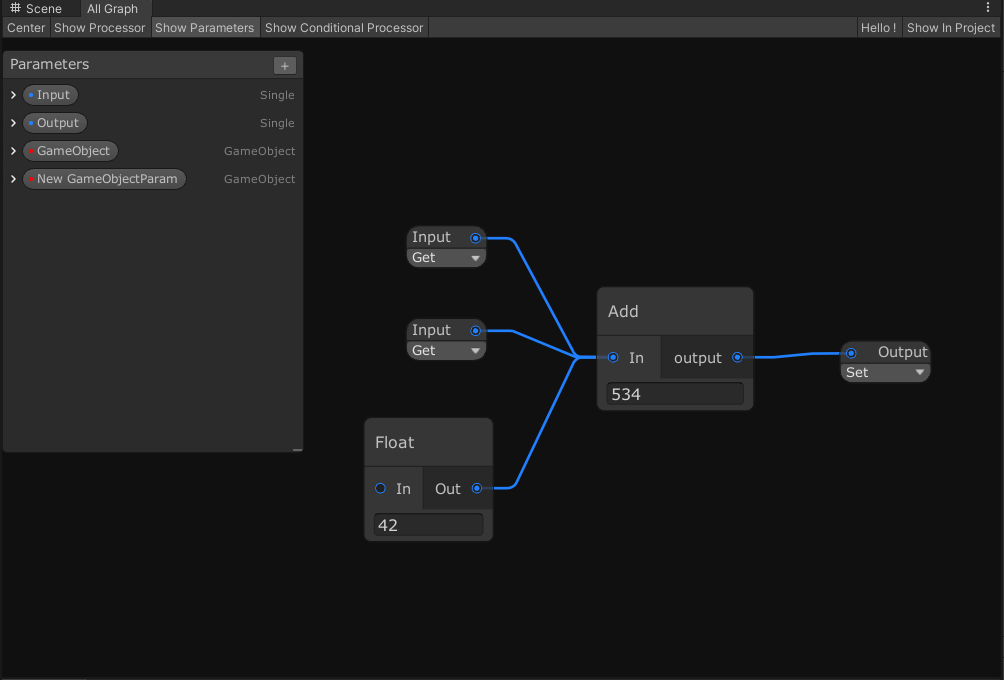

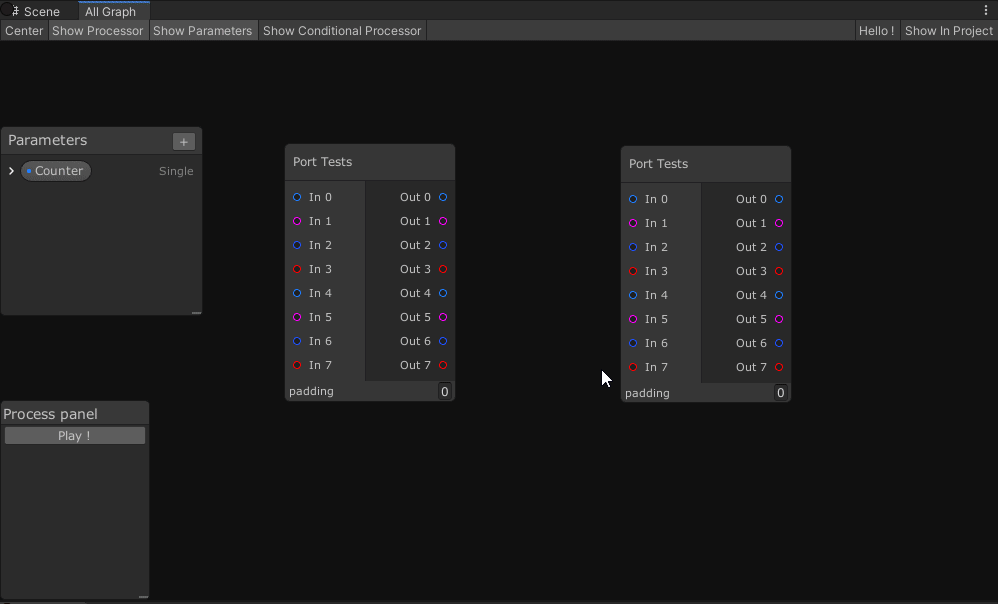

Graph Parameters

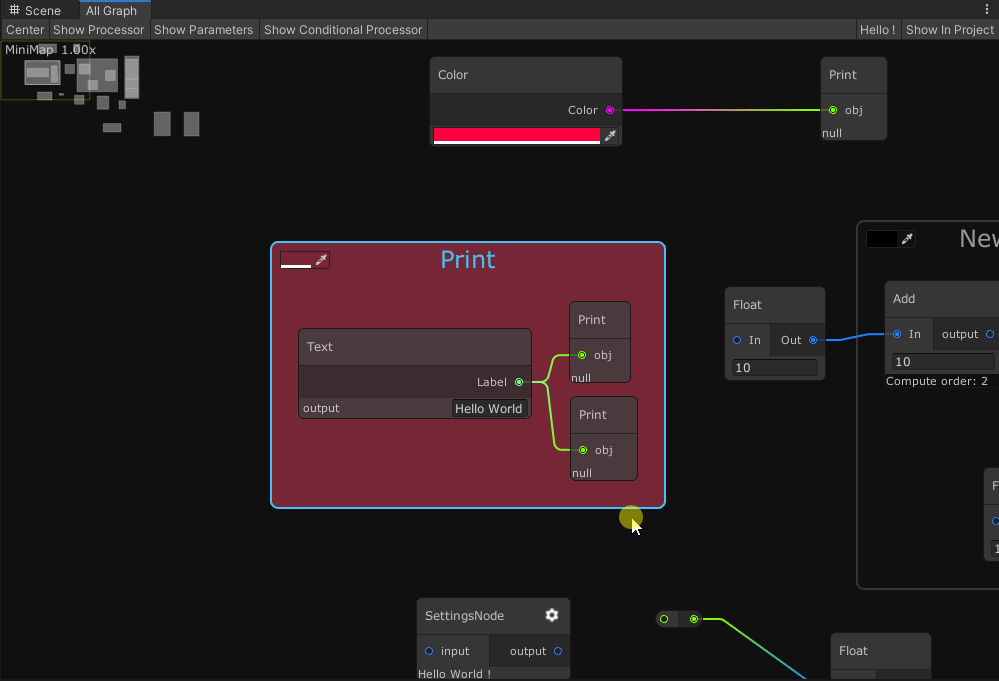

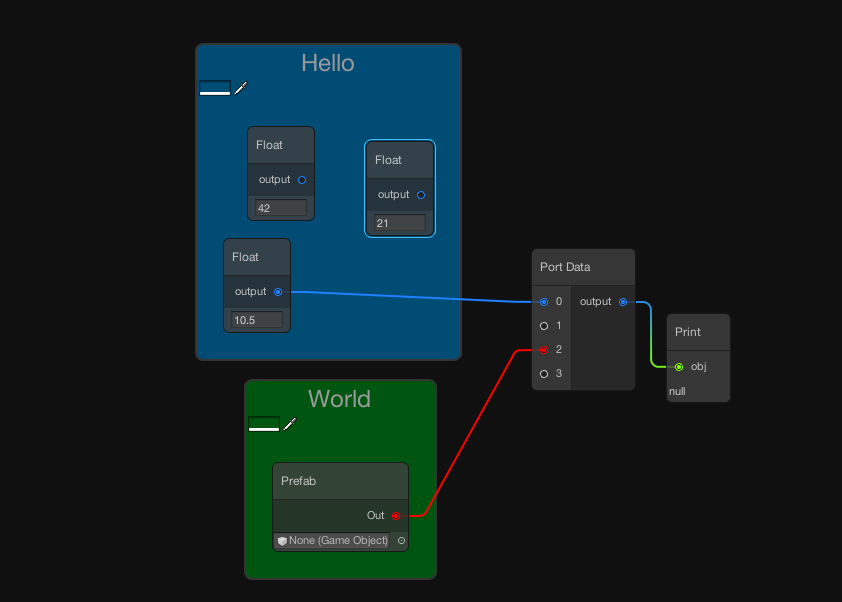

Groups

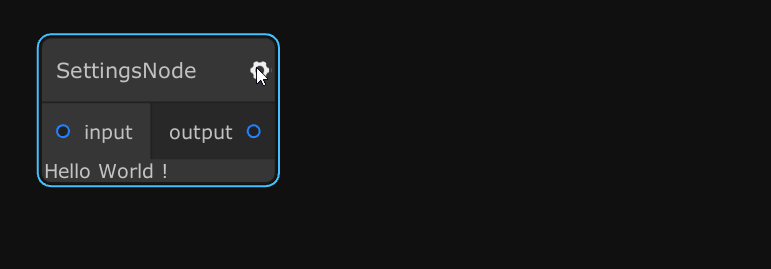

Node Settings

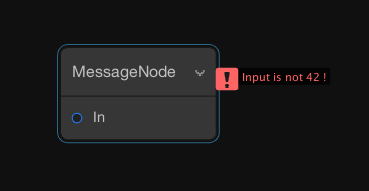

Node Messages

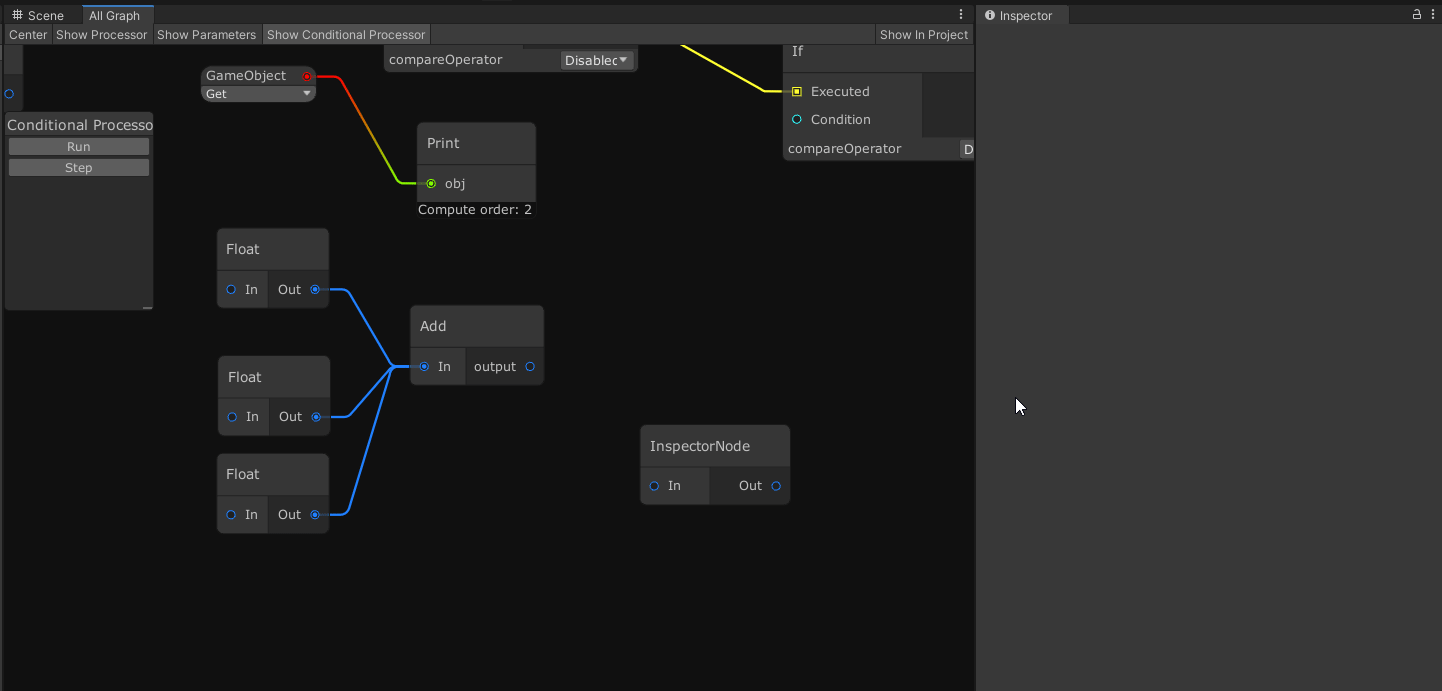

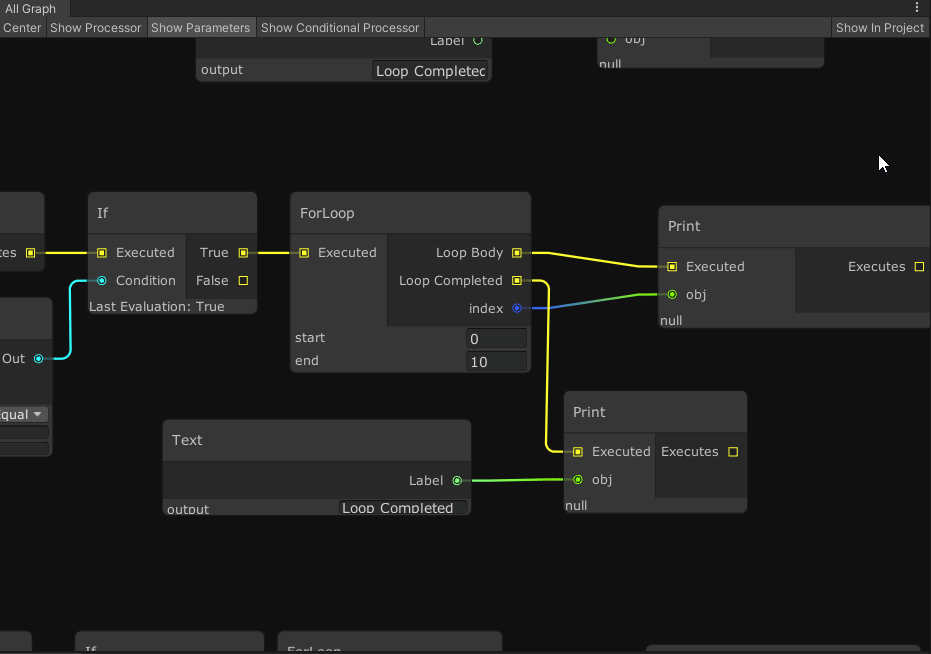

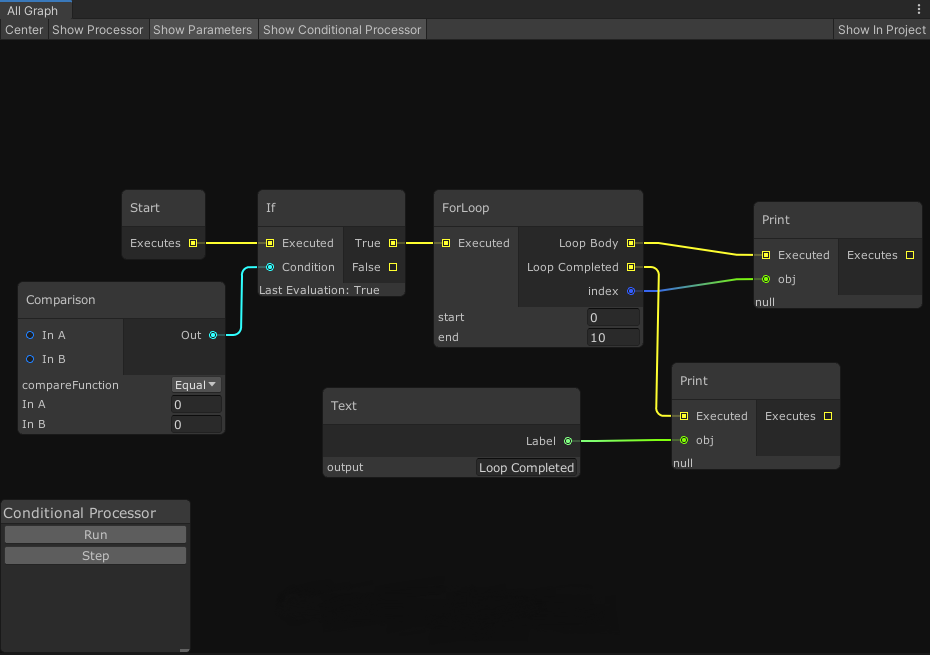

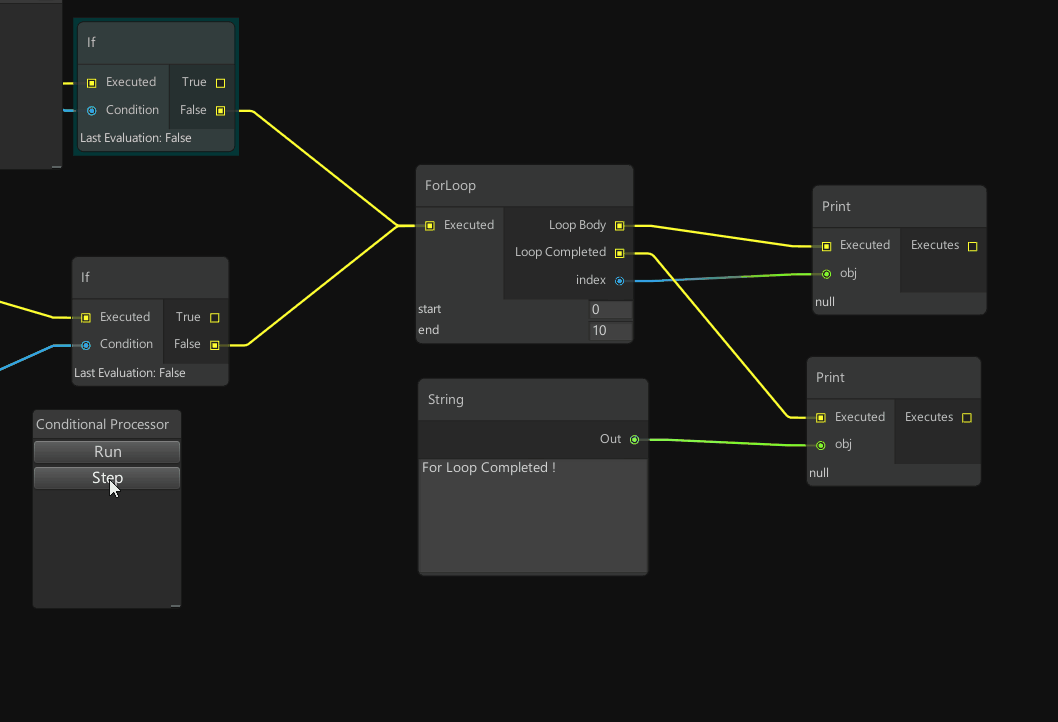

Conditional Processing (in Example)

Stacks

Relay Node Packing

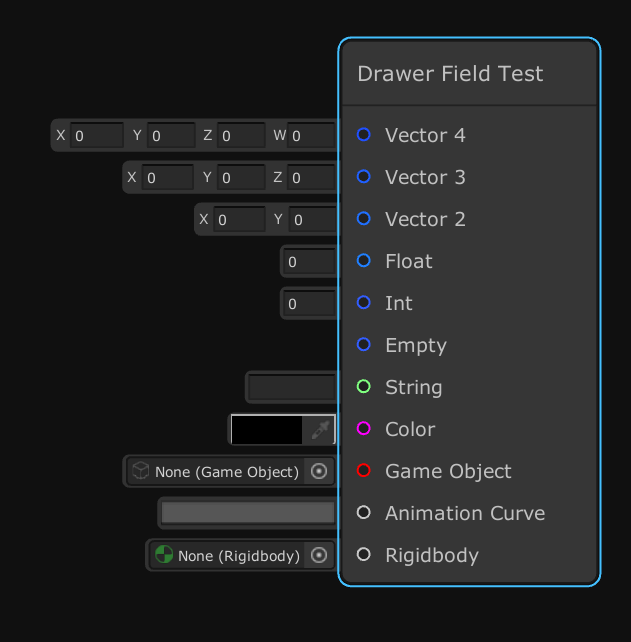

Node Inspector

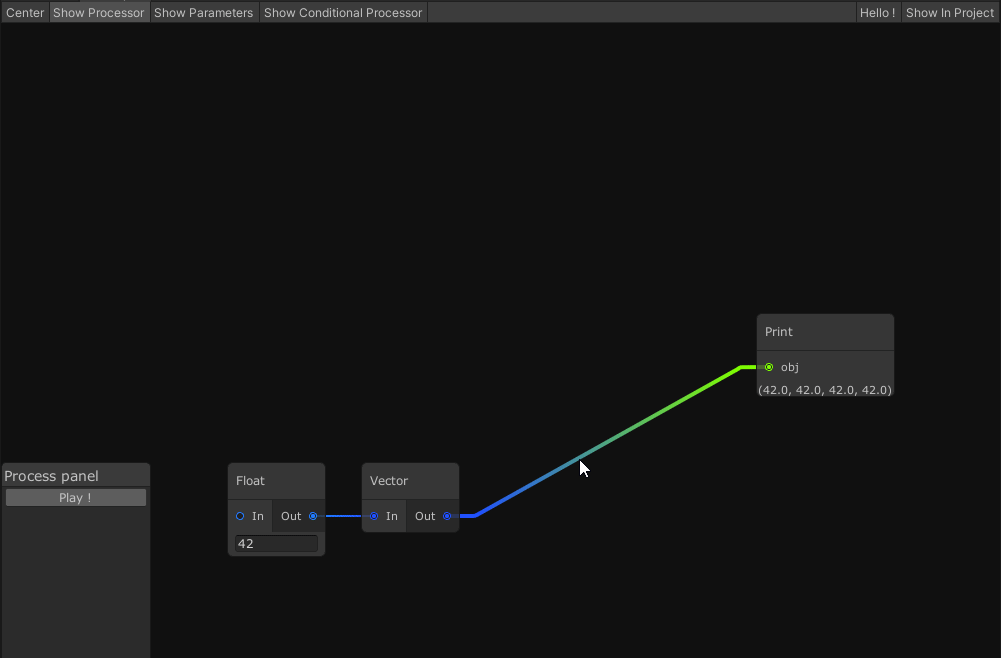

Improved Edge Connection

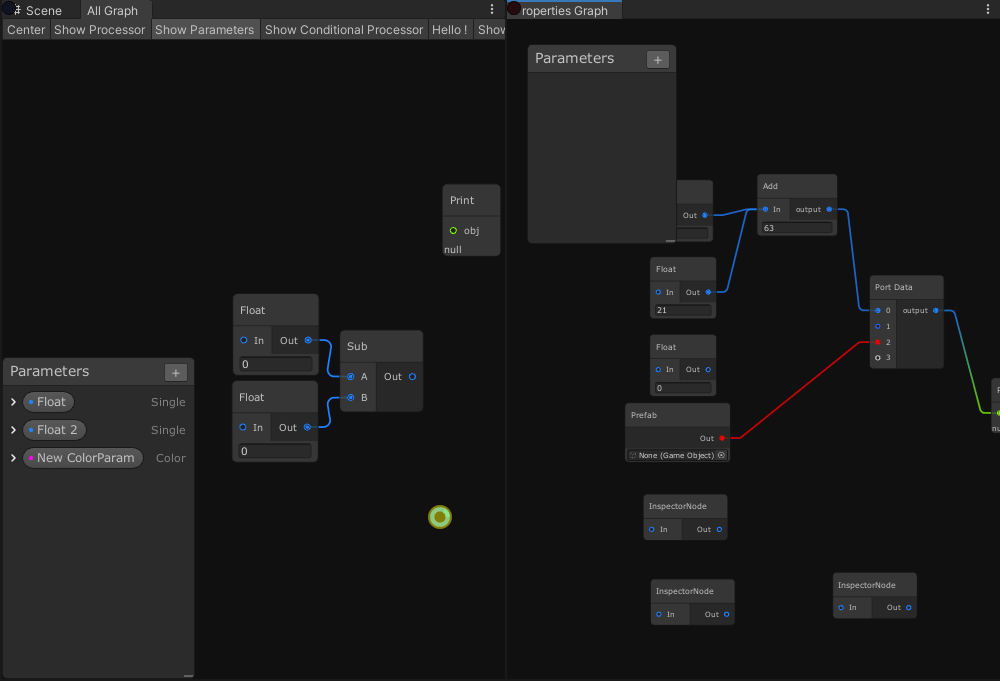

Multi-Window support
