LibPd Unity Integration

About

LibPdIntegration is a wrapper for libpd developed at Abertay University for incorporating Pure Data patches into Unity. It currently supports Windows, OSX, Linux, and iOS (iOS support courtesy thefuntastic).

Unique Features

LibPdIntegration offers a couple of features which set it apart from existing implementations of libpd for Unity:

  • It works with recent versions of Unity (at the time of writing, it’s been tested on 2018.4 LTS, 2019.4 LTS, 2020.3 LTS and 2021.1, though it should work on older versions too).
  • It supports multiple instances. This was impossible with previous implementations, as libpd itself did not support running multiple patches side by side. The libpd developers have recently removed that limitation however, meaning LibPdIntegration can allow developers to run multiple Pd patches in their Unity projects. This also means it’s now feasible to build a 3D scene in Unity with multiple Pd patches all spatialised using Unity’s audio code.

Quickstart

This repository contains everything you need to incorporate Pd patches into your Unity project. First download it from the releases page, then copy the contents of the Assets folder into your project’s Assets folder. LibPdIntegration provides native libpd binaries for supported platforms in the Plugins subfolder, and a single C# script, LibPdInstance.cs in the Scripts subfolder.

PD patches should be placed in the StreamingAssets/PdAssets folder (you can create your own subfolders within).

To associate a Pd patch with a Unity GameObject, you need to add a single Lib Pd Instance Component to the GameObject. Doing this will also add an Audio Source Component; this is necessary because Unity does not process audio for GameObjects without an Audio Source.

Lib Pd Instance is our wrapper for libpd. To associate a Pd patch with it, drag the patch from your StreamingAssets/PdAssets folder to the Patch selector in the Inspector.

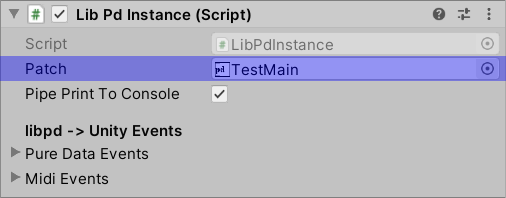

LibPdInstance Inspector Patch Selector

Note that the order of Components matters. Audio Source must come before Lib Pd Instance.

The Pipe Print To Console toggle provided by Lib Pd Instance lets you pipe any print messages sent by your Pd patch to Unity’s console for debugging purposes. Note that due to a limitation with libpd, this toggle is global. i.e. if you activate it for one Lib Pd Instance, it will be active for all Lib Pd Instances.

See the sister project LibPdIntegrationExamples and the wiki for more information, including how to communicate between Unity and libpd. And there’s also Yann Seznec’s excellent introductory videos on youtube.

Note: If building for mac, Unity may complain about conflicting versions of libpd. This is because Unity mistakenly assumes the 64-bit Linux lipbd binary is actually a mac binary. To rectify the issue, select the 64-bit linux binary (Assets/Plugins/x64/libpd.so) and uncheck the Mac OS X x64 toggle in the Inspector to match the following image, then click Apply:

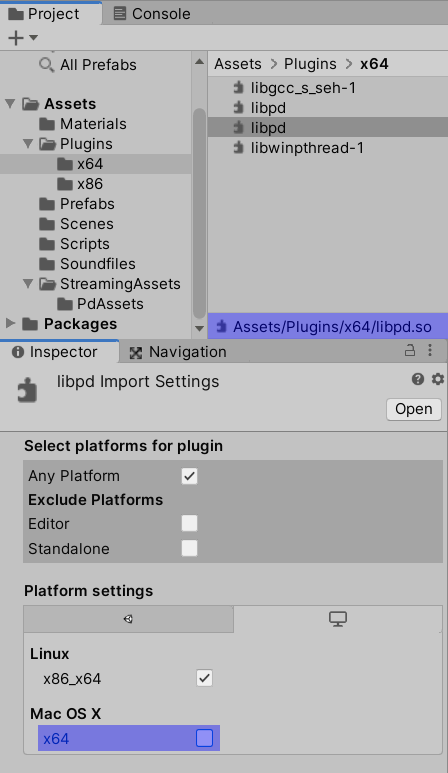

Correct Inspector settings for the 64-bit libpd Linux binary

Spatialisation

Spatialisation of Pure Data patches in Unity is a little convoluted. The following describes a method that does not require any external frameworks, but do check out the Spatialisation page on the wiki if you happen to be using an external audio framework like Steam Audio. The process is a bit more straightforward in that case.

For this method we need to use a special sound file (included in this repository) in our Audio Source, and use an adc~ object in our PD patch to apply the Audio Source spatialisation to the output of our PD patch.

The necessary steps are:

In Unity:

  1. Set the Audio Source’s AudioClip to our SpatialiserFix.wav sound file.

    Audio Source AudioClip set to SpatialiserFix.wav

  2. Ensure the Audio Source is set to Play On Awake and Loop.

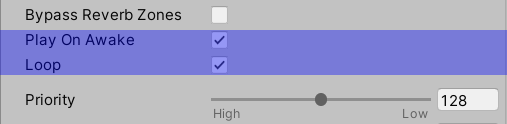

    Audio Source Play On Awake and Loop set to true

  3. Set Spatial Blend to 1(3D).

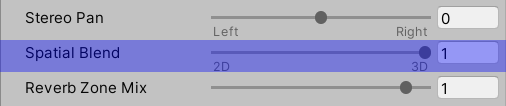

    Audio Source Spatial Blend slider set to 3D

In Pure Data:

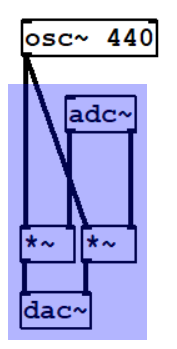

Multiply the output of your patch with the stereo input from an adc~ object, like the section highlighted in blue here: Pure Data adc~ object output

This will effectively apply the spatialisation that Unity applies to Audio Sources by default, to the output of our PD patch. For more information, see the LibPdIntegrationExamples project, and particularly the comments in the FilteredNoise-ADC.pd patch.

Caveats

  • Only Pure Data Vanilla is supported. Additional objects (externals) included with distributions like Purr Data and Pd-Extended (deprecated) do not currently work. See issue 14 for an explanation of why this is; it will hopefully be resolved in a future release.

  • Although libpd provides C# bindings, 1.) I could not get them to play nicely with Unity, and 2.) they don’t (at the time of writing this) support libpd’s new multiple instance system. As such, LibPdIntegration interfaces directly with the libpd C library. This may change if libpd’s C# bindings get updated in the future, but they should be functionally identical to the C library anyway, so I’m not sure it’s necessary.

  • readsf~ does not work. This is due to a bug in pure data. At the time of writing there’s a pull request that should fix it; once that’s been approved I’ll try and get new libpd binaries built (anyone who can contribute OSX, Linux and/or iOS binaries please let me know!).

    In the meantime, you can work around the problem by using soundfiler instead of readsf~.

Future Plans

  • Support for more platforms. As libpd itself is provided as a native binary, it needs to be compiled for each platform you plan to deploy to.

    • Related to this, move to a fat macOS libpd library including both intel and ARM binaries. It seems apple have seamless intel emulation running under the hood, so this is not an immediate priority, but it will need done at some point.
  • Expand the example project.

  • Gallery of projects using LibPdIntegration?

Help Wanted

As mentioned above, libpd has to be built separately for every platform you want to deploy to. As the sole maintainer I (Niall Moody) currently only have access to a Windows machine, and have to rely on contributions from other people in order to support other platforms.

One thing I would like to do is set up a schedule for updating the repo’s libpd binaries to better track libpd/pure data’s own release schedules. In order to do that though, I’ll need other people to step up and maintain the non-Windows platforms. This should be a straightforward process of just building the latest libpd every 6 months or so.

If you’re interested and available, please get in touch.

Pure Data Resources

Credits

LibPdIntegration is developed by Niall Moody at Abertay University, with assistance from Yann Seznec. It is licensed under the MIT License.
