Unity Audio Sequencer by Ludomancer - 2


A precise audio sequencer for Unity

Unity 5.3.3f1MIT LicenseUpdated 4 years agoCreated on May 15th, 2015
Go to source


A precise audio sequencer for Unity3d


  • Seamless and Stable Audio Sequencer.
  • Stable even in high metronomes.
  • Ability to change Bpm or Sequence at runtime.
  • Works with Unity3D 5+ since it uses OnAudioFilterRead to access Audio Buffer.



  • Sequencer: Basic and main component that actually plays the audio files.
  • Sequener Group: Manages child sequencers.
  • Sequencer Driver: Manages any list of Sequencer Groups or Sequencers.
  • Sequencer Base: Base class for all of the classes above. Should not be used by itself.



  • Use Sample Prefab provided or open the Sample Scene to see a working example.

Step by Step

  • Import and set your audio files to Decompress on Load.

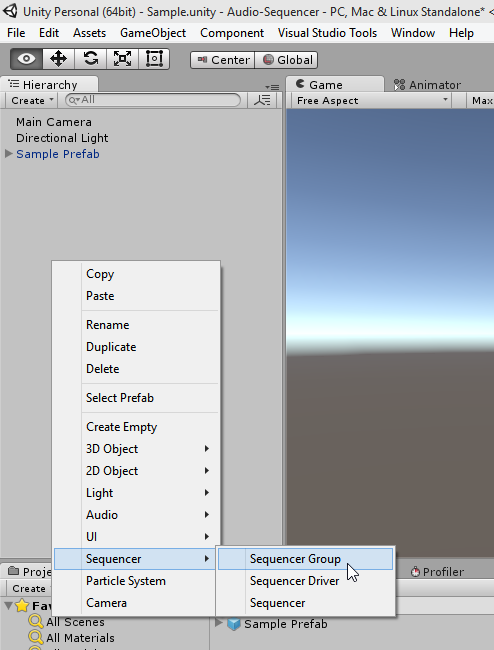

  • Create a Sequencer Group. It will automtically create a Sequencer as child. Create Sequencer Group

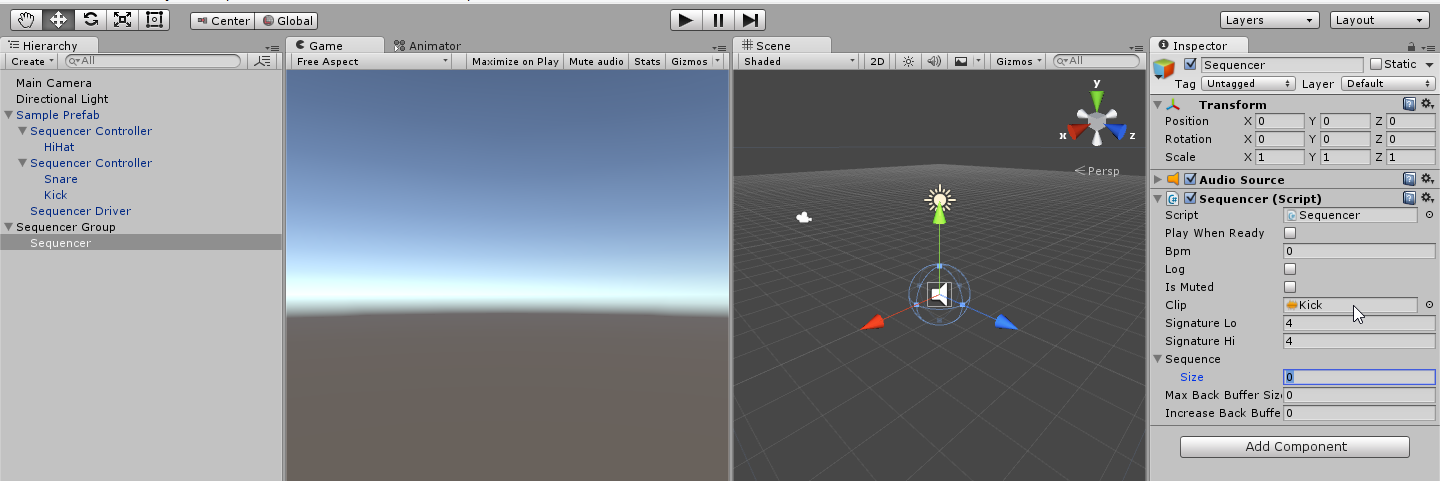

  • Set audio file to Sequencer. Set Audio File
  • Set Bpm of Sequencer Group
    Set Bpm

Alternative Usages

  • Sequencer Driver can be used instead of Sequencer Group but you should manually set which Sequencer or Sequencer Grops it should manage.

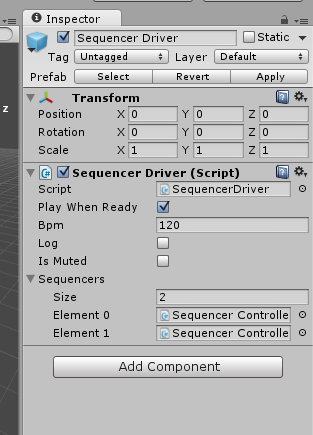

    Sequencer Driver

  • Sequencer can also be used without a Sequncer Group or Sequencer Driver Sequencer Only


  • 0.41
    • Sample now has a seek bar to control start percentage.
  • 0.3
    • CurrentStep and NumberOfSteps added for position tracking.
    • CurrentStep and NumberOfSteps are now included in onAnyStep and onBeat events.
  • 0.2
    • Audio channel support.
    • BackBuffer pooling.
    • Performance improvements.
  • 0.1
    • Initial features set.
