Radial Progress Bar by AdultLink - 5

Shaders & Effects

Customizable radial progress bar shader for Unity3D. Allows you to set arc range, minimum and maximum colors, textures, radius, and a few more things. Create HP Bars, Speedometers, rank progress, etc!

Unity 2017.4.8f1MIT LicenseUpdated 1 year agoCreated on August 25th, 2018
Go to source

RadialProgressBar Follow License Donate Twitter Follow

IntroImage

This shader allows you to create shiny looking radial progress bars that can be used to display information like character HP, loading status, matchmaking rating progress, car speed, etc. The possibilities are endless.

The shader can be edited through Amplify Shader Editor and contributions to the project are always welcome!


Project developed using Unity 2017.4.8f1. Please use this version if you are planning on contributing. You can work on your own branch and send a pull request with your changes.


You can also just download a unitypackage from the releases tab and easily import everything to your project. This will not download the screenshots folder.

Disclaimer: The scripts controlling the behavior of the examples provided are not optimized in any way and should only be taken as quick & dirty examples.

Table of contents

  1. Getting started
  2. Usage & parameters
  3. Examples
  4. Parameters list
  5. Donate
  6. License

Getting started

To get this shader up and running you only need to attach it to a material, and drop that material onto a quad. That’s it, you now have a basic HP Bar!

Best is to check the examples provided to get an idea on how to tweak the different parameters, and to take inspiration from them.

This shader comes in two variants; “standard” (the one that will be described here) and “simple”. The second one is a simplified version of the first one, which does away with many of the settings.

Usage and parameters

General settings

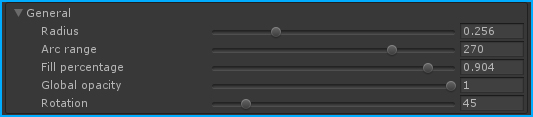

These are settings that affect the whole bar, and they are pretty much self-explanatory. By increasing and decreasing Fill percentage, we control the amount of that bar that is filled. This is the main setting for this shader.

Rotation and Arc range (0-360) allows you to control the starting and ending angles.

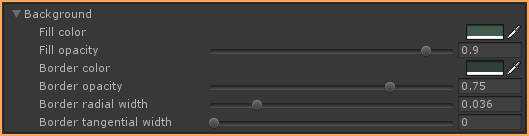

Background settings

“Background” will always be visible regardless of the fill percentage (unless you turn the opacity all the way down to 0, of course).

Here, we can set both the color for the “fill” area of the background, as well as for the border. Additionally, border radial (along the circle) and tangential widths can be set, as well as its opacity.

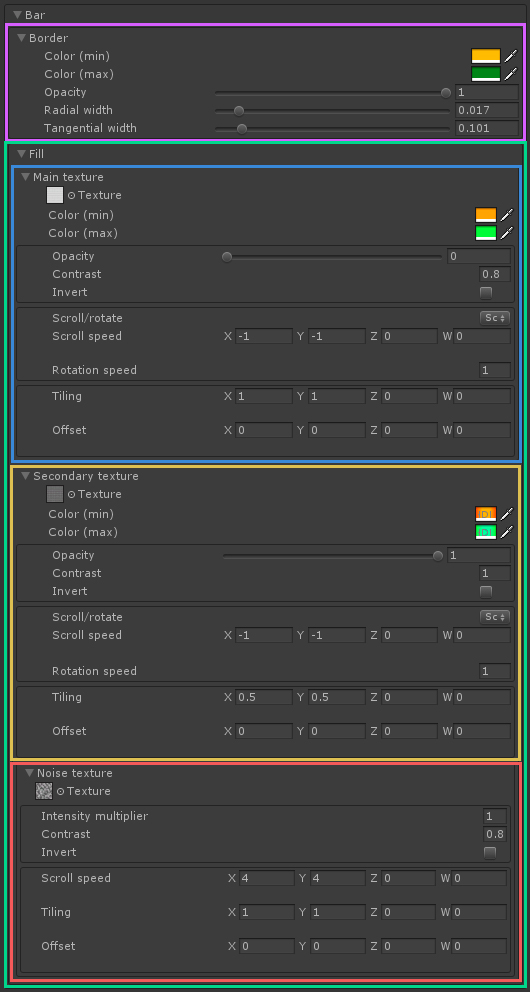

Bar settings

This is the meat of the shader, and it is divided into two sections: Border and Fill. Border settings are very similar to the ones already described for the background, with the caveat that it is possible to specify a Color (min) and a Color (max), so that the bar will lerp between them as is fills up.

Fill settings, on the other hand, are comprised of three more sections: Main texture, Secondary texture and Noise texture.

If you don’t want to use any texture, just leave the slot empty.

They all provide similar parameters to play with, like opacity and contrast, tiling and offset. You can make these textures scroll or rotate (which is quite handy for a radial bar) via a dropdown button. Rotation/scrolling speed is customizable.

Again, bar color will lerp between min and max colors. If you don’t want this to happen, simply give them both the same value.

It is important to note that the noise texture will be MULTIPLIED with the secondary texture, and the result will be ADDED to the main texture. This gives you some room to get creative.

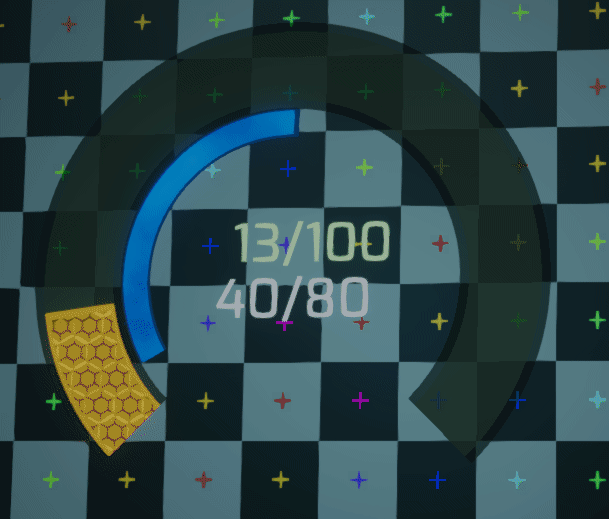

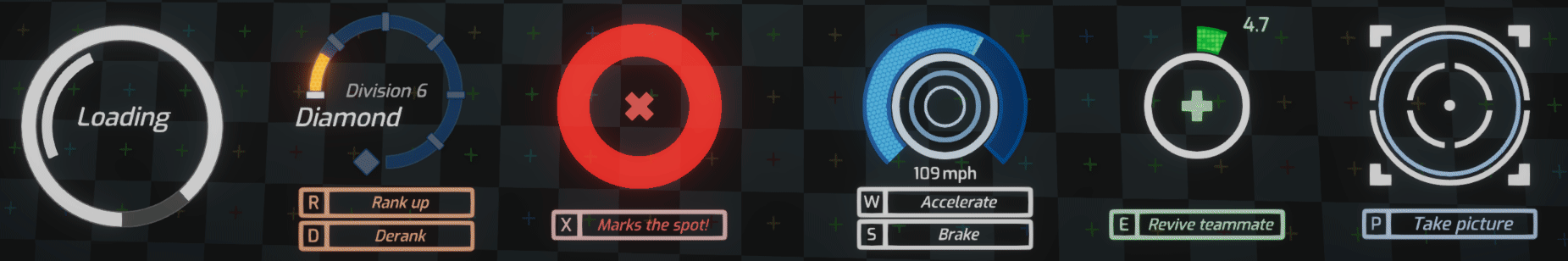

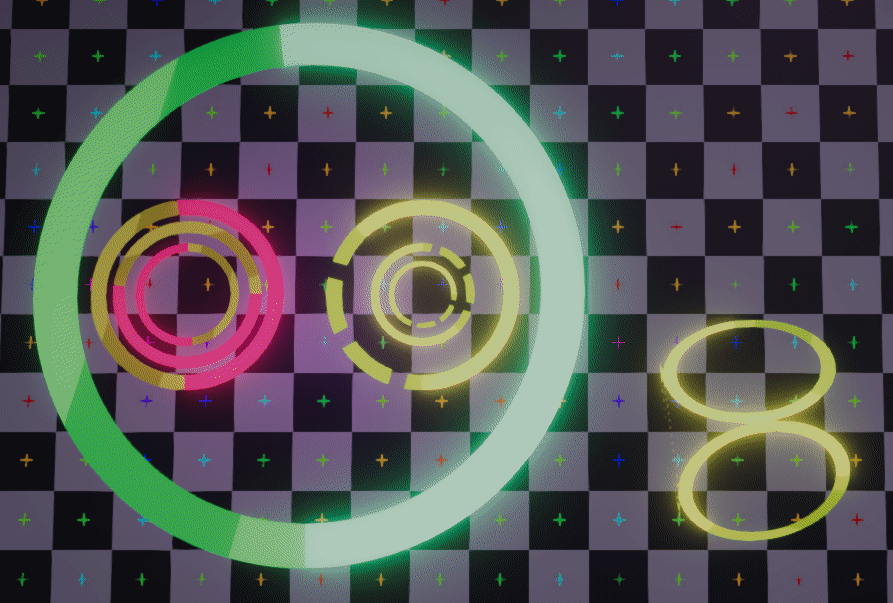

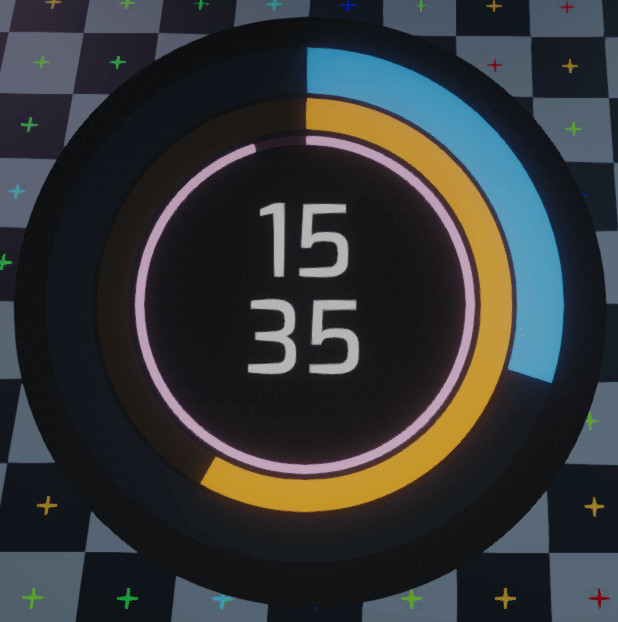

Examples

Parameters list

"Standard" version - Click to expand


//MAIN SETTINGS
_Radius
_Arcrange
_Fillpercentage
_Globalopacity
_Rotation

//BACKGROUND
_Backgroundfillcolor
_Backgroundopacity
_Backgroundbordercolor
_Backgroundborderopacity
_Backgroundborderradialwidth
_Backgroundbordertangentwidth

//BAR - BORDER
_Bordermincolor
_Bordermaxcolor
_Mainbarborderopacity
_Mainborderradialwidth
_Mainbordertangentwidth

//BAR - MAIN TEXTURE
_Maintex
_Barmincolor
_Barmaxcolor
_Maintexopacity
_Maintexcontrast
_Invertmaintex
_Mainscrollrotate
_Maintexscrollspeed
_Maintexrotationspeed
_Maintextiling
_Maintexoffset

//BAR - SECONDARY TEXTURE
_Secondarytex
_Barsecondarymincolor
_Barsecondarymaxcolor
_Secondarytexopacity
_Secondarytexcontrast
_Invertsecondarytex
_Secondaryscrollrotate
_Secondarytexscrollspeed
_Secondarytexrotationspeed
_Secondarytextiling
_Secondarytexoffset

//BAR - NOISE TEXTURE
_Noisetex
_Noiseintensity
_Noisetexcontrast
_Invertnoisetex
_Noisetexspeed
_Noisetextiling
_Noisetexoffset

"Simplified" version - Click to expand


//MAIN SETTINGS
_Radius
_Arcrange
_Fillpercentage
_Globalopacity
_Rotation

//BAR
_Barmincolor
_Barmaxcolor

Donate Donate

This piece of software is offered for free because I believe the gamedev community can benefit from it, and it should not be behind a paywall. I learned from the community, and now I am giving back.

If you would like to support me, donations are very much appreciated, since they help me create more software that I can offer for free.

Thank you very much 😃
