See the English Guide

YumiMediationSDK for Unity

1 概述

  1. 面向人群

    本产品主要面向需要在 Unity 产品中接入玉米移动广告 SDK 的开发人员。

  2. 先决条件

    • Unity 5.6 或更高版本

    • 部署 iOS

      Xcode 10.0 或更高版本

      iOS 9.0 或更高版本

      CocoaPods

    • 部署 Android

      Android SDK: > 4.1 (API level 16)

  3. Demo 获取地址

2 下载 YumiMediationSDK Unity 插件

Yumi 聚合广告 Unity 插件使 Unity 开发人员可以轻松地在 Android 和 iOS 应用上展示广告,无需编写 Java 或 Objective-C 代码。该插件提供了一个 C# 接口来请求广告。使用下面的链接下载插件的 Unity 包或在 GitHub 上查看其代码。

下载YumiMediationSDK Unity插件

查看源码

3 导入 YumiMediationSDK Unity 插件

3.1 首次导入

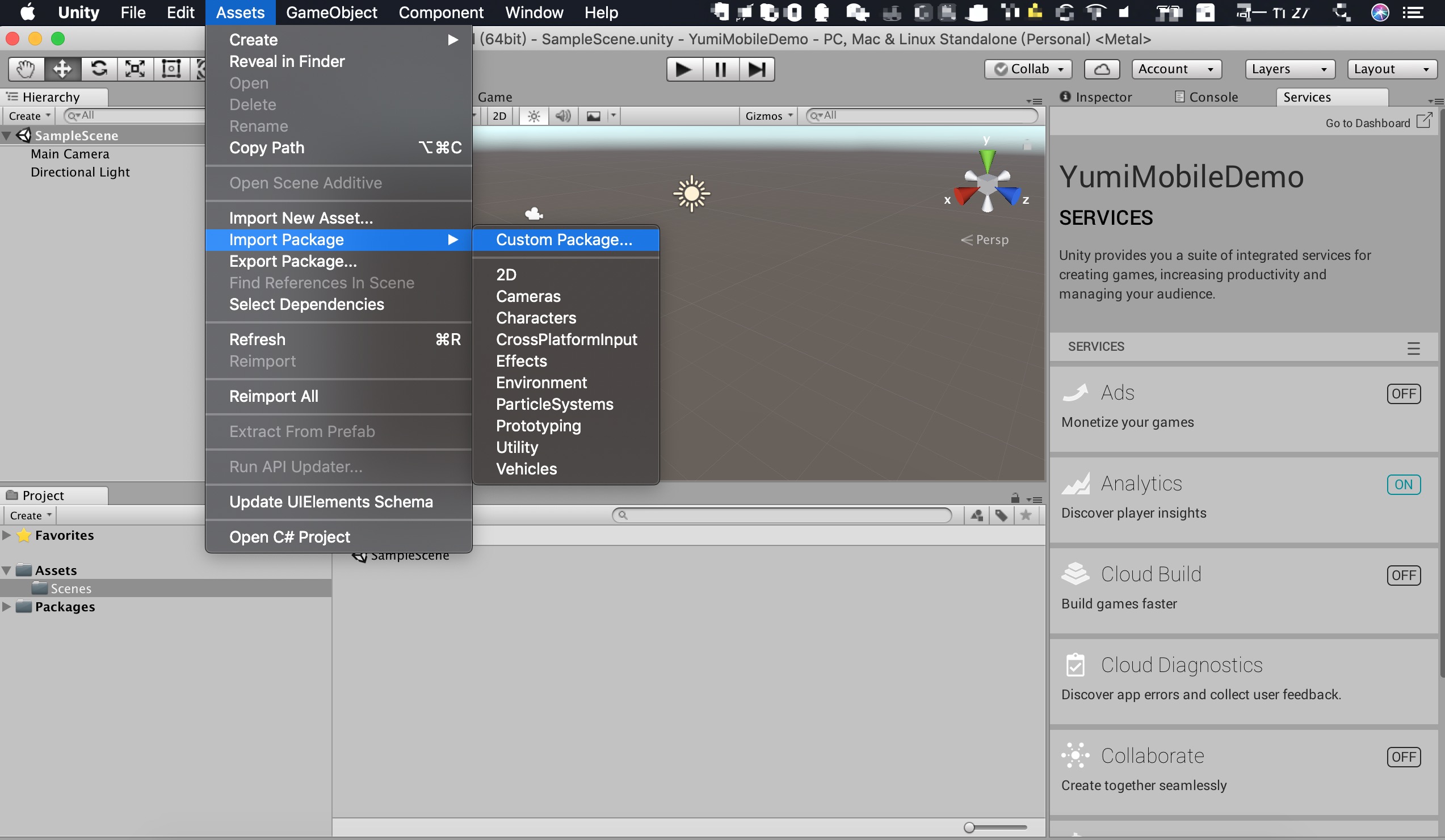

在 Unity 编辑器中打开您的项目。选择Assets> Import Package> Custom Package,找到您下载的 YumiMediationSDKPlugin.unitypackage 文件。

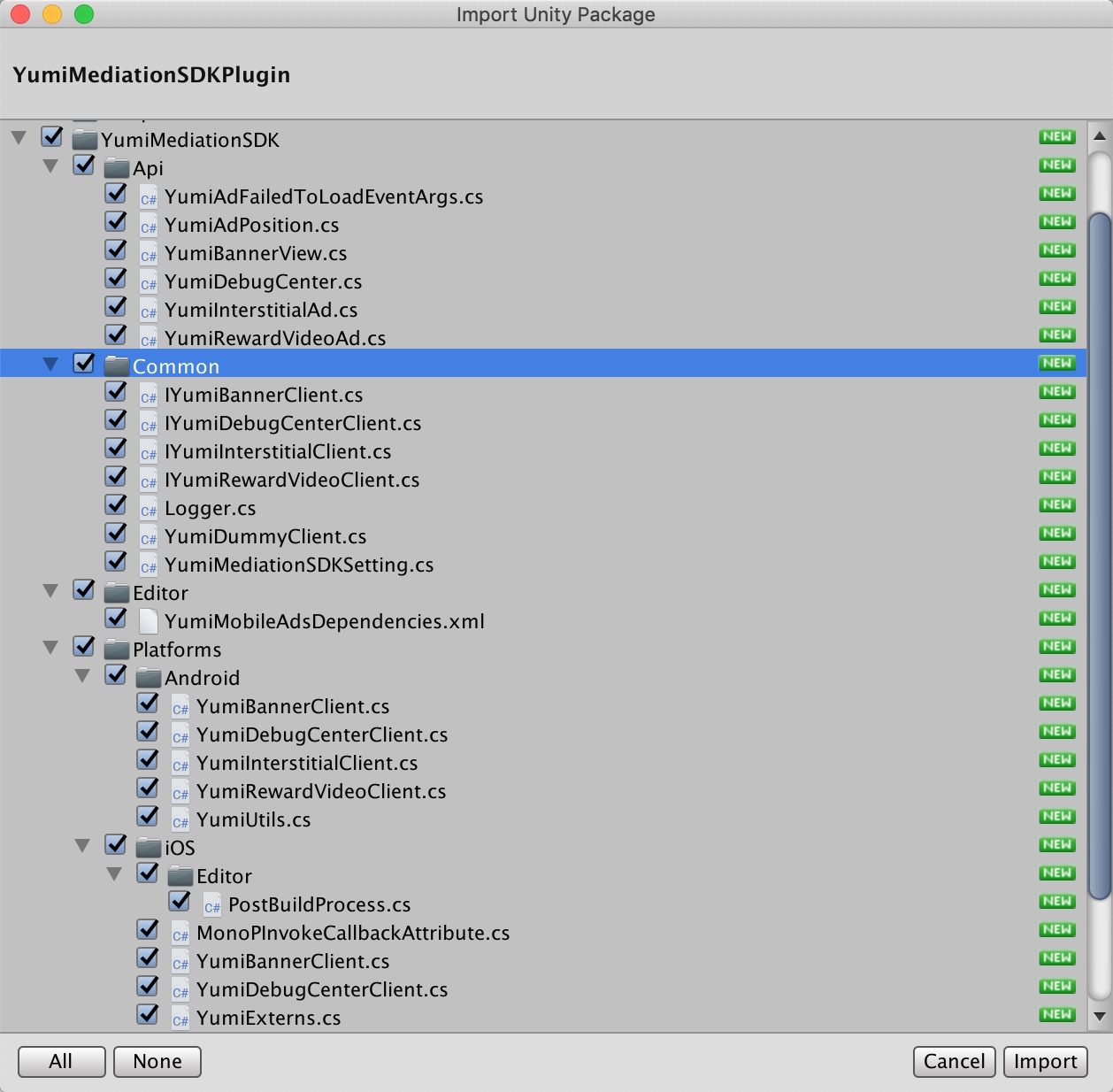

确保选中所有文件,然后单击 Import.


3.2 升级插件

删除 Assets/YumiMediationSDK 目录,并按照 3.1 所述重新导入。

删除 Assets/PlayServicesResolver目录,并按照3.1所述重新导入。

新版本插件将桥接文件 Assets/Plugins/Android/unity-plugin-library.jar 和 Assets/Plugins/iOS/* 转移到 Assets/YumiMediationSDK/…/ 下,如果之前导入过这些桥接文件,请将其删除,否则会出现编译错误。

4 集成 YumiMediationSDK

YumiMediationSDK Unity 插件随着 Unity Play Services Resolver library 一起发布。这个库适用于任何需要访问 Android 特定库(例如 AARs )或 iOS CocoaPods 的 Unity 插件。它为 Unity 插件提供了声明依赖关系的能力,然后自动解析并复制到 Unity 项目中。请按照下面列出的步骤确保您的项目包含 YumiMediationSDK。

4.1 部署 iOS 项目

4.1.1 添加依赖

将 YumiMediationSDK 集成到 Unity 项目中无需其他步骤。

如果你想要修改 YumiMediationSDK 依赖的库,请修改 Assets/YumiMediationSDK/Editor/YumiMobileAdsDependencies.xml 文件,iOS 依赖如下:

    <iosPods>
        <iosPod name="YumiMediationSDK" version="5.0.0" minTargetSdk="9.0">
        </iosPod>
        <!-- adapters -->
        <iosPod name="YumiMediationAdapters/AdColony" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/AdMob" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Baidu" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Chartboost" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Domob" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Facebook" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/GDT" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/InMobi" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/IronSource" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Unity" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Vungle" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/Mintegral" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/OneWay" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/AtmosplayAds" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/TapjoySDK" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/InneractiveAdSDK" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapters/PubNative" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapterBytedance" version="5.0.0">
        </iosPod>
        <iosPod name="YumiMediationAdapterAppLovin" version="5.0.0">
        </iosPod>
        <!-- debugCenter -->
        <iosPod name="YumiMediationDebugCenter-iOS" version="5.0.0">
        </iosPod>
    </iosPods>

比如删除 AdMob ,直接删除 <iosPod name="YumiMediationAdapters/AdMob" version="5.0.0"></iosPod> 即可。

构建完成,打开 xcworkspace 工程。

注意:使用 CocoaPods 识别 iOS 依赖项。 CocoaPods 作为后期构建过程步骤运行。 注意: CocoaPods 会自动引用第三方 SDK,您无需手动添加。

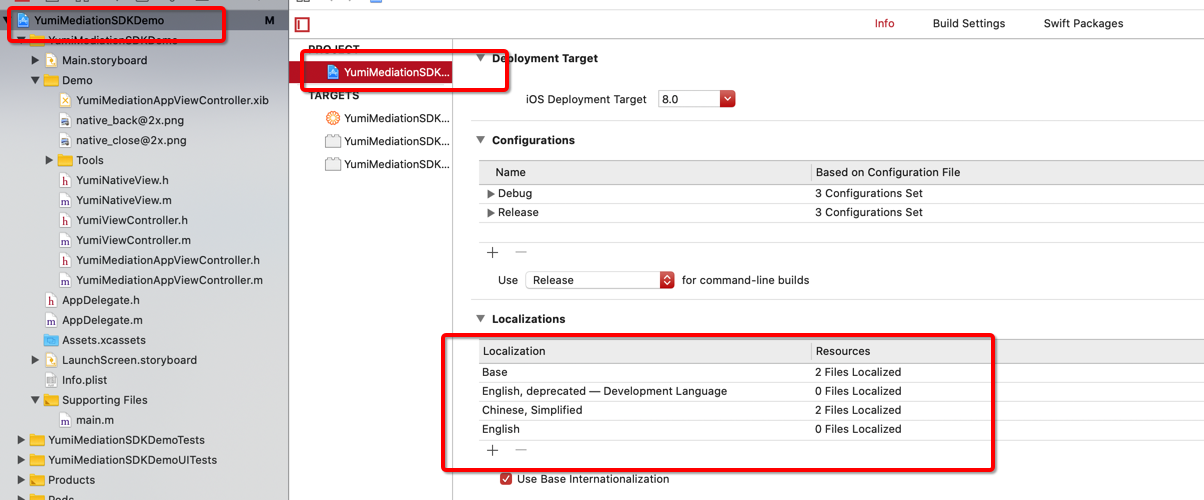

4.1.2 添加语言设置 (仅针对 BytedanceAds)

注意: 开发者必须在这里设置所支持的语言,否则会有语言显示的问题.
例如: 支持中文 添加 Chinese

4.1.3 添加您的AppLovin SDK Key

在您工程的info.plist文件中添加AppLovinSdkKey。 您可从AppLovin官网获取您的sdk key。

<key>AppLovinSdkKey</key>
  <string>get your applovin sdk key from applovin dash board</string>

4.2 部署 Android 项目

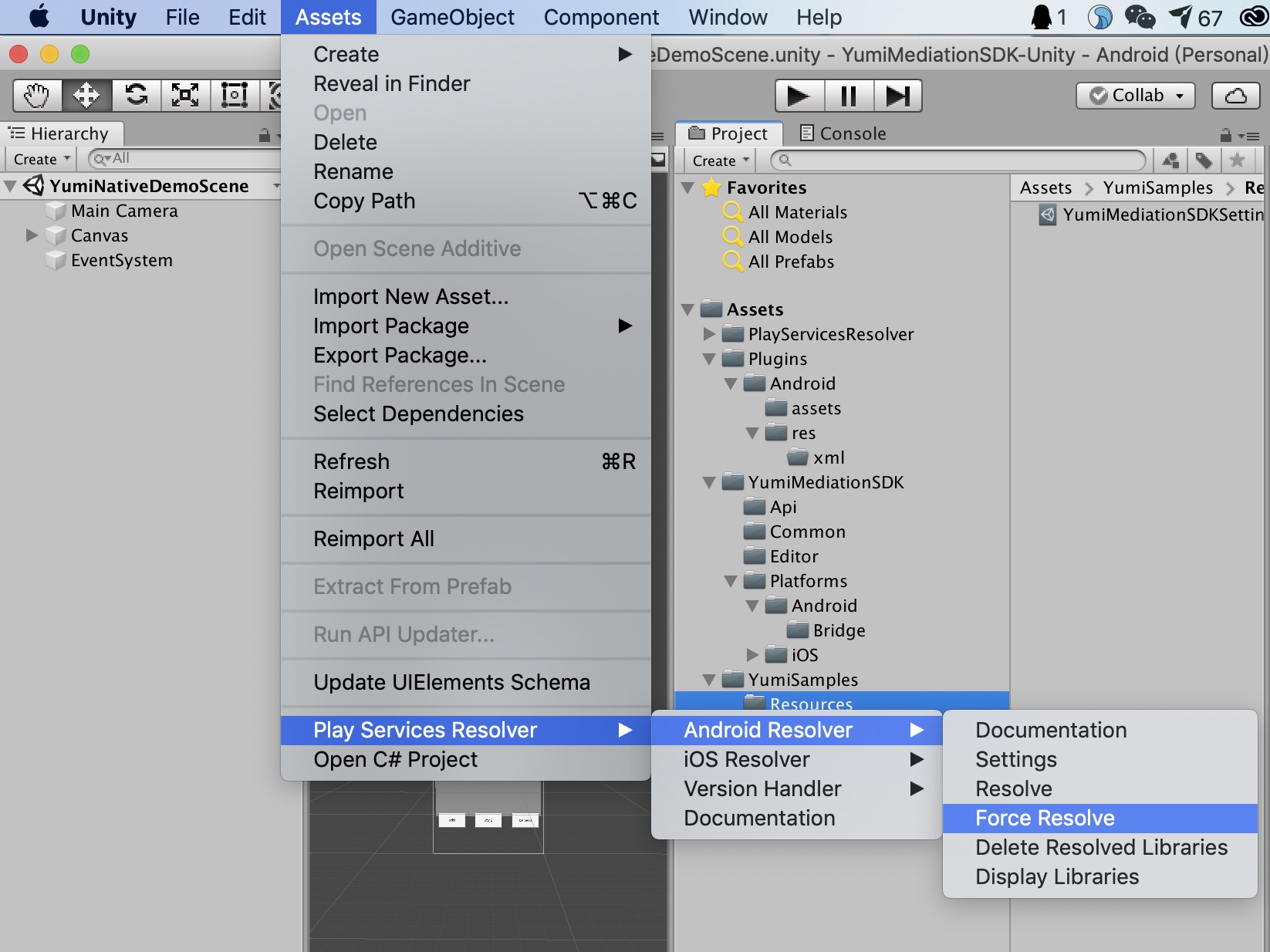

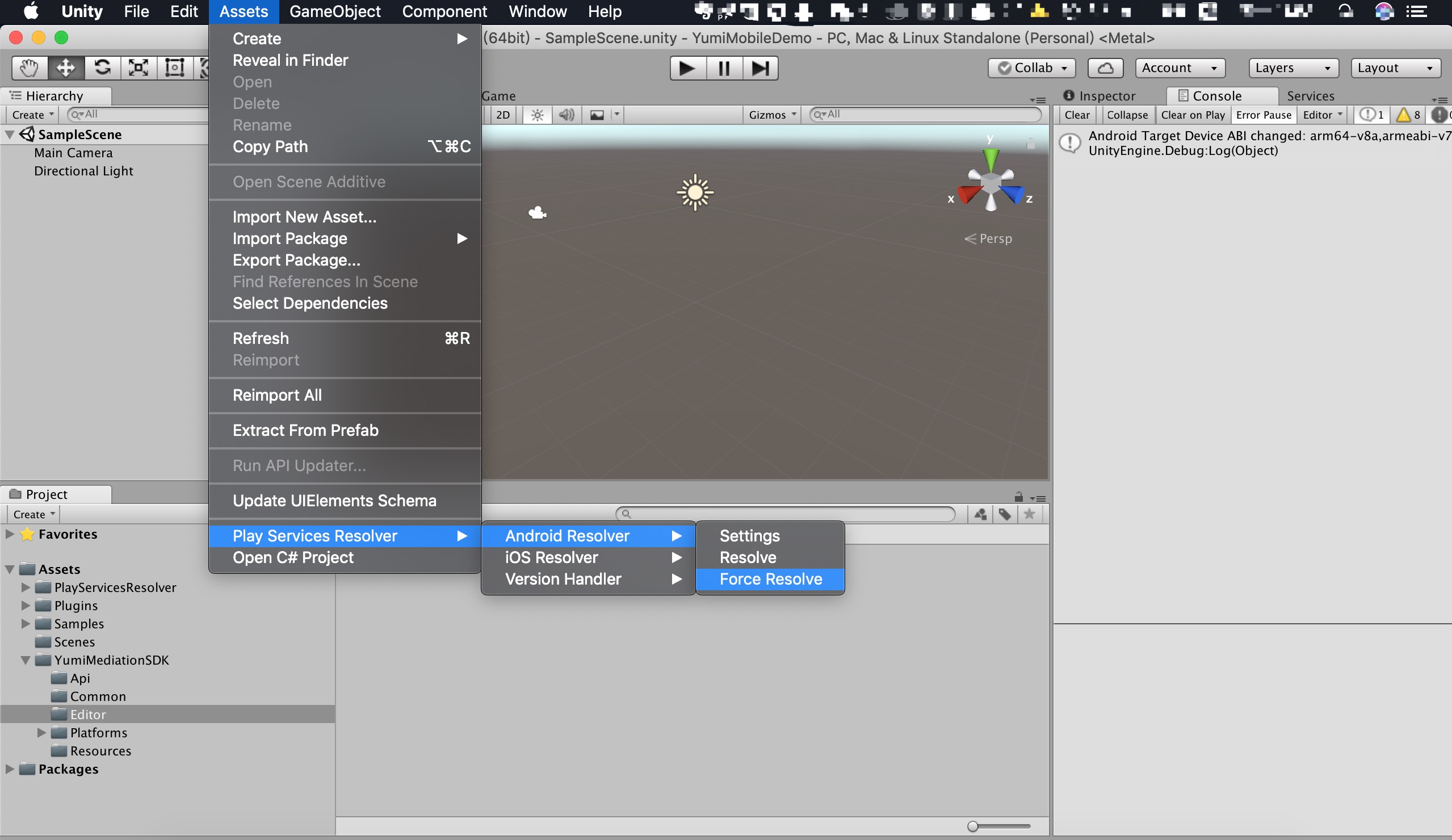

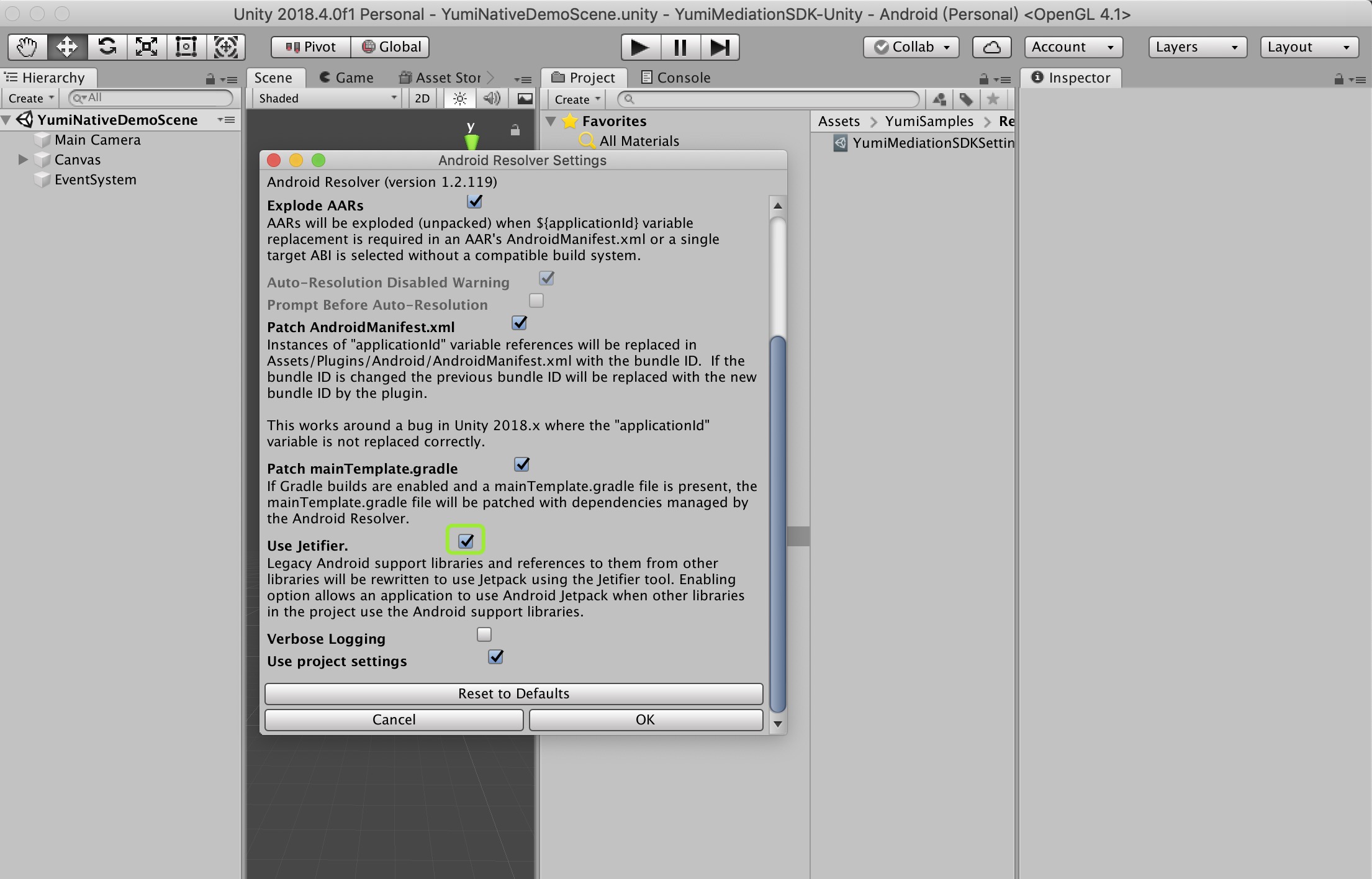

在 Unity 编辑器中,选择 Assets> Play Services Resolver> Android Resolver>Force Resolve。 Unity Play 服务解析器库会将声明的依赖项复制到 Unity 应用程序的 Assets/Plugins/Android 目录中。


如果你想要修改 YumiMediationSDK 依赖的库,请修改 Assets/YumiMediationSDK/Editor/YumiMobileAdsDependencies.xml 文件,Android 依赖如下:

<androidPackages>
  <androidPackage spec="com.yumimobi.ads:mediation:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:adcolony:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:applovin:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:atmosplay:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:pubnative:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:baidu:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:bytedance:5.0.0"/>
  <androidPackage spec="com.yumimobi.ads.mediation:chartboost:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:facebook:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:gdt:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:inneractive:5.0.0"/>
  <androidPackage spec="com.yumimobi.ads.mediation:oneway:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:ironsource:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:ksyun:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:tapjoy:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:unity:5.0.0" />
  <!-- The latest admob,inmobi,vungle,mintegral SDK uses Jetpack libraries. please migrate project to AndroidX, please see chapter 7.7  -->
  <androidPackage spec="com.yumimobi.ads.mediation:admob:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:inmobi:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:vungle:5.0.0" />
  <androidPackage spec="com.yumimobi.ads.mediation:mintegral:5.0.0" />

  <repositories>
      <repository>https://dl.bintray.com/yumimobi/thirdparty/</repository>
      <repository>https://dl.bintray.com/yumimobi/ads/</repository>
       <repository>https://dl.bintray.com/pubnative/maven</repository>
      <repository>https://tapjoy.bintray.com/maven</repository>
      <repository>https://jcenter.bintray.com/</repository>
      <repository>https://maven.google.com/</repository>
  </repositories>
</androidPackages>

比如删除 admob,直接删除 <androidPackage spec="com.yumimobi.ads.mediation:admob:5.0.0" /> 即可。

注意: Unity 插件会自动引用第三方广告 SDK,您无需手动添加。

5 选择广告形式

在部署到 Android 或 iOS 平台时,YumiMediationSDK 现在包含在 Unity 应用程序中。您现在已准备好实施广告。YumiMediationSDK 提供多种不同的广告格式,因此您可以选择最适合您的用户体验需求的广告格式。

5.1 Banner

5.1.1 初始化 Banner

using YumiMediationSDK.Api;
using YumiMediationSDK.Common;

public class YumiSDKDemo : MonoBehaviour
{
  private YumiBannerView bannerView;

  void Start()
  {
    this.InitBanner();
  }

  private void InitBanner()
  {
    string  gameVersionId = "YOUR_VERSION_ID";
    string  channelId = "YOUR_CHANNEL_ID";

    #if UNITY_ANDROID
      string bannerPlacementId = "YOUR_BANNER_PLACEMENT_ID_ANDROID";
    #elif UNITY_IOS
      string bannerPlacementId = "YOUR_BANNER_PLACEMENT_ID_IOS";
    #else
      string bannerPlacementId = "unexpected_platform";
    #endif

    // YumiBannerViewOptions 可以配置 Banner 位置、大小、是否自适应和是否自刷新
    YumiBannerViewOptions bannerOptions = new YumiBannerViewOptionsBuilder().Build();
    this.bannerView = new YumiBannerView(BannerPlacementId, ChannelId, GameVersionId, bannerOptions);

    /* banner add ad event */
    this.bannerView.OnAdLoaded    += HandleAdLoaded;
    this.bannerView.OnAdFailedToLoad  += HandleAdFailedToLoad;
    this.bannerView.OnAdClick   += HandleAdClicked;
  }

  #region Banner callback handlers

  public void HandleAdLoaded( object sender, EventArgs args )
  {
    Logger.Log( "HandleAdLoaded event received" );
  }

  public void HandleAdFailedToLoad( object sender, YumiAdFailedToLoadEventArgs args )
  {
    Logger.Log( "HandleFailedToReceiveAd event received with message: " + args.Message );
  }

  public void HandleAdClicked( object sender, EventArgs args )
  {
    Logger.Log( "Handle Ad Clicked" );
  }

  #endregion
}

5.1.2请求 Banner

this.bannerView.LoadAd();

5.1.3 隐藏 Banner

this.bannerView.Hide();

5.1.4 显示隐藏的 Banner

this.bannerView.Show();

5.1.5 销毁 Banner

this.bannerView.Destroy();

5.1.6 YumiBannerViewOptions

YumiBannerViewOptions 是初始化 YumiBannerView 时传入的最后一个参数,您可在 YumiBannerViewOptions 文件中查看:

  • adPosition

    设置 banner 广告位所处父视图的位置。默认为下方,居中显示。

  • bannerSize

    设置 banner 广告的尺寸。

    在 iPhone 及 iPod Touch 上默认为 320 * 50。

    在 iPad 上默认为 728 * 90。

  • isSmart

    默认为 true。

    如果设置为 true,banner 会自适应屏幕宽度。

    如果设置为 false,banner 会展示广告位自身尺寸。

  • disableAutoRefresh

    默认为 false。

    如果设置为 false,banner 会自动请求下一条广告,您无需重复调用 this.bannerView.LoadAd();

    如果设置为 true,banner 不会进行下一次请求,您必须在恰当的时机再次调用 this.bannerView.LoadAd();

默认创建 YumiBannerViewOptions 实例代码:

YumiBannerViewOptions bannerOptions = new YumiBannerViewOptionsBuilder().Build();

自定义创建 YumiBannerViewOptions 实例代码:

YumiBannerViewOptionsBuilder builder = new YumiBannerViewOptionsBuilder();
builder.setAdPosition(YumiAdPosition.TOP);
builder.setSmartState(false);
builder.setDisableAutoRefreshState(true);
builder.setBannerSize(YumiBannerAdSize.YUMI_BANNER_AD_SIZE_320x50);

YumiBannerViewOptions bannerOptions = new YumiBannerViewOptions(builder);

5.2 Interstitial

5.2.1 初始化及请求插屏

插屏广告位会自动加载下一条广告,您无需重复调用

using YumiMediationSDK.Api;
using YumiMediationSDK.Common;
public class YumiSDKDemo : MonoBehaviour
{
  private YumiInterstitialAd interstitialAd;
  void Start()
  {
    this.RequestInterstitial();
  }
  private void RequestInterstitial()
  {
    string gameVersionId = "YOUR_VERSION_ID";
    string channelId = "YOUR_CHANNEL_ID";
    #if UNITY_ANDROID
      string interstitialPlacementId = "YOUR_INTERSTITIAL_PLACEMENT_ID_ANDROID";
    #elif UNITY_IOS
      string interstitialPlacementId = "YOUR_INTERSTITIAL_PLACEMENT_ID_IOS";
    # else
      string interstitialPlacementId = "unexpected_platform";
    #endif
    this.interstitialAd = new YumiInterstitialAd(interstitialPlacementId, channelId, gameVersionId);

    // add interstitial event
    this.interstitialAd.OnAdLoaded += HandleInterstitialAdLoaded;
    this.interstitialAd.OnAdFailedToLoad += HandleInterstitialAdFailedToLoad;
    this.interstitialAd.OnAdClicked += HandleInterstitialAdClicked;
    this.interstitialAd.OnAdClosed += HandleInterstitialAdClosed;
    this.interstitialAd.OnAdFailedToShow += HandleInterstitialAdFailedToShow;
    this.interstitialAd.OnAdOpening += HandleInterstitialAdOpened;
    this.interstitialAd.OnAdStartPlaying += HandleInterstitialAdStartPlaying;
  }

  #region interstitial callback handlers
  public void HandleInterstitialAdLoaded(object sender, EventArgs args)
  {
      Logger.Log("HandleInterstitialAdLoaded event received");
  }

  public void HandleInterstitialAdFailedToLoad(object sender, YumiAdFailedToLoadEventArgs args)
  {
      Logger.Log("HandleInterstitialAdFailedToLoad event received with message: " + args.Message);
  }

  public void HandleInterstitialAdClicked(object sender, EventArgs args)
  {
      Logger.Log("HandleInterstitialAdClicked Clicked");
  }
  public void HandleInterstitialAdClosed(object sender, EventArgs args)
  {
      Logger.Log("HandleInterstitialAdClosed Ad closed");
  }

  public void HandleInterstitialAdFailedToShow(object sender, YumiAdFailedToShowEventArgs args)
  {
      Logger.Log("HandleInterstitialAdFailedToShow event received with message: " + args.Message);
  }
  public void HandleInterstitialAdOpened(object sender, EventArgs args)
  {
      Logger.Log("HandleInterstitialAdOpened  ad opened ");
  }
  public void HandleInterstitialAdStartPlaying(object sender, EventArgs args)
  {
      Logger.Log("HandleInterstitialAdStartPlaying event StartPlaying ");
  }
  #endregion
}

5.2.2 展示 Interstitial

建议先调用 this.interstitialAd.IsReady() 判断插屏是否准备好

 if(this.interstitialAd.IsReady())
 {
  this.interstitialAd.Show();
 }

5.2.3 销毁 Interstitial

this.interstitialAd.Destroy();

5.3 Rewarded Video

5.3.1 初始化及请求视频

视频广告位会自动加载下一条广告,您无需重复调用。

using YumiMediationSDK.Api;
using YumiMediationSDK.Common;
public class YumiSDKDemo : MonoBehaviour
{
  private YumiRewardVideoAd rewardVideoAd;
  void Start()
  {
    this.RequestRewardVideo();
  }
  private void RequestRewardVideo()
  {
    string gameVersionId = "YOUR_VERSION_ID";
    string channelId = "YOUR_CHANNEL_ID";
    #if UNITY_ANDROID
      string rewardVideoPlacementId = "YOUR_REWARDVIDEO_PLACEMENT_ID_ANDROID";
    #elif UNITY_IOS
      string rewardVideoPlacementId = "YOUR_REWARDVIDEO_PLACEMENT_ID_IOS";
    # else
      string rewardVideoPlacementId = "unexpected_platform";
    #endif
    this.rewardVideoAd = YumiRewardVideoAd.Instance;

    this.rewardVideoAd.OnAdOpening += HandleRewardVideoAdOpened;
    this.rewardVideoAd.OnAdStartPlaying += HandleRewardVideoAdStartPlaying;
    this.rewardVideoAd.OnAdRewarded += HandleRewardVideoAdReward;
    this.rewardVideoAd.OnRewardVideoAdClosed += HandleRewardVideoAdClosed;
    this.rewardVideoAd.OnAdLoaded += HandleRewardVideoAdLoaded;
    this.rewardVideoAd.OnAdFailedToLoad += HandleRewardVideoAdFailedToLoad;
    this.rewardVideoAd.OnAdFailedToShow += HandleRewardVideoAdFailedToShow;
    this.rewardVideoAd.OnAdClicked += HandleRewardVideoAdClicked;

    // Initiates the ad request, should only be called once as early as possible.
    this.rewardVideoAd.LoadAd(rewardVideoPlacementId, channelId, gameVersionId);
  }

  #region reward video callback handlers
  public void HandleRewardVideoAdOpened(object sender, EventArgs args)
  {
      Logger.Log("HandleRewardVideoAdOpened event opened");
  }

  public void HandleRewardVideoAdStartPlaying(object sender, EventArgs args)
  {
      Logger.Log("HandleRewardVideoAdStartPlaying event start playing ");
  }

  public void HandleRewardVideoAdReward(object sender, EventArgs args)
  {
      Logger.Log("HandleRewardVideoAdReward reward");
  }
  public void HandleRewardVideoAdClosed(object sender, YumiAdCloseEventArgs args)
  {
      Logger.Log("HandleRewardVideoAdClosed Ad closed result is  " + args.IsRewarded);
  }
  public void HandleRewardVideoAdLoaded(object sender, EventArgs args)
  {
      Logger.Log("HandleRewardVideoAdLoaded event received");
  }

  public void HandleRewardVideoAdFailedToLoad(object sender, YumiAdFailedToLoadEventArgs args)
  {
      Logger.Log("HandleRewardVideoAdFailedToLoad event received with message: " + args.Message);
  }

  public void HandleRewardVideoAdFailedToShow(object sender, YumiAdFailedToShowEventArgs args)
  {
      Logger.Log("HandleRewardVideoAdFailedToShow event with message: " + args.Message);
  }
  public void HandleRewardVideoAdClicked(object sender, EventArgs args)
  {
      Logger.Log("HandleRewardVideoAdClicked Clicked");
  }
  #endregion
}

5.3.2 判断视频是否准备好

 this.rewardVideoAd.IsReady();

5.3.4 展示 Rewarded Video

 if(this.rewardVideoAd.IsReady())
 {
  this.rewardVideoAd.Play();
 }

5.4 Native

5.4.1 初始化 Native

using UnityEngine;
using UnityEngine.UI;
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine.SceneManagement;
using YumiMediationSDK.Api;
using YumiMediationSDK.Common;

public class YumiNativeScene : MonoBehaviour
{
    private YumiNativeAd nativeAd;
    private YumiNativeData yumiNativeData;
    // UI elements in scene
    [Header("Text:")]
    public Text title;
    public Text body;
    [Header("Images:")]
    public GameObject mediaView;
    public GameObject iconImage;
    [Header("Buttons:")]
    // This doesn't be a button - it can also be an image
    public Button callToActionButton;

    // ad panel
    public GameObject adPanel;

    void Start()
    {
        this.InitNativeAd();
    }
    private void InitNativeAd()
    {
        string gameVersionId = "YOUR_VERSION_ID";
        string channelId = "YOUR_CHANNEL_ID";
        #if UNITY_ANDROID
          string nativePlacementId = "YOUR_NATIVE_PLACEMENT_ID_ANDROID";
        #elif UNITY_IOS
          string nativePlacementId = "YOUR_NATIVE_PLACEMENT_ID_IOS";
        #else
          string nativePlacementId = "unexpected_platform";
        #endif
        // you must set native  express ad view  transform if you want to support native express ad
        NativeAdOptionsBuilder builder = new NativeAdOptionsBuilder();
        builder.setExpressAdViewTransform(adPanel.transform);

        YumiNativeAdOptions options = new YumiNativeAdOptions(builder);
        // YumiNativeAdOptions options = new NativeAdOptionsBuilder().Build(); // only native ad
        nativeAd = new YumiNativeAd(NativePlacementId, ChannelId, GameVersionId, gameObject,options);
        // call back
        nativeAd.OnNativeAdLoaded += HandleNativeAdLoaded;
        nativeAd.OnAdFailedToLoad += HandleNativeAdFailedToLoad;
        nativeAd.OnAdClick += HandleNativeAdClicked;
        /// ------only available in ExpressAdView------
        nativeAd.OnExpressAdRenderSuccess += HandleNativeExpressAdRenderSuccess;
        nativeAd.OnExpressAdRenderFail += HandleNativeExpressAdRenderFail;
        nativeAd.OnExpressAdClickCloseButton += HandleNativeExpressAdClickCloseButton;
    }
    #region native call back handles
    public void HandleNativeAdLoaded(object sender, YumiNativeToLoadEventArgs args)
    {
        Logger.Log("HandleNativeAdLoaded event opened");
        if (nativeAd == null)
        {
            Logger.Log("nativeAd is null");
            return;
        }

        if (args == null || args.nativeData == null || args.nativeData.Count == 0)
        {
            Logger.Log("nativeAd data not found.");
            return;
        }
        // args.nativeData is nativeAd data
      	yumiNativeData = args.nativeData[0];
    }
    public void HandleNativeAdFailedToLoad(object sender, YumiAdFailedToLoadEventArgs args)
    {
        Logger.Log("HandleNativeAdFailedToLoad event received with message: " + args.Message);
    }
    public void HandleNativeAdClicked(object sender, EventArgs args)
    {
        Logger.Log("HandleNativeAdClicked");
    }
    /// ------only available in ExpressAdView------
     public void HandleNativeExpressAdRenderSuccess(object sender , YumiNativeDataEventArgs args)
    {
        Logger.Log("HandleNativeExpressAdRenderSuccess");
    }
    public void HandleNativeExpressAdRenderFail(object sender, YumiAdFailedToRenderEventArgs args)
    {
        Logger.Log("HandleNativeExpressAdRenderFail" + args.Message + "data id is " + args.nativeData.uniqueId);
    }
    public void HandleNativeExpressAdClickCloseButton(object sender, YumiNativeDataEventArgs args)
    {
        Logger.Log("HandleNativeExpressAdClickCloseButton" + args.nativeData.uniqueId);
    }
    #endregion
}

5.4.2 YumiNativeAdOptions

YumiNativeAdOptions 是初始化 YumiNativeAd 的最后一个参数,可以配置原生广告显示的样式,参数详情如下:

// AdOptionViewPosition: TOP_LEFT,TOP_RIGHT,BOTTOM_LEFT,BOTTOM_RIGHT
public AdOptionViewPosition adChoiseViewPosition { get; private set; }
// AdAttribution: AdOptionsPosition、text、textColor、backgroundColor、textSize、hide
public AdAttribution adAttribution { get; private set; }
// TextOptions: textSize,textColor,backgroundColor
public TextOptions titleTextOptions { get; private set; }
public TextOptions descTextOptions { get; private set; }
public TextOptions callToActionTextOptions { get; private set; }
// ScaleType: SCALE_TO_FILL、SCALE_ASPECT_FIT、SCALE_ASPECT_FILL
public ScaleType iconScaleType { get; private set; }
public ScaleType coverImageScaleType { get; private set; }
// native express ad view  transform
public Transform expressAdViewTransform { get; private set; }

默认创建 YumiNativeAdOptions 实例代码:

YumiNativeAdOptions options = new NativeAdOptionsBuilder().Build();

自定义创建 YumiNativeAdOptions 实例代码:

 NativeAdOptionsBuilder builder = new NativeAdOptionsBuilder();
 builder.setExpressAdViewTransform(adPanel.transform);

 YumiNativeAdOptions options = new YumiNativeAdOptions(builder);

如果要支持原生模板广告必须使用 builder.setExpressAdViewTransform(adPanel.transform); 创建 options 对象

5.4.3 请求 Native

int adCount = 1;// adCount: you can load more than one ad
this.nativeAd.LoadAd(adCount);

5.4.4 创建原生广告布局

public class YumiNativeScene : MonoBehaviour
  {
    private YumiNativeAd nativeAd;
    // UI elements in scene
    [Header("Text:")]
    public Text title;
    public Text body;
    [Header("Images:")]
    public GameObject mediaView;
    public GameObject iconImage;
    [Header("Buttons:")]
    // This doesn't be a button - it can also be an image
    public Button callToActionButton;
  	/// ...
  }

以下说明这些元素如何与编辑器中的视图关联:


5.4.5 使用广告元数据注册布局

public class YumiNativeScene : MonoBehaviour
{
  private YumiNativeAd nativeAd;
  private YumiNativeData yumiNativeData;
  private void RegisterNativeViews()
    {
        Dictionary<NativeElemetType, Transform> elementsDictionary = new Dictionary<NativeElemetType, Transform>();
        elementsDictionary.Add(NativeElemetType.PANEL, adPanel.transform);
        elementsDictionary.Add(NativeElemetType.TITLE, title.transform);
        elementsDictionary.Add(NativeElemetType.DESCRIPTION, body.transform);
        elementsDictionary.Add(NativeElemetType.ICON, iconImage.transform);
        elementsDictionary.Add(NativeElemetType.COVER_IMAGE, mediaView.transform);
        elementsDictionary.Add(NativeElemetType.CALL_TO_ACTION, callToActionButton.transform);
        // This is a method to associate a YumiNativeData with the ad assets gameobject you will use to display the native ads.
        nativeAd.RegisterNativeDataForInteraction(yumiNativeData, elementsDictionary);

    }
}

5.4.6 展示 Native View

  1. 原生广告
// Determines whether nativeAd data is invalidated, if invalidated please reload
if (this.nativeAd.IsAdInvalidated(yumiNativeData))
  {
      Logger.Log("Native Data is invalidated");
      return;
  }
// the ad is native ad
if (!yumiNativeData.isExpressAdView)
  {
    this.nativeAd.ShowView(yumiNativeData);
  }

  1. 原生模板广告
  // if the ad is native express view please show ad in HandleNativeExpressAdRenderSuccess
  if (yumiNativeData.isExpressAdView)
  {
    // ...
  }
  • 注意:显示广告前,您必须注册布局并检查广告是否已经无效。

5.4.7 隐藏 Native View

this.nativeAd.HideView(yumiNativeData);// Hide nativeAd data associate view

5.4.8 移除 Native View

this.nativeAd.UnregisterView(yumiNativeData);

此方法的作用:从屏幕上移除当前广告视图,断开 View 和 广告元数据的注册。在显示一个新广告时,请先调用这个方法。

5.4.9 销毁 Native

this.nativeAd.Destroy();

5.5 Splash

5.5.1 集成开屏广告

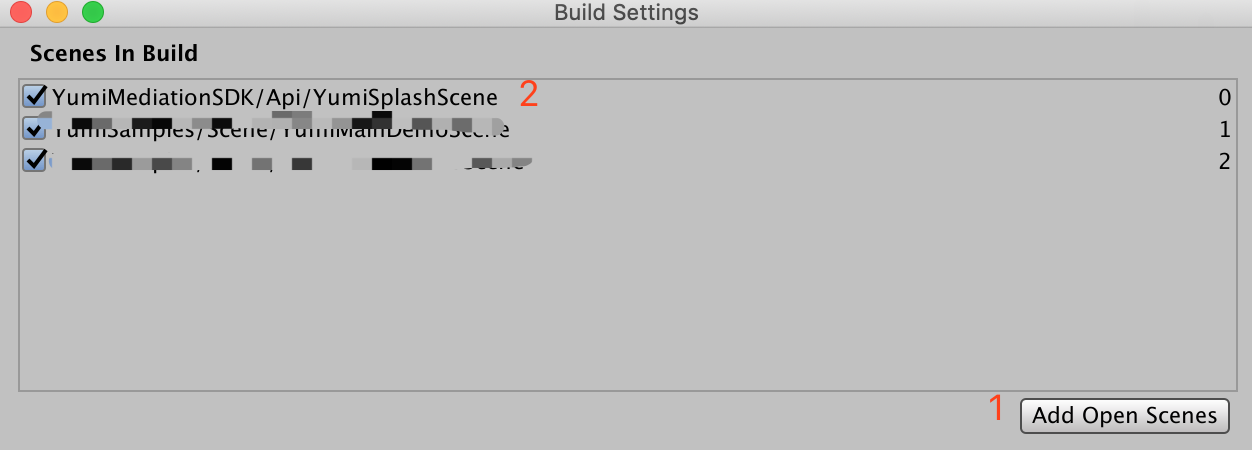

如果您的 APP 想要集成开屏广告形式,请把 YumiSplashScene 加到 Scenes In Build 的第一位。如下图所示: image

Warning: 建议您将 YumiSplashScene 的背景图片设置为您应用的 launchImage。

5.5.2 配置开屏广告

YumiMediationSDK/Api/YumiSplashScript 文件的 void Start() 方法中配置您的广告位信息。

void Start()
    {
      #if UNITY_ANDROID
        SplashPlacementId = "YOUR_SPLASH_PLACEMENT_ID_ANDROID";
      #elif UNITY_IOS
        SplashPlacementId = "YOUR_SPLASH_PLACEMENT_ID_IOS";
      #else
        SplashPlacementId = "unexpected_platform";
      #endif
      // 如无特殊需求,GameVersionId,ChannelId 可设置为空字符串。
      GameVersionId = "YOUR_GAME_VERSION";
      ChannelId = "YOUR_CHANNEL_ID";
      // ...
    }

5.5.3 处理回调

当开屏回调失败或者关闭时,请打开您的 APP SCENE。 在如下方法中,修改 YOUR_MAIN_SCENE 为您 main scene 的名字。

  private void InputMainSence()
    {
        SceneManager.LoadScene("YOUR_MAIN_SCENE");
    }

5.5.4 YumiSplashOptions

YumiSplashOptions 是初始化 YumiSplashAd 的最后一个参数,您可在 YumiSplashOptions 文件中查看:

  • adFetchTime

    拉取广告超时时间,默认为3秒 。在该超时时间内,如果广告请求成功则展示广告,否则展示失败。

  • adOrientation

    开屏广告方向。默认竖屏。只有 Admob 广告平台支持这个方法

  • adBottomViewHeight

    广告底部视图的高度。广告底视图的高度不应超过屏幕高度的15%。

创建默认 YumiSplashOptions 实例代码:

YumiSplashOptions splashOptions = new YumiSplashOptionsBuilder().Build();

创建自定义 YumiSplashOptions 实例代码:

YumiSplashOptionsBuilder builder = new YumiSplashOptionsBuilder();
builder.setAdBottomViewHeight(100);
builder.setAdFetchTime(3);
builder.setAdOrientation(YumiSplashOrientation.YUMISPLASHORIENTATION_PORTRAIT);

YumiSplashOptions splashOptions = new YumiSplashOptions(builder);

5.5.5 显示半屏广告

显示半屏广告,可允许您在 bottomView 位置展示应用 logo。 请修改开屏的初始化代码

/// bottom view's height should not exceed 15% of the screen height.
YumiSplashOptionsBuilder builder = new YumiSplashOptionsBuilder().setAdBottomViewHeight(100);
YumiSplashOptions splashOptions = new YumiSplashOptions(builder);

YumiSplashAd splashAd = new YumiSplashAd(SplashPlacementId, ChannelId, GameVersionId, splashOptions);

// ...

6 调试模式

如果您想调试平台 key 是否有广告返回,可选择调试模式。

6.1 调用调试模式

using YumiMediationSDK.Api;
using YumiMediationSDK.Common;

public class YumiSDKDemo : MonoBehaviour
{
   private YumiDebugCenter debugCenter;

   private void CallDebugCenter(){
        if (this.debugCenter == null)
        {
            this.debugCenter = new YumiDebugCenter();
        }
        // 注意:填写的广告位信息要区分iOS和Android
        this.debugCenter.PresentYumiMediationDebugCenter("YOUR_BANNER_PLACEMENT_ID", "YOUR_INTERSTITIAL_PLACEMENT_ID", "YOUR_REWARDVIDEO_PLACEMENT_ID", "YOUR_NATIVE_PLACEMENT_ID","YOUR_SPLASH_PLACEMENT_ID","YOUR_CHANNEL_ID", "YOUR_VERSION_ID");
    }
}

6.2 图示

以 iOS 平台为例(Android 平台逻辑相同,UI 不同)。

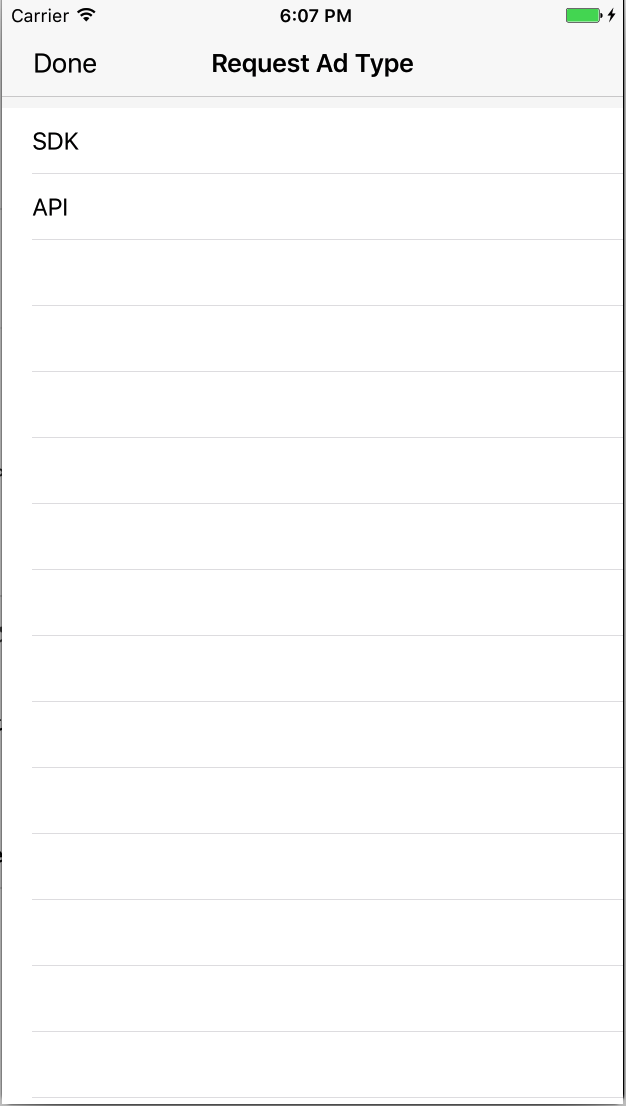

选择平台类型

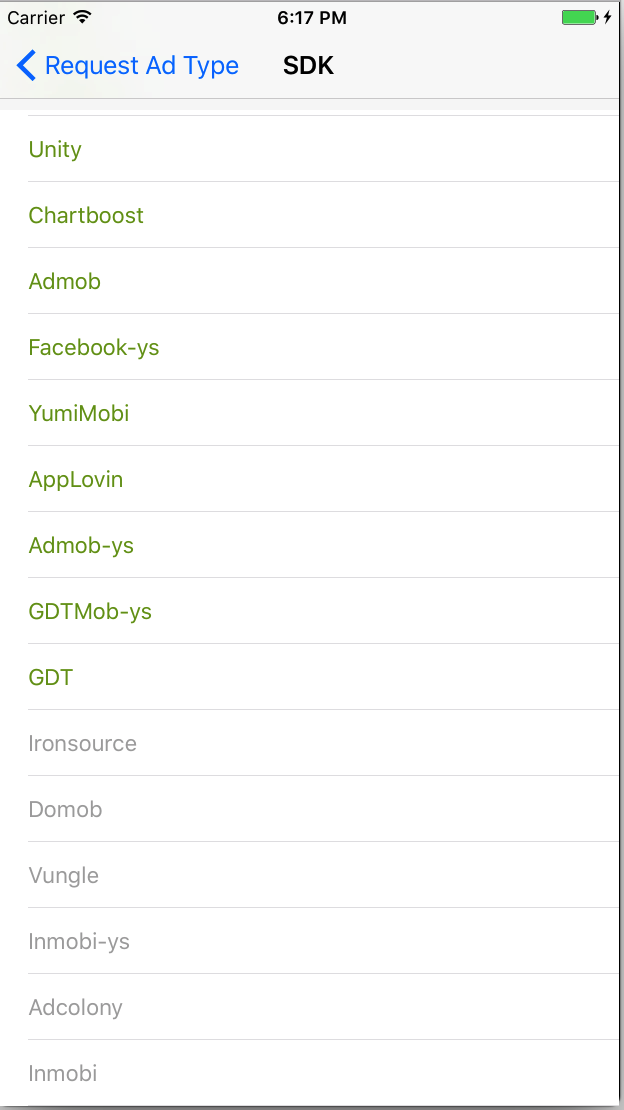

选择单一平台进行调试
如果您需要的平台未在列表中,则代表此平台未添加至工程中
绿色平台为已添加至工程并且已配置
灰色平台为已添加至工程但未配置

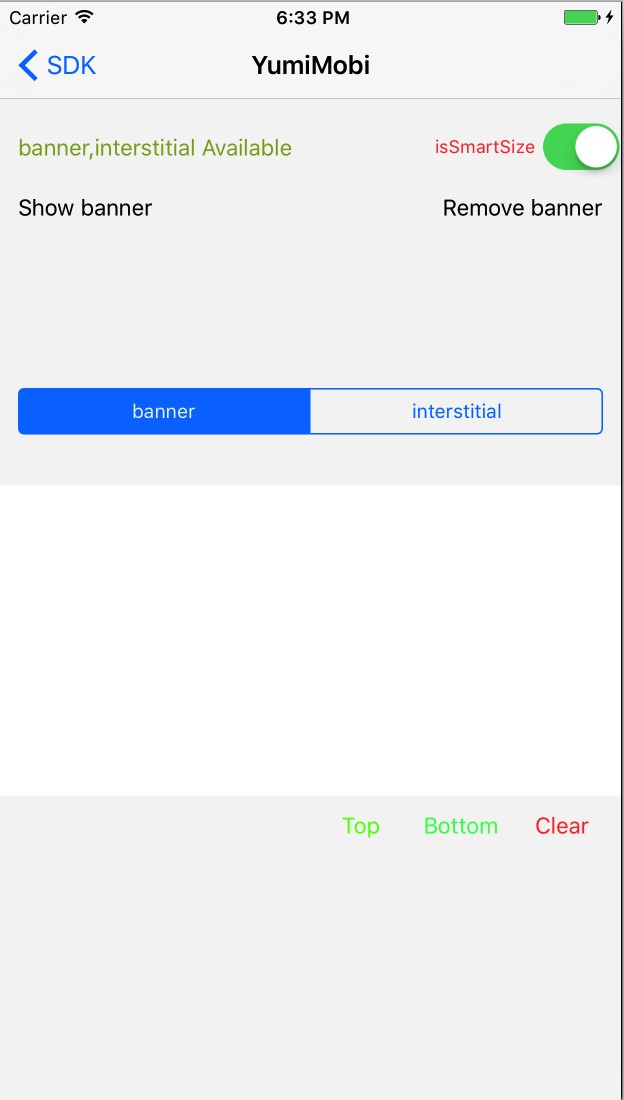

选择广告类型,调试单一平台

7 常见问题

7.1 TEST ID

系统 广告类型 Slot(Placement) ID 备注
Android Banner uz852t89 YUMI,AdMob,APPlovin,Baidu,IQzone 使用此test id,以上Network平台可测试到对应平台广告
Android Interstitial 56ubk22h YUMI,AdMob,APPlovin,Baidu,IronSource,Inmobi,IQzone, untiy Ads,vungle, ZPLAYAds 使用此test id,以上Network平台可测试到对应平台广告
Android Rewarded Video ew9hyvl4 YUMI,AdMob,APPlovin,GDTMob,IronSource,Inmobi,IQzone, untiy Ads,vungle, ZPLAYAds 使用此test id,以上Network平台可测试到对应平台广告
Android Native dt62rndy YUMI,AdMob,Baidu,GDTMob,Facebook 使用此test id,以上Network平台可测试到对应平台广告
iOS Banner l6ibkpae YUMI,AdMob,APPlovin,Baidu,Facebook,GDTMob 使用此test id,以上Network平台可测试到对应平台广告
iOS Interstitial onkkeg5i YUMI,AdMob,Baidu,Chartboost,GDTMob,IronSource,Inmobi,IQzone, untiy Ads,vungle, ZPLAYAds 使用此test id,以上Network平台可测试到对应平台广告
iOS Rewarded Video 5xmpgti4 YUMI,AdMob,Adcolony, APPlovin,IronSource,Inmobi,Mintegral, untiy Ads,vungle, ZPLAYAds 使用此test id,以上Network平台可测试到对应平台广告
iOS Native atb3ke1i YUMI,AdMob,Baidu,GDTMob,Facebook 使用此test id,以上Network平台可测试到对应平台广告

7.2 Android 打包失败

7.2.1 Failed to find Build Tools…

* What went wrong:
A problem occurred configuring root project 'gradleOut'.
> Failed to find Build Tools revision 29.0.0

解决方法

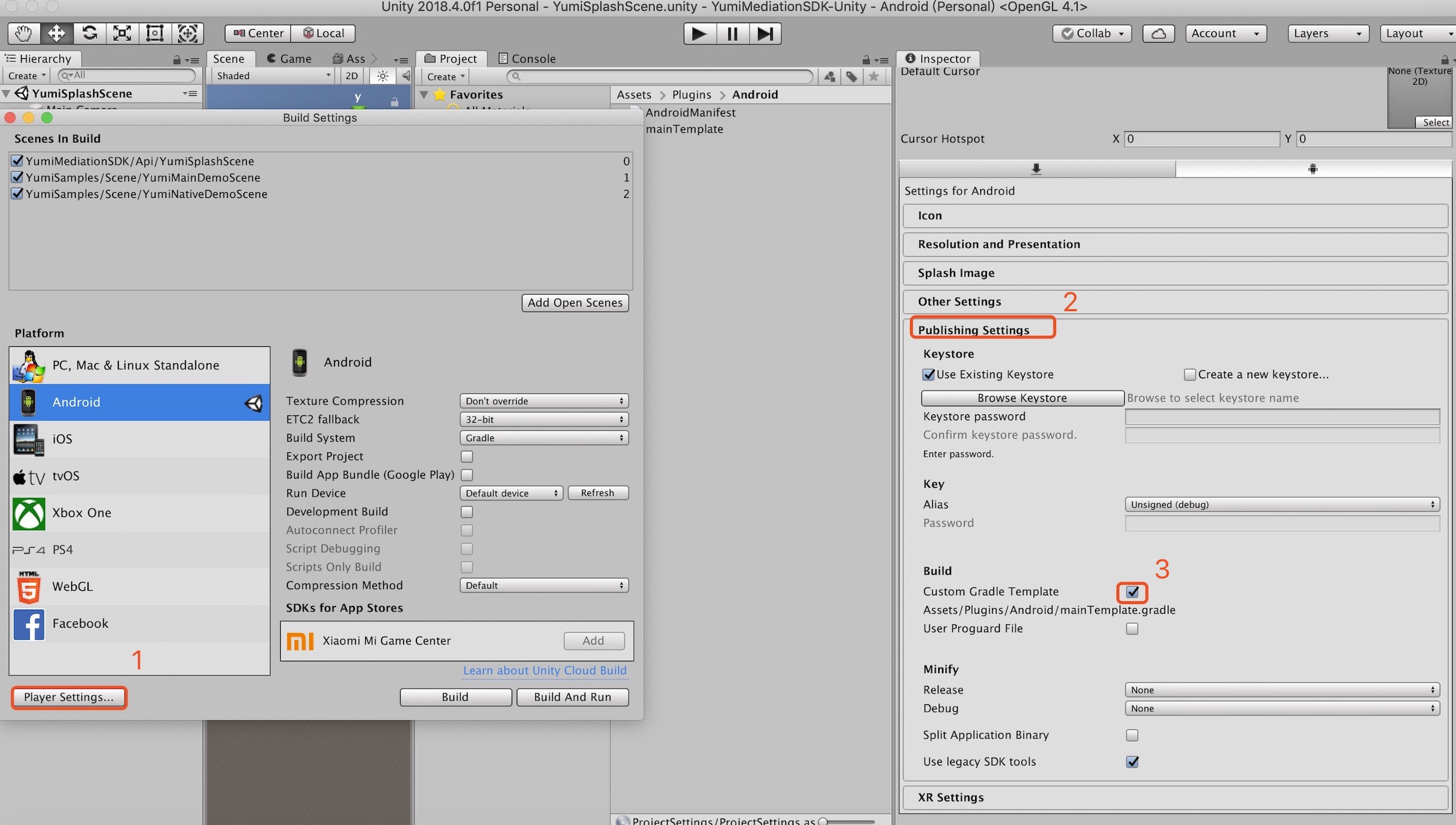

mainTemplet 中删除 buildToolsVersion '**BUILDTOOLS**'

7.2.2 No toolchains found…

* What went wrong:
A problem occurred configuring root project 'gradleOut'.
> No toolchains found in the NDK toolchains folder for ABI with prefix: mips64el-linux-android

解决方法

修改 mainTemplet 中 gradle plugin 版本,如将 classpath 'com.android.tools.build:gradle:3.0.1' 修改为 classpath 'com.android.tools.build:gradle:3.2.1'

7.2.3 Failed to apply plugin…

* What went wrong:
A problem occurred evaluating root project 'gradleOut'.
> Failed to apply plugin [id 'com.android.application']
   > Minimum supported Gradle version is 4.6. Current version is 4.2.1. If using the gradle wrapper, try editing the distributionUrl in

解决方法(以下方法任选一个即可)

  1. 升级 gradle 版本至 4.6
  2. 降级 gradle plugin 版本至 gradle 4.2.1 对应的版本。对照 Update Gradle 文档可知需要将 mainTempletclasspath 'com.android.tools.build:gradle:x.x.x' 修改为 classpath 'com.android.tools.build:gradle:3.0.0+'

7.2.4 加载三方 SDK 时间过长

执行 Android Resolver -> Resolve/Force resolve 时,插件会自动下载并导入相关 aar。如果添加多个平台,各平台依赖库版本不一致时插件会尝试自动解决依赖冲突,此过程可能耗时较长,请耐心等待。解决冲突时,尽量不要操作 Unity IDE,否则 Unity IDE 可能会出现卡死现象。

7.2.5 64k 引用限制

添加过多三方 SDK 会导致 64k 引用限制问题,可以通过以下方式之一解决此问题:

解决方案一:查看 Unity 工程 Assets/Plugins/Android/ 下是否有 AndroidManifest.xml 与 mainTemplate.gradle 文件,若没有则复制此文件并添加到 Assets/Plugins/Android/ 目录下,文件地址:AndroidManifest.xmlmainTemplate.gradle;如果有这两个文件,则修改 AndroidManifest.xml 文件,如下:

<manifest>
  ...
  <application
      android:name="android.support.multidex.MultiDexApplication"
      ...
      >
      ...
  </application>
  ...
</manifest>

修改 mainTemplate.gradle 如下

allprojects {
  repositories {
    google()
    jcenter()
    ...
  }
}
dependencies {
  ...
  implementation 'com.android.support:multidex:1.0.3'
  ...
**DEPS**}

解决方案二:将项目导出 Android Studio 工程,然后根据 规避 64K 限制 方案解决。

7.2.6 点击 Android Resolver/Force Resolve选项加载SDK提示失败。

点击 Assets/Play Services Resolver/Android Resolver/Force Resolve选项出现下面的报错日志:

stderr:
Exception in thread "main" java.lang.RuntimeException: Timeout of 120000 reached waiting for exclusive access to file: /.gradle/wrapper/dists/gradle-5.1.1-bin/90y9l8txxfw1s2o6ctiqeruwn/gradle-5.1.1-bin.zip
	at org.gradle.wrapper.ExclusiveFileAccessManager.access(ExclusiveFileAccessManager.java:61)
	at org.gradle.wrapper.Install.createDist(Install.java:48)
	at org.gradle.wrapper.WrapperExecutor.execute(WrapperExecutor.java:128)
	at org.gradle.wrapper.GradleWrapperMain.main(GradleWrapperMain.java:61)

请检查你Unity项目中的Assets/Plugin/Android/mainTemplate.gradle文件是否存在,如果不存在,请添加mainTemplate.gradle文件

使用Unity工具生成mainTemplate.gradle文件:

7.3 android 9.0 适配

目前一些平台Android SDK暂不支持Android9.0以上操作系统,比如 Mintegral 平台,如果在Android9.0以上系统出现的崩溃,可以通过以下方法解决。

  • 将targaetSDKveriosn设置为27或者27以下。

7.4 设置 Admob MANAGER (不设置此项应用启动会崩溃)

7.5 Gdt(广点通)平台常见问题:

7.5.1 接入Gdt(广点通) 原生广告后,出现广点通原生广告视频显示不出来问题:

解决方法

请确保你Unity项目的Assets/Plugins/Android/AndroidManifest.xml中的package:"xxx.xxx.xxx"名称和你Unity项目的package name "xxx.xxx.xxx"保持一致。如下图所示: gdt1

7.5.2 Gdt(广点通) 平台请求不到广告问题:

解决方法

确认Gdt(广点通) 平台需要的权限已添加

<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_UPDATES"/>

7.6 Baidu 平台常见问题:

7.6.1 Baidu 平台请求不到广告问题:

解决办法

确认百度平台需要的权限已添加

<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

7.7 将项目迁移到AndroidX:

7.7.1 设置Android Resolver

由于最新的Admob,Inmobi,Vungle,Mintegral平台Ads SDK使用Jetpack库。

为确保Admob,Inmobi,Vungle,Mintegral平台Ads SDK兼容,请在项目Unity导航栏中的Assets/Android Resolver/Setting中勾选User Jetifier,如下所示: setting1

setting2

7.7.2 请重新Force Resolver

setting3

8 GDPR

本文件是为遵守欧洲联盟的一般数据保护条例(GDPR)而提供的。 自 YumiMediationSDK 4.1.0 起,如果您正在收集用户的信息,您可以使用下面提供的api将此信息通知给 YumiMediationSDK 和部分三方平台。 更多信息请查看我们的官网。

8.1 设置 GDPR

public enum YumiConsentStatus
    {
		/// <summary>
		/// The user has granted consent for personalized ads.
		/// </summary>
		PERSONALIZED,

		/// <summary>
		/// The user has granted consent for non-personalized ads.
		/// </summary>
		NONPERSONALIZED,
		/// <summary>
		///  The user has neither granted nor declined consent for personalized or non-personalized ads.
		/// </summary>
		UNKNOWN

	}
// Your user's consent. In this case, the user has given consent to store and process personal information.
YumiGDPRManager.Instance.UpdateNetworksConsentStatus(YumiConsentStatus.PERSONALIZED);

8.2 支持 GDPR 的平台

统计自 YumiMediationSDK 4.1.0 起。 详细信息请至各平台官网获取。

平台名称 是否支持 GDPR 备注
Unity
Admob
Mintegral
Adcolony
IronSource
Inneractive
Chartboost
InMobi
IQzone
Yumi
AppLovin
Baidu
Facebook 请查阅 Facebook 相关文档
Domob
GDT
Vungle 可在 Vungle 后台设置
OneWay
BytedanceAds
ZplayAds
Show all projects by yumimobi
