NoiseRings

NoiseRings is a noisy emanating ring effect for Unity adapted with permission from the VR music video experience Chorus. Tested with Unity 2018.3.0f2.

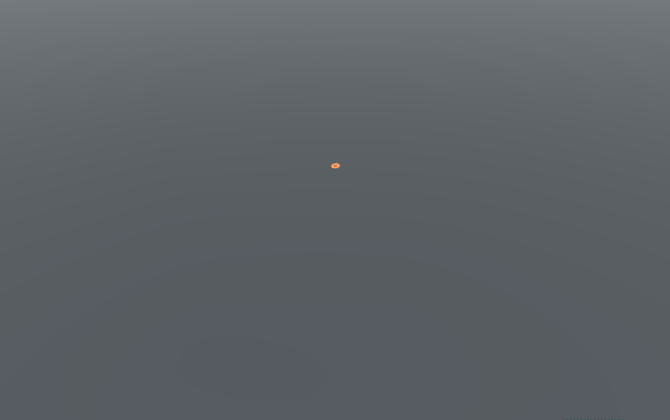

Noisy rings emanate from a central source

Usage

An example is provided in Assets/Example/ExampleScene.unity. Attach a NoiseRingSource component to the GameObject you would like the noise rings to emanate from. For the NoiseRingSource to render correctly the UpdateShaderGlobals component must be attached to a GameObject in the scene. The noise ring animation can be triggered by calling Trigger() on the NoiseRingSource.

Settings

Name Type Description
Number Of Segments int Number of segments in the generated ring mesh. Increase this value if the rings appear too jagged.
Number Of Rings int Number of rings to emanate when the animation is triggered.
Radial Offset float Radial distance between the rings when emanated. This allows you to control how far apart the rings appear to be spaced. Note that the distance will shrink as the animation progresses and the rings will converge at the end.
Line Texture Texture2D Texture to use for rendering the ring lines. The texture will be stretched horizontally around the circumference of the ring.
Color Color Line color.
Multiplier float Line color multiplier.
Line Width float Line width. This is scaled with the transform’s z scale value.
Noise Scale float Scale of the noise applied to the rings. Higher is bumpier, lower is smoother.
Noise Height float How much the noise affects the height of the rings.
Detail Noise Scale float Scale of the detail noise applied to the rings. Higher is bumpier, lower is smoother.
Detail Noise Height float How much the detail noise affects the height of the rings.
Speed float Speed at which the noise changes.

Animation Settings

Name Type Description
Animation Duration float Total duration in seconds for the animation to complete after being triggered.
End Radius float The final radius the rings will reach and converge at.
Intensity Curve AnimationCurve Curve that determines how much the noise affects the rings as they progress outward.
Max Height float Maximum height above the ground the rings will reach.
Height Curve AnimationCurve Curve that determines the height of the rings relative to the max height as they progress outward.

Public Methods

Name Return Type Description
Trigger() void Triggers the animation.
EndAnimation() void Ends the animation early.
AnimationDuration() float Returns the animation duration.
