Bezier Pathing Tool

BezierPathingTool

A simple and easy to use bezier pathing tool for the Unity game engine. Interpolates position and rotation. Each bezier segment can be controled with a speed and a speed curve.

Instructions

  • Drag BezierPoints script onto gameobject you want to have pathing for
  • Setup path using the inspector and/or handles in editor

Note: Animation curves for speed only supports 2 (beginning and end) keyframe points

Movement can be controlled through the Unity inspector or code with:

  • autoLerp - Automatically move the gameobject along the path (stops at the end if lerpBackwards is not set)
  • lerpBackwards - Moves gameobject in reverse along path if autoLerp is set
  • looping - Repeats the movement of the gameobject repeatly by toggling lerpBackwards when the start or end of the path has been reached
  • lerpValue - Can be modified so the object would at at a certain point along the path

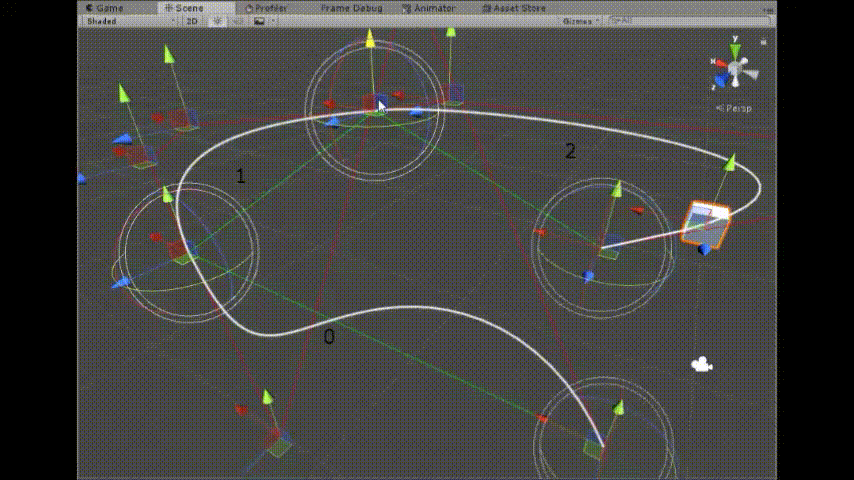

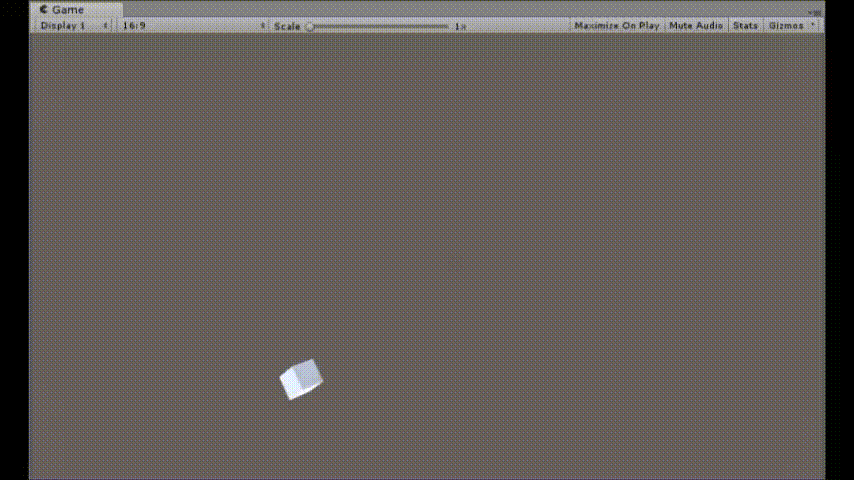

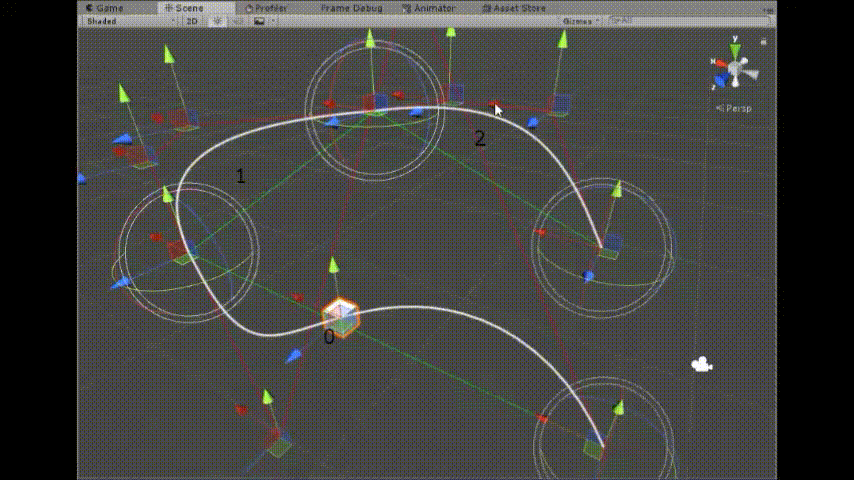

Examples

Improvements?

Option to normalize the speed of movement of the whole path by taking into account of each bezier curve length used to create the path.
