Automatic .proto files compilation in Unity project to C# as you edit them, plus other Protobuf utilities related to Unity.

Unknown VersionOtherUpdated 18 days agoCreated on July 6th, 2017
Go to source

protobuf-unity

settings

Do you want to integrate protobuf as a data class, game saves, message to the server, etc. in your game? Now you can put those .proto files directly in the project, work on it, and have the editor script in here generate the classes for you.

Installation

  1. Install protoc on the machine. This plugin does not include protoc command and will try to run it from your command line (via .NET System.Diagnostics.Process.Start). Please see https://github.com/google/protobuf and install it. Confirm with protoc --version in your command prompt/terminal.
  2. Put files in your Unity project. This is also Unity Package Manager compatible. You can pull from online to your project directly.
  3. You can access the settings in Preferences > Protobuf. Here you need to put a path to your protoc executable.

settings

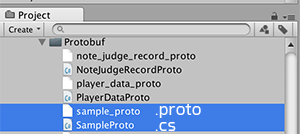

As soon as you import/reimport/modify (but not moving) .proto file in your project, it will compile only that file to the same location as the file. If you want to temporary stop this there is a checkbox in the settings, then you can manually push the button in there if you like. Note that deleting .proto file will not remove its generated class.

Overview

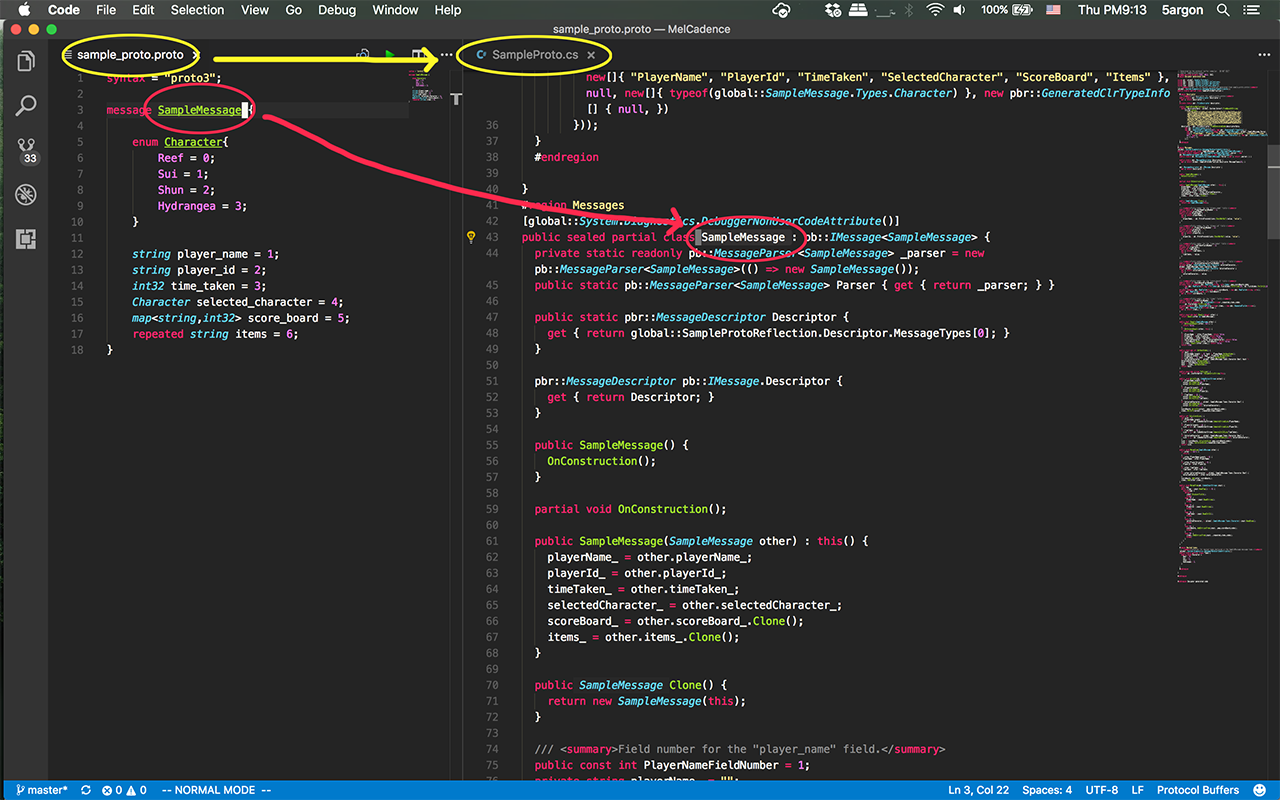

  1. When you write a .proto file normally you need to use the protoc command line to generate C# classes. This plugin automatically find all your .proto files in your Unity project, generate them all, and output respective class file at the same place as the .proto file. It automatically regenerate when you change any .proto file. If there is an error the plugin will report via the Console.

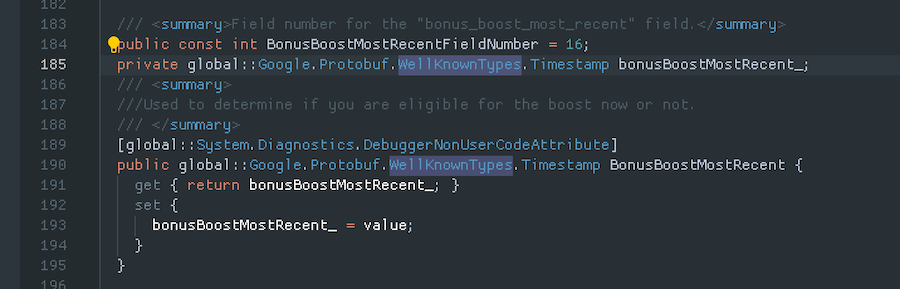

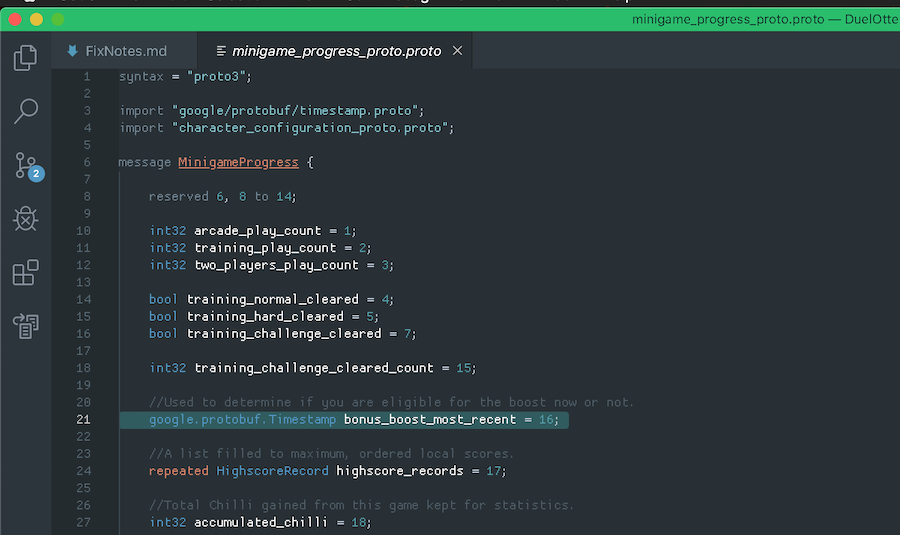

  2. You could use import statement in your .proto file, which normally looks for all files in --proto_path folders input to the command line. (You cannot use relative path such as ../ in import) With protobuf-unity, --proto_path will be all parent folders of all .proto file in your Unity project combined. This way you can use import to refer to any .proto file within your Unity project. (They should not be in UPM package though, I used Application.dataPath as a path base and packages aren’t in here.) Also, google/protobuf/ path is usable. For example, utilizing well-known types or extending custom options.

  3. Your generated class will then contains using Google.Protobuf usage, so additionally you have to add Google.Protobuf.dll precompiled library in your Unity project or link to your asmdef. This plugin itself doesn’t need it, and I didn’t bundle the dll along with this.

Why Protobuf?

  • Smaller size, no big luggages like type information when if you used System.Serializable + BinaryFormatter.
  • You could use Unity’s ScriptableObject, but one well-known gotchas is that Unity can’t serialize Dictionary. Here you could use map<,> in protobuf together with available protobuf types. Any and Oneof could be very useful too.
  • System.Serializable is terrible on both forward and backward compatibility unpredictably, may affect your business badly. (e.g. you wanna change how your game’s monetization works, that timed ads that was saved in the save file is now unnecessary, but because inflexibility you have to live with them forever in the code.)
  • For Unity-specific problem, just rename your asmdef and the serialized file is now unreadable without binder hacks because BinaryFormatter needs fully qualified assembly name.
  • Protobuf is flexible that it is a generic C# library, and the serialized file could potentially be read in other languages like on your game server. For more Unity-tuned serialization, you may want to check out Odin Serializer.
  • Protobuf-generated C# class is powerful. It comes with sensible partial and some useful data merging methods which otherwise would be tedious and buggy for a class-type variable. (e.g. it understands how to handle list-like and dictionary-like data, the repeated field and map field.)
  • Programming in .proto to generate a C# class is simply faster and more readable than C# to get the same function. (e.g. has properties, null checks, bells and whistles, and not just all C# public fields.)

Problem with iOS + IL2CPP

Now that you can’t use mono backend anymore on iOS, there is a problem that IL2CPP is not supporting System.Reflection.Emit. Basically you should avoid anything that will trigger reflection as much as possible.

Luckily the most of core funtions does not use reflection. The most likely you will trigger reflection is protobufClassInstance.ToString() (Or attempting to Debug.Log any of the protobuf instance.) It will then use reflection to figure out what is the structure of all the data to print out pretty JSON-formatted string. To alleviate this you might override ToString so that it pull the data out to make a string directly from generated class file’s field. I am not sure of other functions that might trigger reflection.

You should see the discussion in this and this thread. The gist of it is Unity failed to preserve some information needed for the reflection and it cause the reflection to fail at runtime.

And lastly the latest protobuf (3.6.0) has something related to this issue. Please see https://github.com/google/protobuf/blob/master/CHANGES.txt So it is recommended to get the latest version!

Some more notes about Protocol Buffer

For complete understanding I suggest you visit Google’s document but here are some gotchas you might want to know before starting.

  • Use CamelCase (with an initial capital) for message names, for example, SongServerRequest. Use underscore_separated_names for field names – for example, song_name.
  • By default of C# protoc, the underscore_names will become PascalCase and camelCase in the generated code.
  • .proto file name matters and Google suggests you use underscore_names.proto. It will become the output file name in PascalCase. (Does not related to the file’s content or the message definition inside at all.)
  • The comment in your .proto file will carry over to your generated class and fields if that comment is over them. Multiline supported.
  • Field index 1 to 15 has the lowest storage overhead so put fields that likely to occur often in this range.
  • The generated C# class will has sealed partial. You could write more properties to design new access or write point.
  • You cannot use enum as map's key.
  • You cannot use duplicated enum name even if they are not in the same type. You may have to prefix your enum especially if they sounded generic like None.
  • It’s not int but int32. And this data type is not efficient for negative number. (In that case use sint32)
  • If you put // comment (or multiline) over a field or message definition, it will be transferred nicely to C# comment.
  • It is possible to generate a C# namespace.

project

code compare

ProtoBinaryManager

This is a Unity-specific utility to deal with physical file save-load of your generated protobuf class. This is perfect for game saves so you can load it from binary on the next start up. It has 2 versions, a completely static utility class and an abstract version which requires some generic typing.

The point of generic version is that, by providing your Protobuf-generated class T in the type parameter, you will get a manager just for that specific class T to easily save and load Protobuf data to disk and back to memory, plus an extra static “active slot” of that T for an even easier management of loaded data. (So you don’t load it over and over, and save when necessary.) The most common use of this active slot is as a local game saves, since nowadays mobile games are single-save and there is usually no explicit load screen where you choose your save file. There are methods you can use to implement other game save schemes. And because you subclass it, it open ways for your validation logic which would be impossible with just the static utility version.

It also contains some basic C# AES encryption, I think almost everyone wants it even though you are likely too lazy to separate key and salt from your game’s code. At least it is more difficult for the player to just open the serialized protobuf file with Note Pad and see exactly where his money variable is.

//Recommended naming is `LocalSave`. The LocalSave 2nd type param will give you magic `static` access point later.
public class LocalSave : ProtoBinaryManager<T, LocalSave> {
    //Implement required `abstract` implementations...
}

// Then later you could :

//`.Active` static access point for your save data. Automatic load from disk and cache. `Gold` is a property in your generated `T` class from Protobuf.
LocalSave.Active.Gold += 5555;

//.Save easy static method to save your active save file to the disk.
LocalSave.Save();

//When you start the game the next time, LocalSave.Active will contains your previous state because .Active automatically load from disk.

//Other utilities provided in `.Manager` static access point.
LocalSave.Manager.BackupActive();
LocalSave.Manager.ReloadActive();

Special post processor by custom options (WIP)

There are some problems with Protobuf-generated C# code that I am not quite content with :

  • The generated properties are all public get and public set, this maybe not desirable. For example your Gem property could be modified by everyone and that’s bug-prone. You probably prefer some kind of PurchaseWithGem(iapItem) method in your partial that decreases your Gem and keep the setter private.
  • The class contains partial, I would like to use partial feature and don’t want to make a completely new class as a wrapper to this protobuf-generated class. It would be easier to handle the serialization and data management. Also I don’t want to redo all the protobuf-generated utility methods like MergeFrom or deep Clone.
  • Some fields in proto like map are useful as Unity couldn’t even serialize Dictionary properly, but it is even more likely than normal fields that you don’t want anyone to access this freely and add things to it. Imagine a map<string,string> describing friend’s UID code to the string representation of DateTime of when they last online. It doesn’t make sense to allow access to this map because string doesn’t make sense. You want it completely private then write a method accessor like RememberLastOnline(friend, dateTime) to modify its value, and potentially call the save method to write to disk at the same time.
  • These unwanted accessors show up in your intellisense and you don’t want to see them.

So I want some more control over the generated C# classes. One could utilize the Compiler Plugin feature, but I think it is overkill. I think I am fine with just some dumb RegEx replace over generated C# classes in Unity as a 2nd pass.

The next problem is how to select some fields or message to be triggered by this post-processing. It will be by custom options feature. In the folder Runtime/CustomOptions, there is a protobuf_unity_custom_options.proto file that extends the options to Protobuf.

  • If you use protobuf-unity by copying the whole thing into your project, it will be in your import scope already, plus protobuf-unity will generate its C# counterpart.
  • If you use protobuf-unity via UPM include, I don’t want to deal with path resolving to the package location so protoc knows where the protobuf_unity_custom_options.proto is. A solution is just copy this .proto file to your project. protobuf-unity will then generate its C# file again locally in your project. protobuf-unity has an exception that it will not generate C# script for .proto coming from packages.

You then use import "protobuf_unity_custom_options.proto"; on the head of .proto file that you want to use the custom options. The generated C# file of this class of yours, will then have a reference to the C# file of protobuf_unity_custom_options.proto (namely ProtobufUnityCustomOptions.cs)

Right now this custom options gives you 1 message option private_message and 1 field option private. Unfortunately I think options can’t be just a flag, so they are boolean and you have to set them to true.

syntax = "proto3";
import "enums.proto";
import "protobuf_unity_custom_options.proto";

message PlayerData {

    option (private_message) = true; // Using message option

    string player_id = 1;
    string display_name = 2 [(private)=true]; // Using field option
}

private would apply tighter accessor to only one field, private_message apply to all fields in the message. But yeah, I didn’t work on that yet. I just want to write these documentation as I code. 😛

License

As this will need Protobuf you need to follow Google’s license here : https://github.com/google/protobuf/blob/master/LICENSE. For my own code the license is MIT.
