Prefab Order Bug with Unity Scripted Importers

Unknown VersionMIT LicenseUpdated 38 days agoCreated on October 9th, 2019
Go to source

ScriptedImporter_PrefabOrder

Prefab Order Bug with Unity Scripted Importers

This project contains a simple Scripted Importer (MyScriptedImporter.cs) with these two game objects:

  1. An empty main game object (this is the parent)
  2. An instantiated prefab object (this is the child)

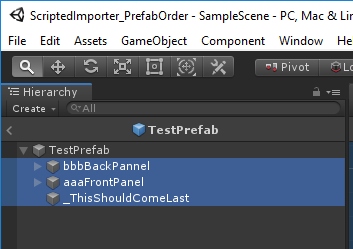

The referenced prefab, TestPrefab, itself has 3 child objects with the following order:

  1. bbbBackPanel
  2. aaaFrontPanel
  3. _ThisShouldComeLast

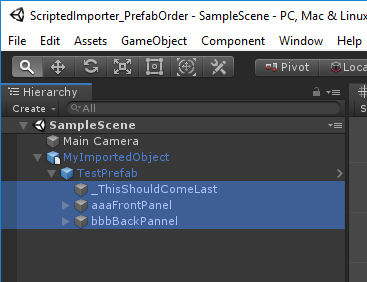

We would like this order of child objects to be preserved when we instantiate the TestPrefab and attach it to the main object through our scripted importer. However, the child objects are ordered alphabetically.

  1. _ThisShouldComeLast
  2. aaaFrontPanel
  3. bbbBackPanel

Some Unity components, like UI elements, are rendered in the order they appear in the scene hierarchy so the re-ordered children can be the source of bugs.

To Reproduce

In order to reprodcue the bug you’ll want to run the scripted importer and view the resulting asset in the scene.

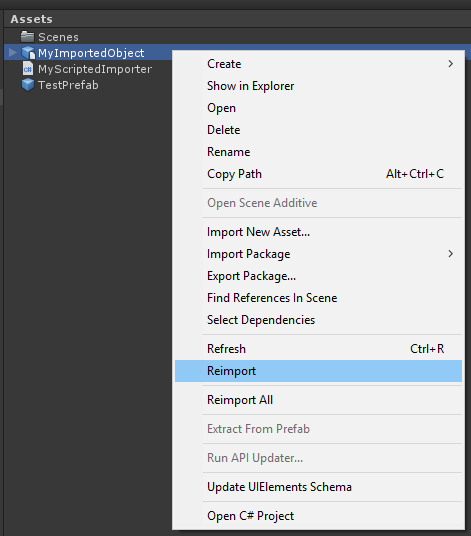

  1. Reimport Assets/MyImportedObject. This uses the scripted importer that attaches a prefab instance.
  2. Drag Assets/MyImportedObject in the scene hierarchy
  3. Expand MyImportedObject in the scene hierarchy to see the TestPrefab children are out of order.

This depot is currently using Unity 2019.2.8f1. This behavior was first noticed with 2018.3.0f2.
