Naughty Attributes

NaughtyAttributes

Attribute Extensions for Unity

System Requirements

Unity 2017.1.0 or later versions. Feel free to try older version. Don’t forget to include the NaughtyAttributes namespace.

Drawer Attributes

Provide special draw options to serialized fields. A field can have only one DrawerAttribute. If a field has more than one, only the bottom one will be used.

Slider

The same as Unity’s Range attribute. There is no difference between the two, you can use whatever you like, I just wanted to support a custom slider attribute.

code

inspector

MinMaxSlider

A double slider. The min value is saved to the X property, and the max value is saved to the Y property of a Vector2 field.

code

inspector

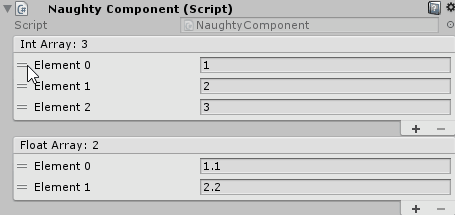

ReorderableList

Provides array type fields with an interface for easy reordering of elements.

code

inspector

Button

A method can be marked as a button. A button appears in the inspector and executes the method if clicked. Works both with instance and static methods.

code

inspector

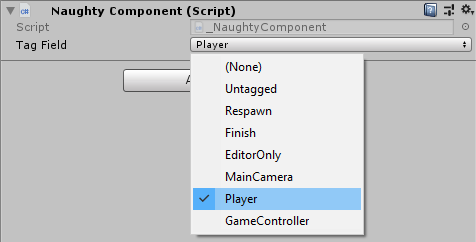

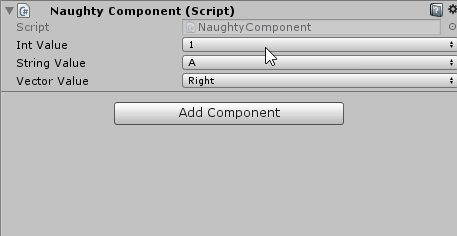

Provides an interface for dropdown value selection.

code

inspector

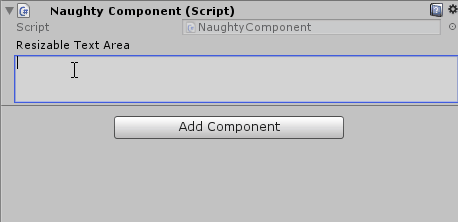

ResizableTextArea

A resizable text area where you can see the whole text. Unlike Unity’s Multiline and TextArea attributes where you can see only 3 rows of a given text, and in order to see it or modify it you have to manually scroll down to the desired row.

code

inspector

ShowNonSerializedField

Shows non-serialized fields in the inspector. All non-serialized fields are displayed at the botton of the inspector before the method buttons. Keep in mind that if you change a non-static non-serialized field in the code - the value in the inspector will be updated after you press Play in the editor. There is no such issue with static non-serialized fields because their values are updated at compile time. It also supports only value types and string (int, long, float, double, string, Vector2, Vector3, Vector4, Color, Bounds, Rect).

code

inspector

ShowNativeProperty

Shows native C# properties in the inspector. All native properties are displayed at the bottom of the inspector after the non-serialized fields and before the method buttons. It also supports only value types and string (int, long, float, double, string, Vector2, Vector3, Vector4, Color, Bounds, Rect).

code

inspector

ReadOnly

Makes a field read only.

code

inspector

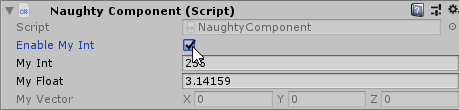

EnableIf / DisableIf

Thanks to Chris Lewis

code

inspector

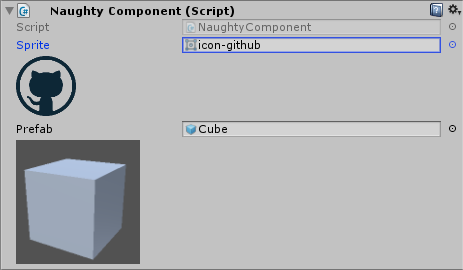

ShowAssetPreview

Shows the texture preview of a given asset (Sprite, Prefab…)

code

inspector

ProgressBar

Thanks to Shinao

code

inspector

DrawCondition Attributes

Can be used to specify when a given serialized field is visible, and when not. A field can have only one DrawConditionAttribute.

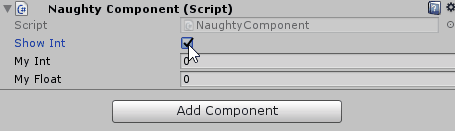

ShowIf / HideIf

code

inspector

Group Attributes

Serialized fields can be grouped in different groups. A field can have only one GroupAttribute. If a field has more than one, only the bottom one will be used.

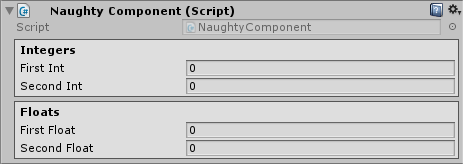

BoxGroup

Surrounds grouped fields with a box.

code

inspector

Validator Attributes

Used for validating the fields. A field can have infinite number of validator attributes.

MinValue / MaxValue

Clamps integer and float fields.

code

inspector

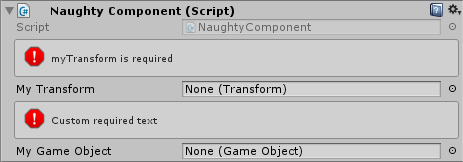

Required

Used to remind the developer that a given reference type field is required.

code

inspector

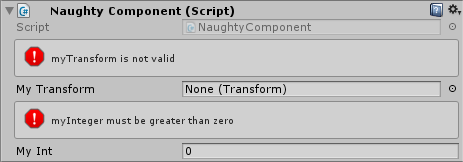

ValidateInput

The most powerful ValidatorAttribute.

code

inspector

Meta Attributes

Give the fields meta data. A field can have infinite number of meta attributes.

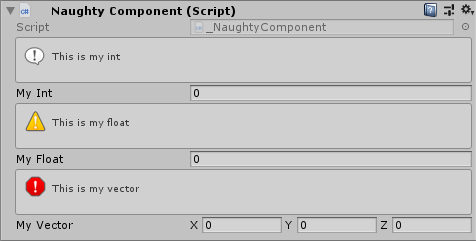

InfoBox

Used for providing additional information.

code

inspector

OnValueChanged

Detects a value change and executes a callback. Keep in mind that the event is detected only when the value is changed from the inspector. If you want a runtime event, you should probably use an event/delegate and subscribe to it.

code

How to create your own attributes

Lets say you want to implement your own [ReadOnly] attribute.

First you have to create a ReadOnlyAttribute class

[AttributeUsage(AttributeTargets.Field, AllowMultiple = false, Inherited = true)]
public class ReadOnlyAttribute : DrawerAttribute
{
}

Then you need to create a drawer for that attribute

[PropertyDrawer(typeof(ReadOnlyAttribute))]
public class ReadOnlyPropertyDrawer : PropertyDrawer
{
	public override void DrawProperty(SerializedProperty property)
	{
		GUI.enabled = false;
		EditorGUILayout.PropertyField(property, true);
		GUI.enabled = true;
	}
}

Last, in order for the editor to recognize the drawer for this attribute, you have to press the NaughtyAttributes/Update Attributes Database menu item in the editor.
