A11YTK

AR/VR context aware, spatialized subtitles for Unity

Installation

Unity Package Manager

https://docs.unity3d.com/Packages/com.unity.package-manager-ui@2.0/manual/index.html

Git

{
  "dependencies": {
    "com.a11ytk.a11ytk": "https://github.com/a11ytk/a11ytk.git#upm",
    ...
  }
}

Include tests

{
  "dependencies": {
    ...
  },
  "testables": ["com.a11ytk.a11ytk"]
}

Install TextMeshPro and then import Essential Resources and Examples and Extras.

Quick Start

Attach a SubtitleAudioSourceController or SubtitleVideoPlayerController component to any GameObject that has an AudioSource or VideoPlayer component respectively.

Using an SRT file, either paste the contents or drag the asset reference into the Subtitle Text or Subtitle Text Asset property respectively.

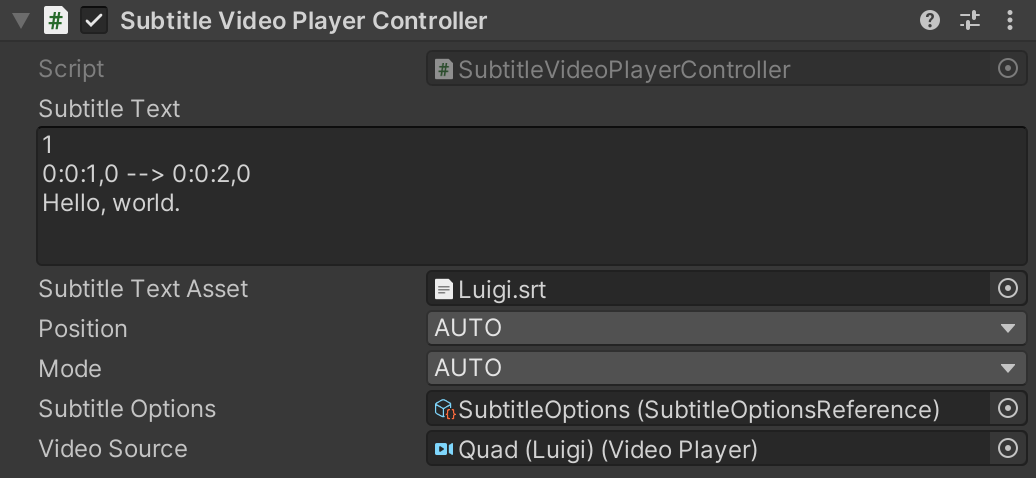

Create a Subtitle Options asset via the create asset menu via A11YTK > Subtitle Options and populate with the values seen in the screenshot below.

Drag the Subtitle Options asset into the Subtitle Options property of the SubtitleAudioSourceController or SubtitleVideoPlayerController component.

Documentation

SubtitleOptions

Properties

Property Description Default
Enabled Toggle subtitles on or off. Off
Default Position Position subtitles should render on screen. Either TOP or BOTTOM BOTTOM
Default Type Type of subtitle. Either SCREEN, HEADSET, or OBJECT HEADSET
Screen Padding Percentage of screen to be used as padding around subtitles. 10
Font Size Subtitle font size. 60
Font Color Subtile font color White
Font Asset TextMeshPro font to render subtitle with. Null
Font Material TextMeshPro material to use with the TextMeshPro font. Null
Text Alignment TextMeshPro text alignment property. MidLine
Show Background Toggle subtitle background on or off. On
Background Color Background color that appears behind subtitle text Black
Background Sprite Optional 9-splice sprite. Null
Background Padding Padding around the text inside the background. 30

Methods

Save

Save current state of the SubtitleOptions asset to file path.

using A11YTK;
using UnityEngine;

public class SubtitleOptionManager : MonoBehaviour
{

    private const string SUBTITLE_OPTIONS_FILENAME = "subtitle_options.json";

    [SerializeField]
    private SubtitleOptionsReference _subtitleOptions;

    ...

    public void OnDisable()
    {

        _subtitleOptions.Save(SUBTITLE_OPTIONS_FILENAME);

    }

}
Load

Load saved state from a local file into the SubtitleOptions asset.

using A11YTK;
using UnityEngine;

public class SubtitleOptionManager : MonoBehaviour
{

    private const string SUBTITLE_OPTIONS_FILENAME = "subtitle_options.json";

    [SerializeField]
    private SubtitleOptionsReference _subtitleOptions;

    public void OnEnable()
    {

        _subtitleOptions.Load(SUBTITLE_OPTIONS_FILENAME);

    }

    ...

}
Delete

Delete local file.

_subtitleOptions.Delete("subtitle_options.json");

Contributors

Core Team

Scott Doxey Luigi Cody Nicastro Mo Kakwan

Contributing

Be sure to review the Contributing Guidelines before logging an issue or making a pull request.

License

MIT
