Unity3D Path Tracer by aceyan - 5

Shaders & Effects

Monte Carlo Path Tracer in Unity3D using compute shader

Unity 2018.3.7f1Unknown LicenseUpdated 92 days agoCreated on June 20th, 2020
Go to source

Monte Carlo Path Tracer in Unity3D using compute shader

Unity 2018.3.7f1 (win10 64-bit)

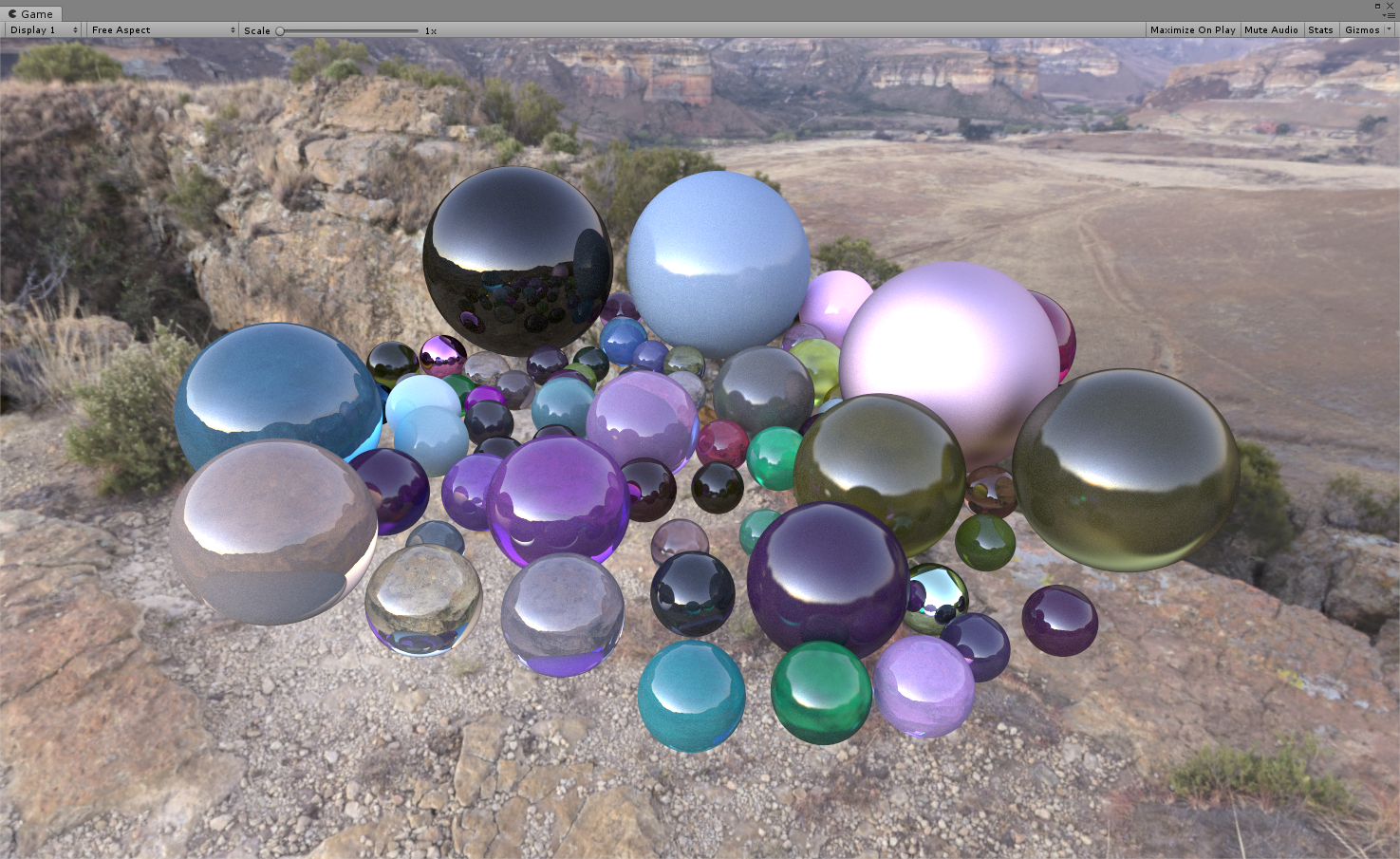

DemoScreenShot

Features:

  1. Path Tracing Rendering based on Monte Carlo integration
  2. Emprical BRDF and BTDF
  3. Diffuse, specular, refraction, Fresnel
  4. Hemisphere Sampling, importance sampling
  5. Fuzzy glassy ball

Principle:

Rendering Equation

DemoScreenShot

Monte Carlo Integration

DemoScreenShot

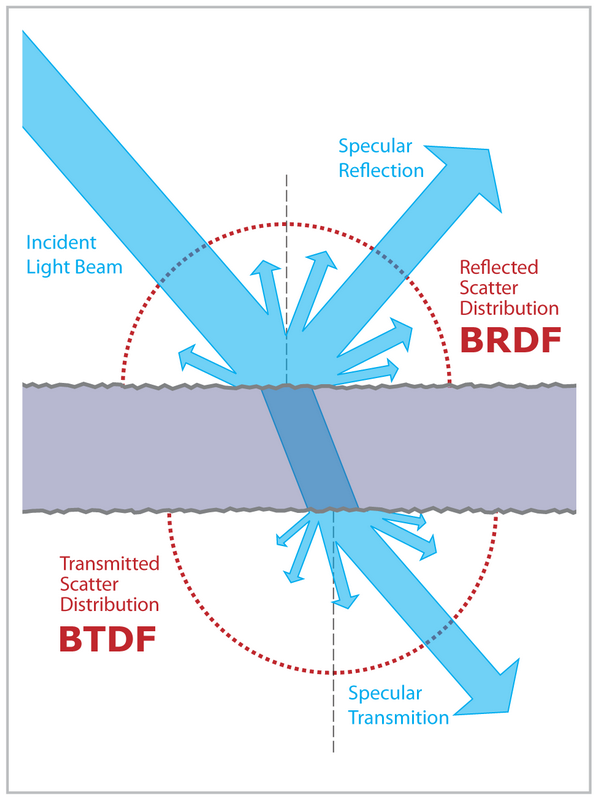

BSDF = BRDF + BTDF

DemoScreenShot

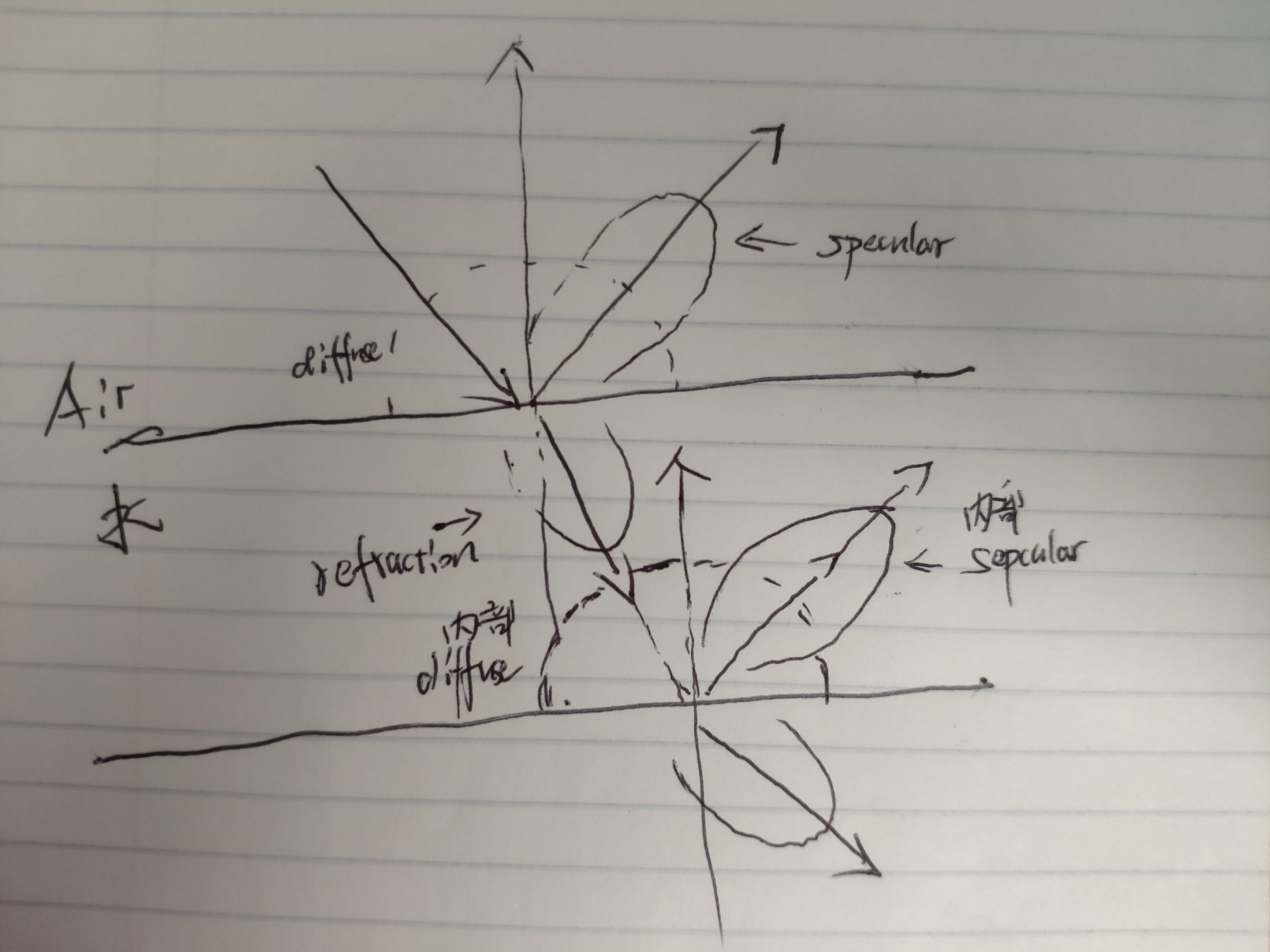

Energy Distribution

DemoScreenShot

BRDF and importance sampling

Importance-Sampling Lambert

DemoScreenShot

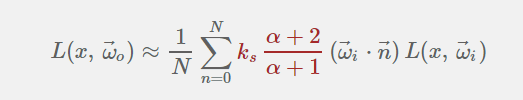

Importance-Sampling Phong

DemoScreenShot

BTDF and importance sampling

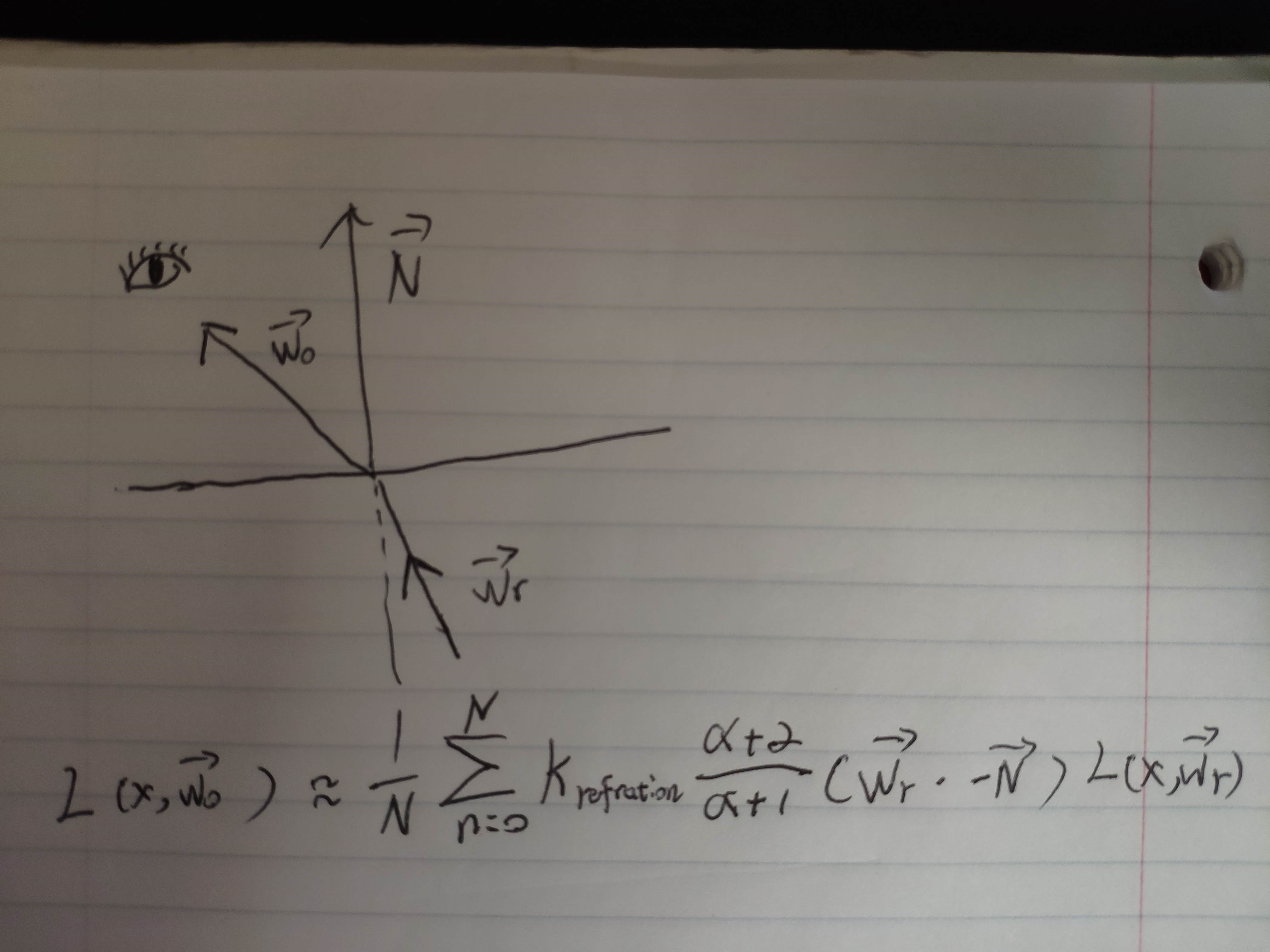

Importance-Sampling Phong for refraction

DemoScreenShot

Reference:

GPU Path Tracing in Unity – Part 2
Rendering Equation
Monte Carlo Methods in Practice
蒙特·卡罗(Monte Carlo)积分详解
Using the Modified Phong Reflectance Model for Physically Based Rendering (1994)
Uniform Sampling on unit Hemisphere
Generating uniformly distributed numbers on a sphere
Reflection, Refraction (Transmission) and Fresnel
Webgl中采用PBR的实时光线追踪
Image-based rendering of spatially-varying BSDF
