A Toon Shader in Unity Universal Render Pipeline.

Unity 2020.3.15f2c1MIT LicenseUpdated 36 days agoCreated on July 28th, 2020
Go to source

URP Toon Shader

Introduction

基于URP的通用卡通着色器,使用URP标准的PBR模型(Minimalist CookTorrance BRDF)进行改造,纯代码实现,没有使用ShaderGraph,兼容SPR Batch.
Universal Toon shader based on URP , use PBR lighting(Minimalist CookTorrance BRDF) in URP,use code without ShaderGraph,SPR Batch Compatible.

  • Unity 2020.2.0+、URP 10.2.2+

image-UnityChan

image-UnityChan2

Properties

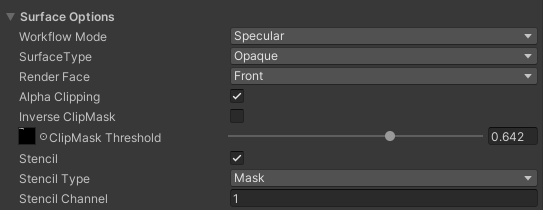

SurfaceOptions

image-SurfaceOptions

  • Workflow Mode : Specular or Metallic
  • SurfaceType : Opaque or Transparent
  • Render Face : Front Back Both (For Forward Pass)
  • Alpha Clipping : ClipMask(裁剪遮罩),Threshold(阈值)
  • Stencil : 模板测试,用于实现眼睛的遮挡效果,参考UTS(Stencil Test,used to achieve transparent effects for toon eyes,reference from UTS)
  • Stencil Type (Set Material RenderQueue to Mask < Out).
    Mask
    Stencil {
    Ref[_StencilChannel]
    Comp Always
    Pass Replace
    Fail Replace
    }
    Out
    Stencil {
    Ref[_StencilChannel]
    Comp NotEqual
    Pass Keep
    Fail Keep
    }
    Stencil Channel : 1-255

Base

image-Base

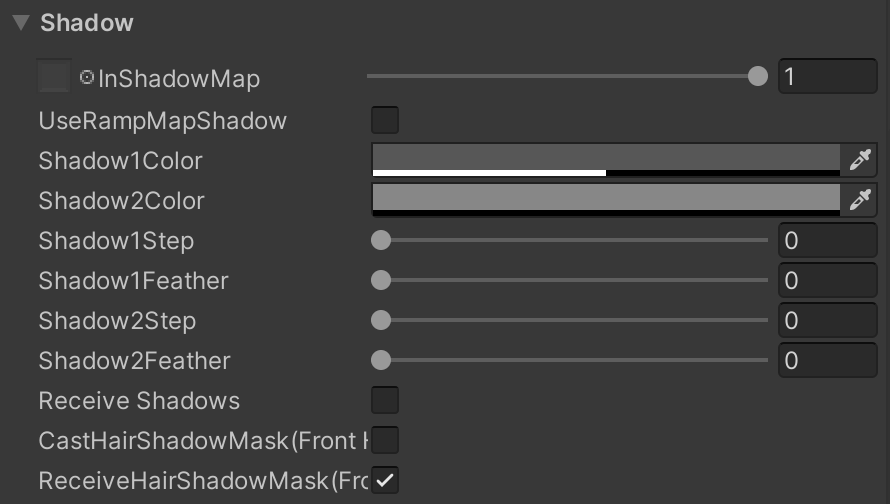

Shadow

image-Shadow

  • UseRampMapShadow : 使用RampMap控制阴影衰减。
  • VOffset : RampMap采样的V坐标
  • Shadow1Color :第一层阴影颜色
  • Shadow2Color :第二层阴影颜色
  • Shadow1Step : 第一层阴影阈值
  • Shadow1Feather : 第一层阴影羽化值
  • Shadow2Step : 第二层阴影阈值
  • Shadow2Feather : 第二层阴影羽化值
  • EnableInShadowMap : 固定阴影贴图
  • Receive Shadow : 接收阴影 (ShadowCoord)
  • CastHairShadowMask (Hair Material) : 投射头发阴影遮罩
  • ReceiveHairShadowMask (Face Material) : 接收头发阴影遮罩

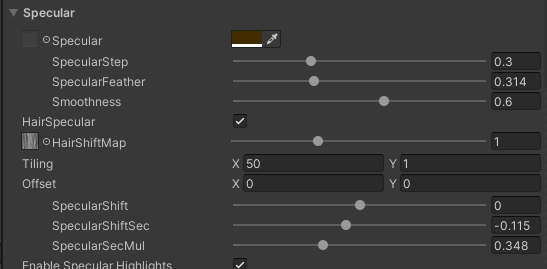

Specular

image-Specular

  • Specular
  • SpecularStep : 高光阈值
  • SpecularFeather : 高光羽化
  • Smoothness : 光滑度
  • HairSpecular : 各向异性头发高光
  • HairShiftMap : 切线偏移图、偏移强度
  • SpecularShift : 第一层高光偏移量
  • SpecularShiftSec : 第二层高光偏移量
  • SpecularSecMul : 第二层高光强度(*Specular)
  • EnablesSpecularHighlights : 是否使用高光

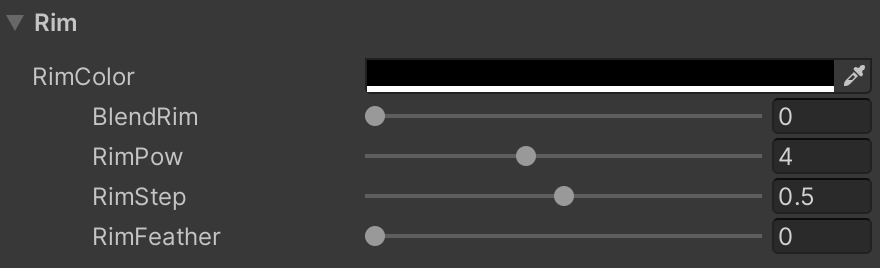

Rim

image-Rim

  • BlendRim : 颜色插值
  • RimColor
  • RimPower : 强度
  • RimStep
  • RimFeather

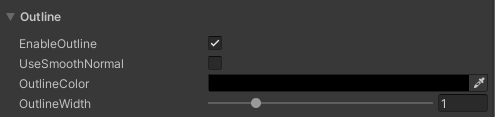

Outline

image-Outline

AdvancedOptions

image-AdvancedOptions

  • Environment Reflections : 是否接收反射
  • Enable GPU Instancing : 使用GPU Instancing合批
  • RenderQueue : 渲染队列

Multi Pass Batch

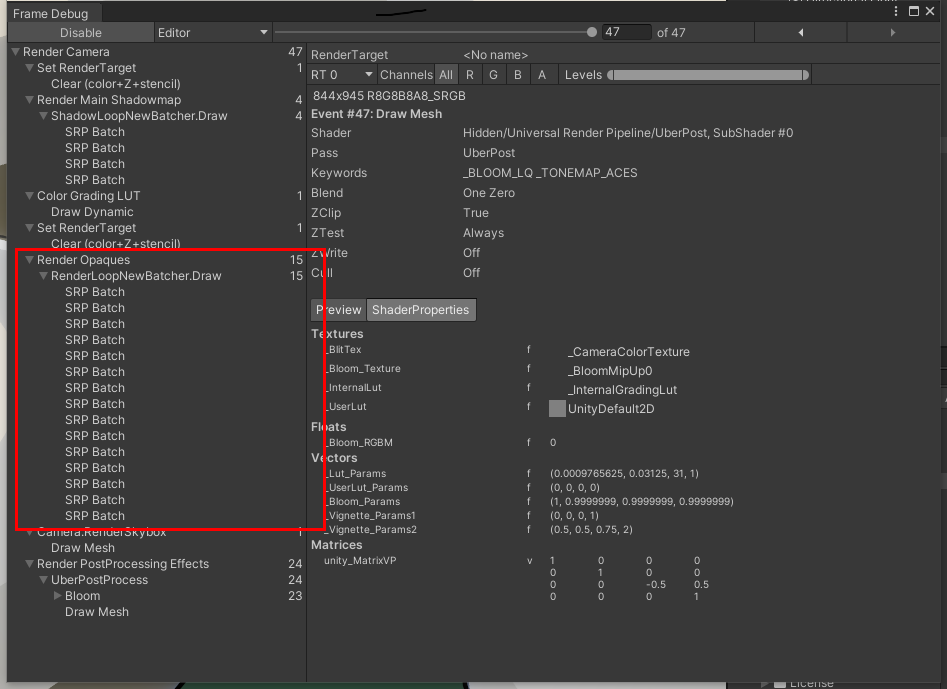

In the default URP, if render multiple pass shaders, the Rendering order like this:
Object1.Pass1-
Objcet1.Pass2-
Object2.Pass1-
Object2.Pass2…
image-BeforeBatch
It will stop SPRBatch.
image-NotSupportBatch

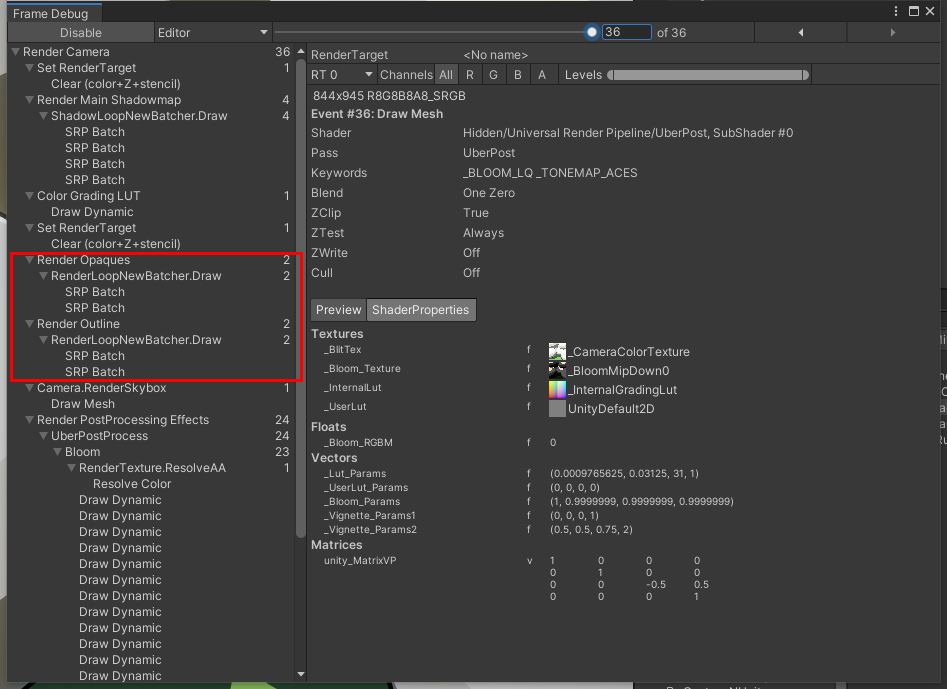

We can change the Rendering order like this:
Object1.Pass1-
Objcet2.Pass1-
Object1.Pass2-
Object2.Pass2…
image-AfterBatch

How ? Use ToonRenderer or RenderFeature :

Use ToonRenderer

1.Create ToonForwardRenderer Asset.
Assets/Create/Rendering/Universal Render Pipeline/ToonForward Renderer

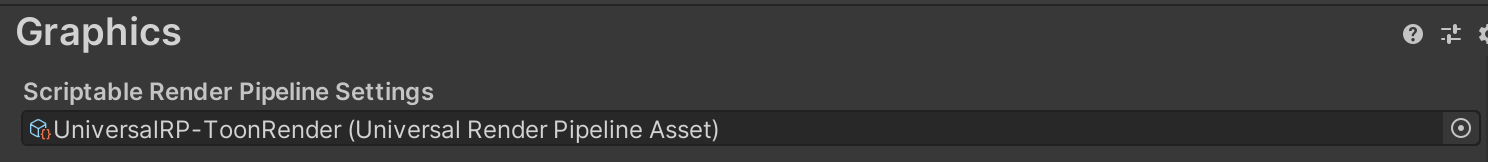

2.Setup “Graphics Setting” and “Quality Setting” to ToonRenderer Assets. image-Setup

Use RenderFeature (Use in default urp,dont need to add in ToonRenderer )

You can also use RenderFeature in default urp.

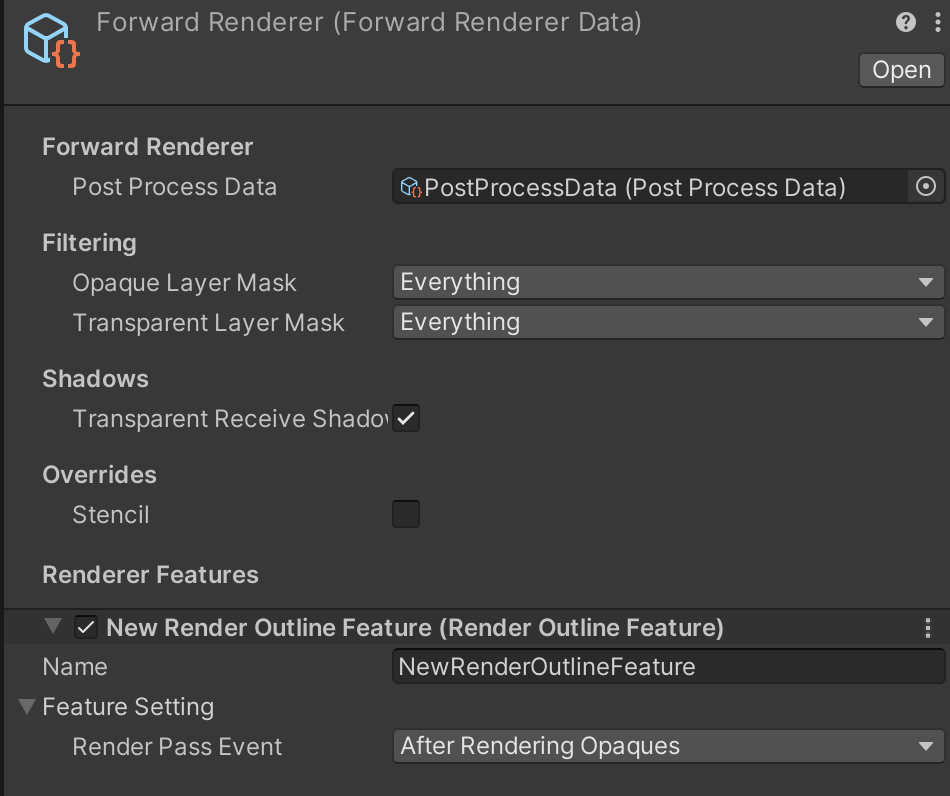

Select ForwardRenderData>Add Renderer Feature>Render Outline Feature.

image-RenderOutline

Reference

https://github.com/unity3d-jp/UnityChanToonShaderVer2_Project
https://github.com/Jason-Ma-233/JasonMaToonRenderPipeline
https://github.com/you-ri/LiliumToonGraph
https://github.com/Kink3d/kShading
https://unity.cn/projects/china-unity-tech-week_linruofeng

Licenses

MIT

“Assets/UnityChan/License”

© Unity Technologies Japan/UCL
