Unity Easing Library Visualisation by noisecrime - 2


Front end visualisation of 40 common easing equations.

Unity 5.4.2f2MIT LicenseUpdated 4 years agoCreated on July 18th, 2017
Go to source

Unity - Easing Library Visualisation

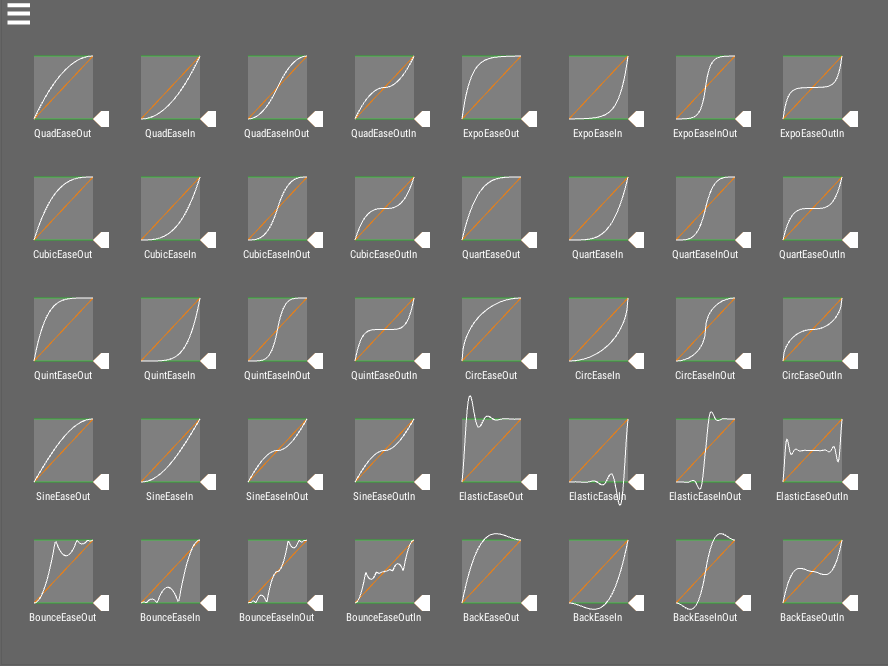

This project provides a front end visualisation to a group of 40 easing equations as easy to understand graphs with real-time animated markers to illustrate the motion. You can change the view from a single graph to all the graphs as well as displaying a column of drawers ( right side of image below ) that as you roll-over with the mouse will ease in or out to see the motion in action.

It contains a comprehensive easing class containing 10 different easing equations with 4 variations of each ( out, in, out-in, in-out ) based on the work of Robert Penner. The easing class can easily be used in your own projects, without any of the demo assets.

The latest version has added support for creating Unity animation curves directly from the ease equations.


Added support to convert ease equations into animation curves.
Added support to display animation curves on ease graphs.
Added Unity Curve Preset Library of ease equations as animation curves.
Update documentation.

gif Screenshot2

Webgl Demo


Forum Page


System Requirements

Unity 5.4.2+


Easing Equations based on the work of Robert Penner ( see - http://robertpenner.com/easing ). Curves library from Burningmime - https://github.com/burningmime/curves. Includes C# implementation of Philip J. Schneider’s least-squares method and Ramer-Douglas-Pueker Line Approximation Algorithm.
