Particle Effect For UGUI (UI Particle)

⚠️ NOTE: Do not use the obsolete tags and branches to reference the package. They will be removed in near future. ⚠️

This plugin provide a component to render particle effect for uGUI in Unity 2018.2 or later.
The particle rendering is maskable and sortable, without Camera, RenderTexture or Canvas.

PRs Welcome

<< Description | Demo | Installation | Usage | Development Note | Change log >>





Description

This plugin uses new APIs MeshBake/MashTrailBake (added with Unity 2018.2) to render particles by CanvasRenderer. You can mask and sort particles for uGUI without Camera, RenderTexture, Canvas.

Compares this “Baking mesh” approach with the conventional approach:
(This scene is included in the package.)

Approach Good Bad Screenshot
Baking mesh
(UIParticle)
Rendered as is.
Maskable.
Sortable.
Less objects.
Requires Unity 2018.2 or later.
Requires UI shaders to use Mask.

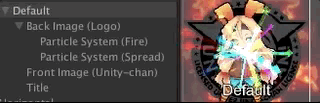

Do nothing Rendered as is. Looks like a glitch.
Not maskable.
Not sortable.
Convert particle to UIVertex
(UIParticleSystem)
Maskable.
Sortable.
Less objects.
Adjustment is difficult.
Requires UI shaders.
Difficult to adjust scale.
Force hierarchy scalling.
Simulation results are incorrect.
Trail, rotation of transform, time scaling are not supported.
Generate heavy GC every frame.
Use Canvas to sort Rendered as is.
Sortable.
You must to manage sorting orders.
Not maskable.
More batches.

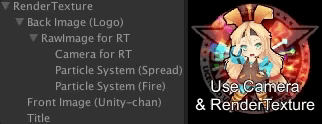

Use RenderTexture Maskable.
Sortable.
Requires Camera and RenderTexture.
Difficult to adjust position and size.
Quality depends on the RenderTexture’s setting.

Features

  • Easy to use: the package is out-of-the-box
  • Sort particle effects with UI
  • No Camera, RenderTexture or Canvas are required
  • Masking with Mask or RectMask2D
  • Support Trail module
  • Change alpha with CanvasGroup
  • No heavy allocation every frame
  • Support overlay, camera space and world space
  • Support changing material property with AnimationClip (AnimatableProperty)





Demo





Installation

Requirement


Using OpenUPM

This package is available on OpenUPM.
You can install it via openupm-cli.

openupm add com.coffee.ui-particle

Using Git

Find the manifest.json file in the Packages folder of your project and add a line to dependencies field.

  • Major version:
    "com.coffee.ui-particle": "https://github.com/mob-sakai/ParticleEffectForUGUI.git"
  • Preview version:
    "com.coffee.ui-particle": "https://github.com/mob-sakai/ParticleEffectForUGUI.git#preview"

To update the package, change suffix #{version} to the target version.

  • e.g. "com.coffee.ui-particle": "https://github.com/mob-sakai/ParticleEffectForUGUI.git#3.0.0",

Or, use UpmGitExtension to install and update the package.

For Unity 2018.2

Unity 2018.2 supports embedded packages.

  1. Download a source code zip file from Releases page
  2. Extract it
  3. Import it under Packages directory in your Unity project





How to play demo

For Unity 2019.1 or later

  1. Open Package Manager window
  2. Select UI Particle package in package list
  3. Click Import Sample button
    demo
  4. The demo project is imported into Assets/Samples/UI Particle/{version}/Demo
  5. Open UIParticle_Demo scene and play it

For Unity 2018.4 or earlier

  1. Select Assets/Samples/UI Particle Demo from menu
  2. The demo project is imported into Assets/Samples/UI Particle/{version}/Demo
  3. Open UIParticle_Demo scene and play it

About Cartoon FX & War Fx Demo





Usage

UIParticle component

UIParticle controls the ParticleSystems that is attached to its own game objects and child game objects.

Properties Screenshot
Ignore Canvas Scale: Ignore the scale of the root canvas. This prevents it from displaying small even in hierarchy scaling mode of ParticleSystem.
Scale: Scale the rendering. When the 3D toggle is enabled, 3D scale (x,y,z) is supported.
AnimatableProperties: If you want update material properties (e.g. _MainTex_ST, _Color) in AnimationClip, use this to mark the changes.
Rendering Order: The ParticleSystems to be rendered. You can change the rendering order and the materials.

NOTE: Press Refresh button to reconstruct rendering order based on children ParticleSystem’s sorting order and z position.



Basically usage

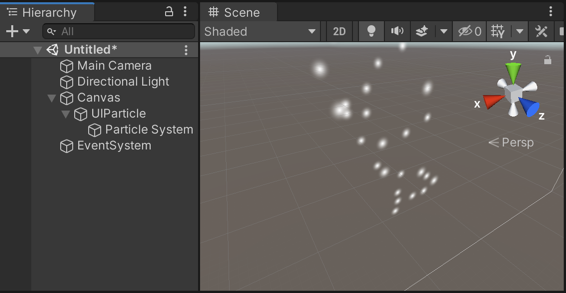

  1. Select Game Object/UI/ParticleSystem to create UIParticle with a ParticleSystem.
    particle
  2. Adjust the ParticleSystem as you like.
    particle1



With your ParticleSystem prefab

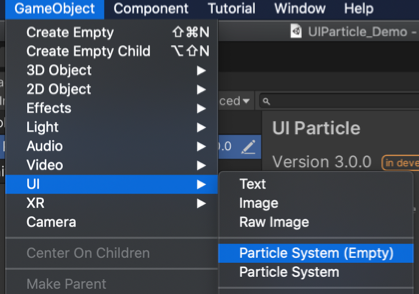

  1. Select Game Object/UI/ParticleSystem (Empty) to create UIParticle.
    empty
  2. Drag & drop your ParticleSystem prefab on UIParticle.
    particle3



With Mask or MaskRect2D component

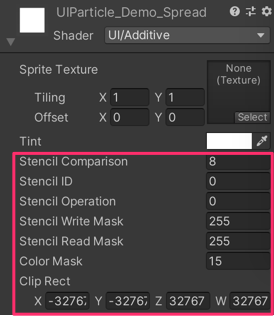

If you want to mask particles, set a stencil supported shader (such as UI/UIAdditive) to material for ParticleSystem.



Script usage

// Instant ParticleSystem prefab with UIParticle on runtime.
var go = GameObject.Instantiate(prefab);
var uiParticle = go.AddComponent<UIParticle>();

// Play/Stop the controled ParticleSystems.
uiParticle.Play();
uiParticle.Stop();





Development Note

Animatable material property

Animation clips can change the material properties of the Renderer, such as ParticleSystemRenderer.
It uses MaterialPropertyBlock so it does not create new material instances.
Using material properties, you can change UV animation, scale and color etc.

Well, there is a component called CanvasRenderer.
It is used by all Graphic components for UI (Text, Image, Raw Image, etc.) including UIParticle.
However, It is NOT a Renderer.
Therefore, in UIParticle, changing ParticleSystemRenderer’s MaterialPropertyBlock by animation clip is ignored.

To prevent this, Use “Animatable Material Property”.
“Animatable Material Property” gets the necessary properties from ParticleSystemRenderer’s MaterialPropertyBlock and sets them to the CanvasRenderer’s material.
