Blockchain 3D: Open Source 3D and VR Blockchain Visualisations
The complete open-source code and assets are available in this repository. If you just want to run the compiled application, visit the download page here for iOS, Android, Linux, MacOS and Windows.
- Getting Started
- Making Changes
Blockchain3D is an open-source multi-platform application to visualise graphs in glorious 3D and virtual reality (VR). The application is built using Unity and C#. The word graph here is used in its mathematical or computing science sense as being a collection of nodes connected by edges. This project is about graph drawing rather than charting:
Blockchain3D is a generic graph drawing tool. Social media provides a good source of graph data: Twitter, Facebook and LinkedIn all contain graph relationships that could be visualised in Blockchain3D.
However, as the name suggests, the current focus of Blockchain3D is to visualise blockchains. Many aspects of blockchains can be represented by graphs. For example, consider Bitcoin. A Bitcoin transaction is a flow of unspent Bitcoin from a set of input addresses to a set of output addresses. This can be drawn as a graph in 3D space:
Install Unity. The project is currently developed with Unity 2018.1.0f2. Later Unity versions should work fine.
The project makes calls to blockchain.info to get the necessary bitcoin data to display. If you intend making very many calls to the blockchain.info site, you will need to apply to them for a free API key to bypass their request limiter. To run the demos and play around, you will not need an API key. In addition, a small amount of bitcoin test data is built in and so the project can also be run completely offline.
Download or clone this repository. All of Blockchain3D is contained in the
B3d folder. To help orientate yourself in the project, note these folders under the top level
Folder Contents B3d ├───Demos Demo scenes organised by graph family (Bitcoin, Ethereum etc) then scene │ ├───Btc │ │ ├───Minimal Bare minumum required to retrieve Bitcoin graph data, with no graphics │ │ └───Ocean Main application with the pretty ocean view and floating 3D graph objects │ ├───Eth Not used yet │ └───GraphML Not used yet | ├───Engine │ ├───Adaptors Adaptors that read source data, formats it to common format │ ├───Cdm Common Data Model that stores the common format adaptor data │ ├───FrontEnd Frontend part that reads Cdm data and presents it to a frontend │ └───Prefabs This folder contains B3dEngineAllInOne.prefab, the main engine | └───Tools Various tools available across all demos and engine
The C# scripts have namespaces matching the above folder structure.
Take a look at the scenes in the folder
\Assets\B3d\Demos\Btc\Ocean\Scenes. Open the scene called

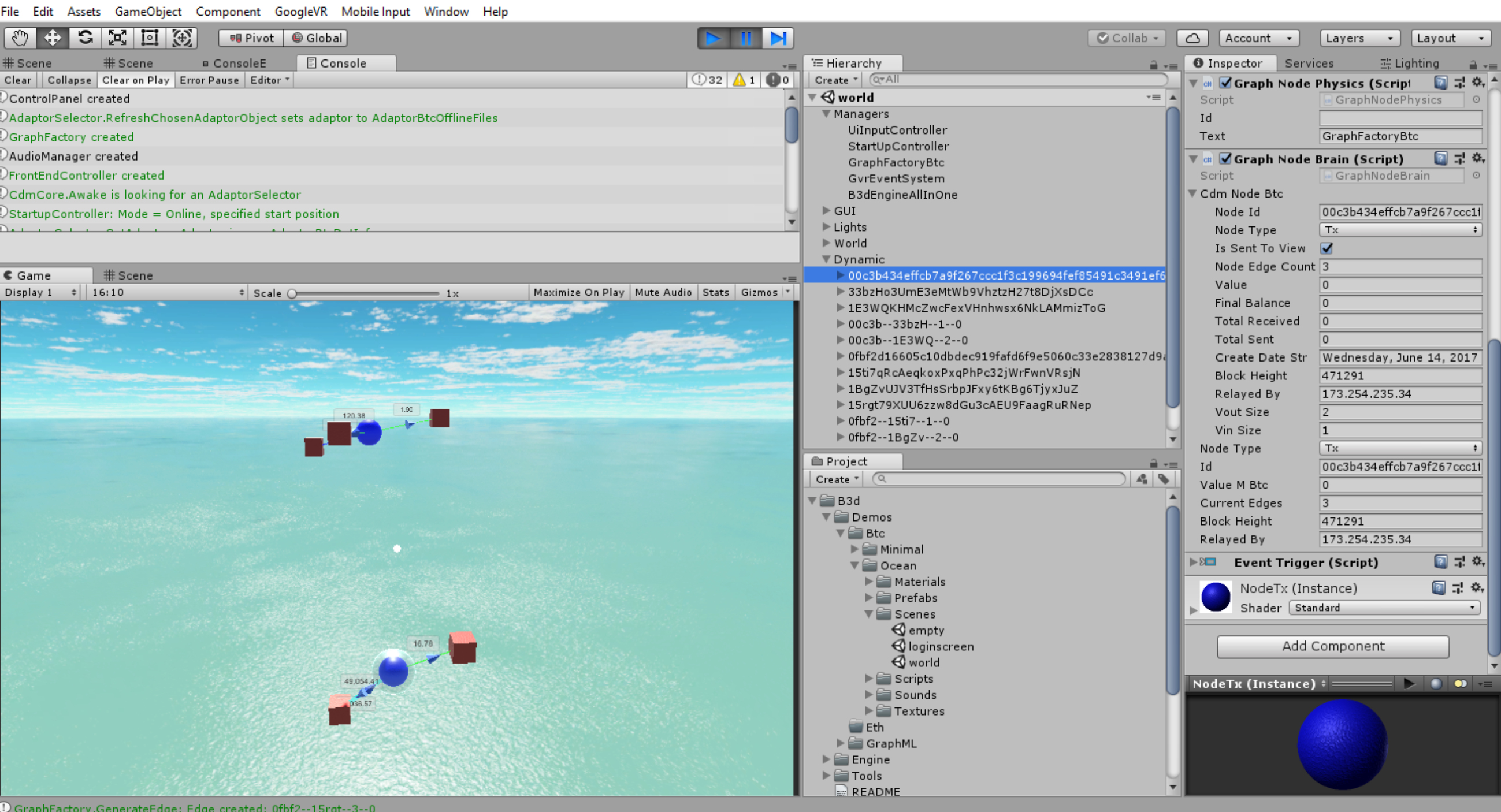

world. Play the scene in the editor. You will see some graph objects appear something like this:
What You Can See
Blue spheres are bitcoin transactions. Red cubes are bitcoin addresses. The cubes and spheres are nodes in graph terminology. You can see lines with arrows joining the nodes. These lines are called edges in graph terminology. The arrow direction shows the flow of bitcoin. The billboarded text labels near the edges show the flow of bitcoin measured in milli-bitcoin.
A bitcoin transaction is nothing more than a flow of bitcoin from one or more addresses (the inputs) to one or more addresses (the outputs). An address can be both an input and an output for a transaction (the address is said to be “receiving change”). In this case the arrow on the edge connecting the nodes will be bi-directional.
Sources of Data
When run directly, the
world scene defaults to being online showing some specific bitcoin transaction data sourced from blockchain.info. The
world scene can also be run via the
To do this, open the
loginscreen scene in the same folder and run it. From here you can specify a start address or transaction, and you can choose to run offline using demo data only. When run with demo data, the application does not need internet access and it won’t try to get data that is outside the test data set.
How to Interact
If the build target is Windows/Mac/Linux then it is possible to look and fly around in the game window in the editor using mouse and WASD keys (and QE for up down). If the build target is Android then the controls are different because the Unity editor tries to emulate VR mode (press shift or alt and use mouse to do VR-like head movements).
On all platforms, the little white dot in the centre of the screen is your crosshair:
The crosshair shows what you are looking at. A node turns white when it is gazed at, and the crosshair will expand into a circle if you can interact with that item.
Move the crosshair (the little white dot) until it is over the address or transaction you want to know more about. The item will turn white, and the crosshair dot will expand into a circle if the item can be interacted with. Then click or tap to see more edges associated with that node.
Some addresses have many thousands of transactions and some transactions involve many hundreds of addresses. Instead of trying to display all of these edges at once, the application starts by showing only the first few edges. Then you can display more edges by gazing at the address or transaction and tapping the screen or clicking the mouse
You can see a complete list of usage controls here.
See the developer wiki for complete documentation on:
- How the engine works.
- How to use it in your own applications.
- How to make changes to the engine.
- SimpleJSON code is by Markus Göbel.
- Some Force Directed Graph code is inspired by work from Bamfax.
- Some camera control code came from Jason Graves.
- The wonderful skybox in the Ocean sample (prominent in most every application screenshot) was kindly provided by the most excellent people at 70-30.de.
All content licensed under MIT, except:
