Network

FPS Sample

FPS Sample

Thanks for checking out our project!

This is a fully functional, first person multiplayer shooter game made in Unity and with full source and assets. It is in active development by a small team from Unity Technologies. Our goals are to test and showcase new features in Unity and to be of use for teams who can bootstrap on top of this, extract useful bits and tools or simply learn from and get inspired by what is in the project.

Visit our landing page for more high level information about the project. Or reach out in the forum.

The project is using a number of new technologies: We use the new HD Render Pipeline, meaning all content has been authored for HDRP. We are also using the new network transport layer as well as the Entity-Component System. In the case of ECS, we have primarily adopted the “ECS-pattern” and use it in hybrid mode with a lot of regular components. As more and more features of Unity become available in ECS-aware versions, we will migrate to them.

Status and prerequisites

Current status at a glance:

Unity version: 2018.3 beta 12
Platforms    : Windows (client and server) and Linux (server only)

Getting the project

To get the project folder you need to clone the project. Note, that

IMPORTANT: This project uses Git Large Files Support (LFS). Downloading a zip file using the green button on Github will not work. You must clone the project with a version of git that has LFS. You can download Git LFS here: https://git-lfs.github.com/.

The project size is about 18GB (size of Assets folder). Your cloned repository will be almost double of that due to git state. If it is much smaller, you most likely did not have LFS when you cloned.

Getting the right version of Unity

Once you have cloned the repository, you should install the version of Unity that is listed above in the prerequisites section. Make sure you include windows standalone support in your installation.

Opening the project for the first time

The following guide should take you to the point where you can hit play in the editor and run around the levels and also build a standalone version of the game and use it to spin up a server and connect a few clients to it.

The first time you open the project you need patience! It takes a while to import all the assets.

NOTE: Due to a bug in Unity 2018.3 beta, you have to take the following steps right after the initial import:

  1. Search for t:model in the Project search field. Select them all, right click and reimport them.
  2. Search for Firstperson_Projection in the Project search field. Select the 4 shaders, right click and reimport them.

One day soon we will remove this note and there will be cake.

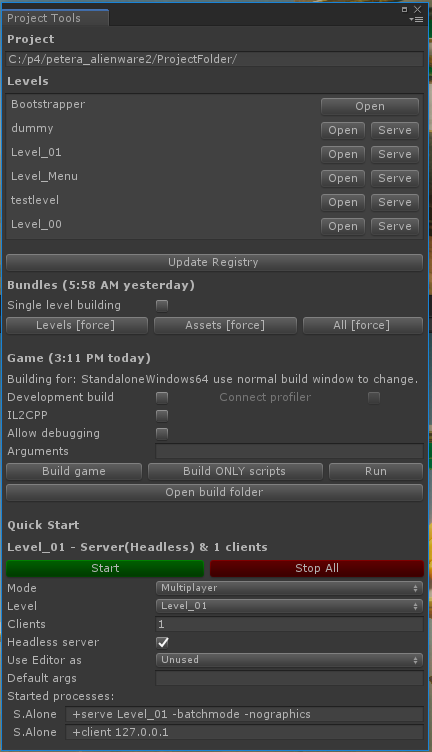

Once the editor is ready, open the Project Tools Window by navigating to FPS Sample > Windows > Project tools.

It should look like this:

Keep this window docked as you will use it a lot. From here you can open the levels, build assetbundles and build standalone players. Because this is a multiplayer game you will need to work with standalone players a lot.

Trying out preview mode

From the Project Tools window click Open next to Level_00. Our levels are split into multiple scenes but using these buttons will ensure you open all the scenes that make up a level.

Once opened, try entering playmode in the editor. You should now be able to run around in the level. This is what we call ‘preview mode’. Here you can move around and test your level, player traversal and weapons.

Building bundles and standalone

Leave playmode again and in the Project Tools window, verify that it says “Building for: StandaloneWindows64…” under the Game headline. If it does not, change your platform in the usual way, using File > Build settings window.

Now, in the Project Tools window in the bundles section, press All [force].

This will build the levels and other assets into assetbundles. The first time around this will take a significant amount of time as all shaders have to be compiled.

Once you have built the bundles, hit Build game in the game section. This builds the standalone player. Again, first time will be slow.

NOTE: Due to a limitation in Unity 2018.3, you have to look out for errors like this Maximum number (256) of shader keywords exceeded, keyword <KEYWORD_NAME> will be ignored. and similar. If you get these, you can close and open Unity and then try and build again. The errors are relatively harmless but can lead to graphical artifacts as some shaders will have wrong keywords.

Using the quick start launcher

When this is done, locate the “Quick start” section at the bottom of the Project Tools window. Fill out the settings like this:

Mode: Multiplayer
Level: Level_00
Clients: 1
Headless: Checked
Use editor: Unused

Now hit the green Start button. This should launch two processes: one is a standalone, headless server, the other is a client that will attempt to connect to the server.

Congratulations! If you made it this far you should celebrate a bit!

Development of FPS Sample, Contributions etc.

As of today, internally development of the project happens on Perforce. We push versions of the project to github from there. As we do that we will update the CHANGELOG with highlights but the full history is not carried over.

For practical reasons we are not able to take larger contributions just now. But bugfixes are very welcome! Read the guidelines for contributing in CONTRIBUTING.

More information

Check out the Documentation folder for more information. In particular, the Getting Started Guide is a good place to, well, start.

License

Our intention is that you can use everything in this project as a starting point or as bits and pieces in your own Unity games. For the legal words, see LICENSE.md.
